9. Measurement of solid sample
(3)-3 Attaching polarizing eyepiece
to NAR-2T

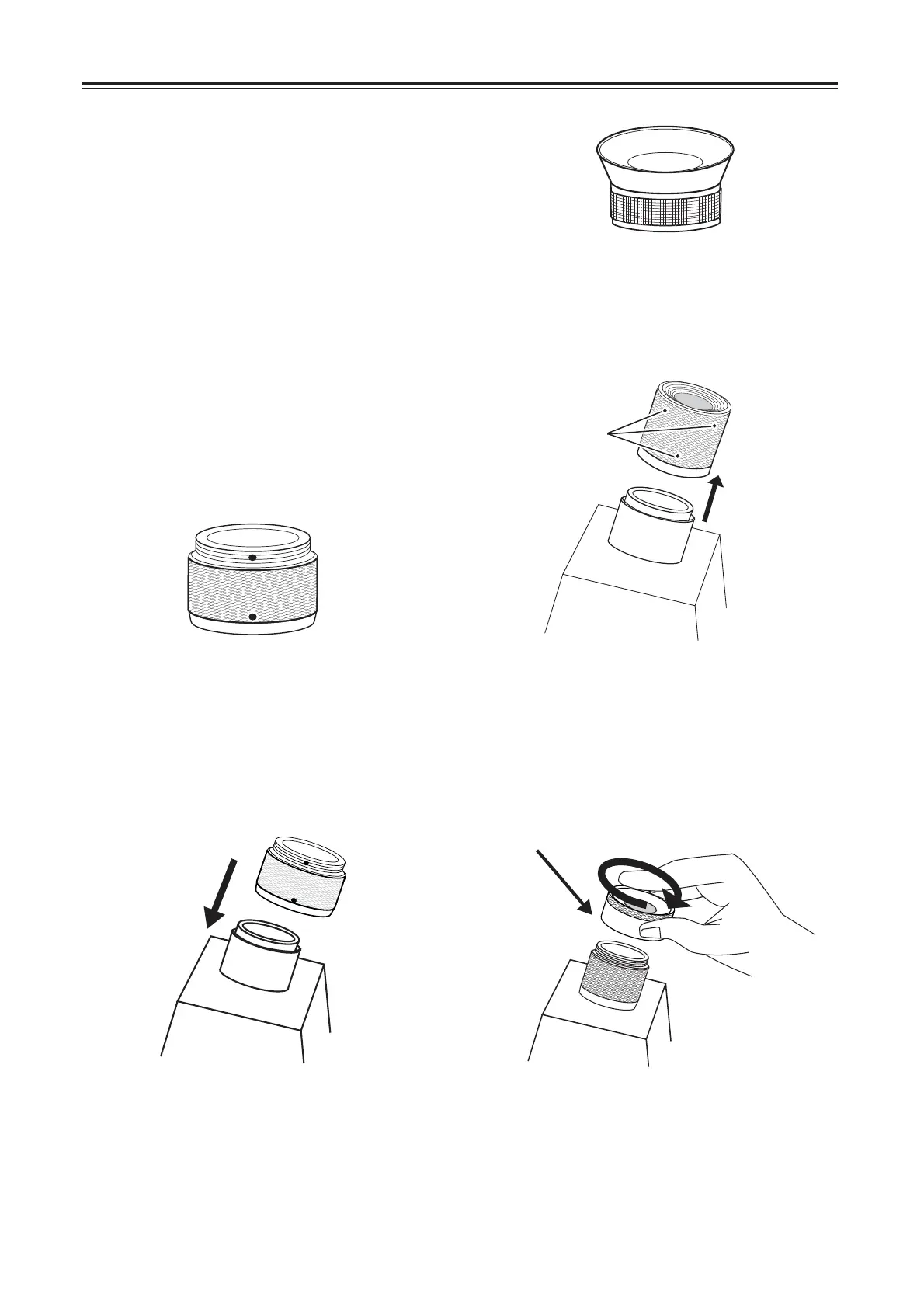

Remove the rubber hood (Fig. 9-7).
Loosen all 4 screws, then pull up and
remove the part (Fig. 9-8).
a)
b)
Fig. 9-8
Fig. 9-7
Fit the eyeypiece (Fig. 9-9) comes with the
polarizing eyepiece on the Abbe
Refractometer (Fig. 9-10), and tighten 4
screws.
Fit the polarizing eyepiece on the body
tube (Fig. 9-11).
c)
d)
Fig. 9-10
Fig. 9-11
Polarizing eyepiece
Fig. 9-9
Screws
