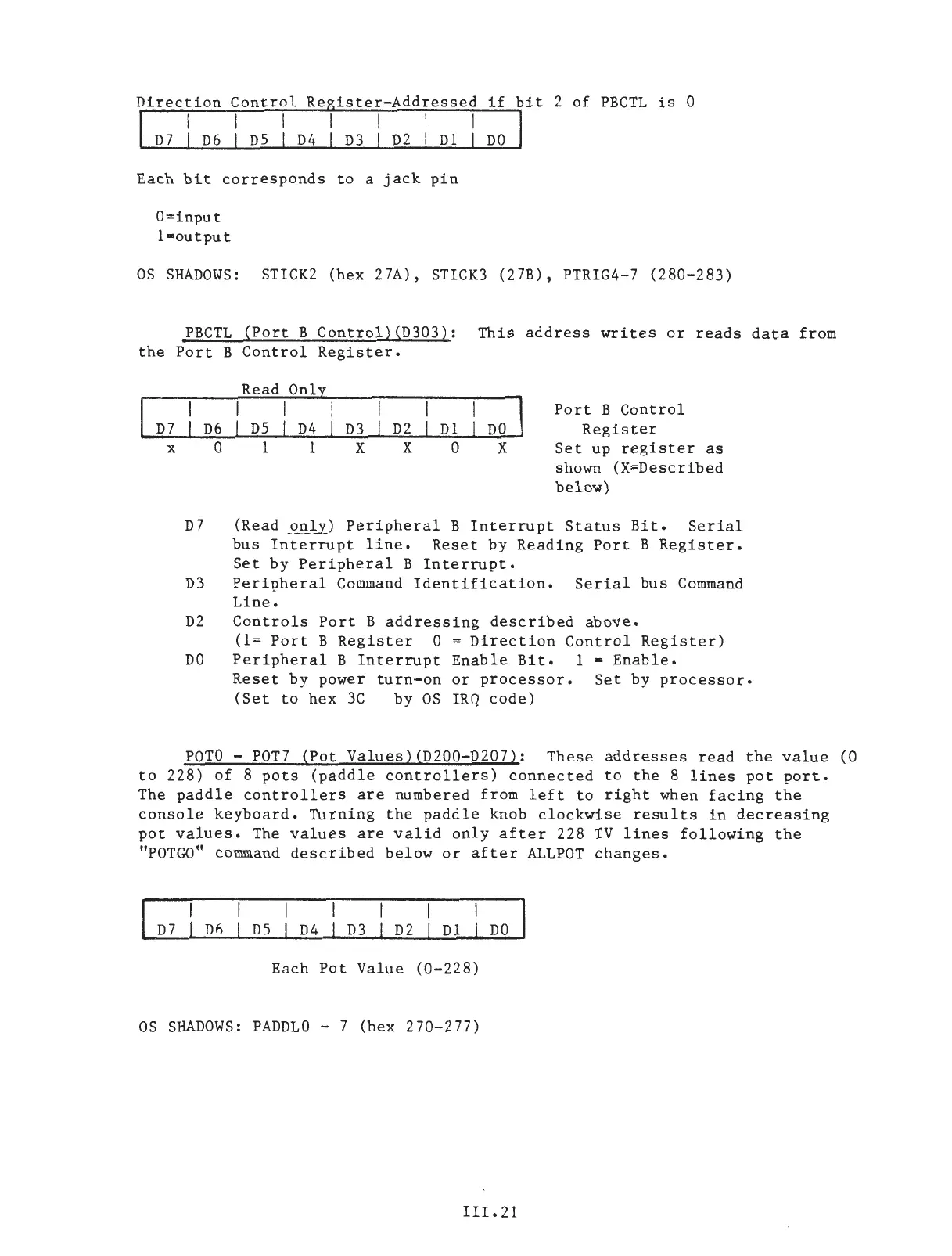

Atari 400 Hardware Manual

Control Re ister-Addressed if bit 2 of PBCTL is 0
I I I I I I
Each bit corresponds to a jack pin
O=input
1=output
OS SHADOWS: STICK2 (hex 27A), STICK3 (27B), PTRIG4-7 (280-283)
PBCTL (Port B Control)(D303): This address writes or reads data from
the Port B Control Register.
D7
X
Read Onl:z::
I I I
Port B Control
D6
I
D5
I
D4
I
D3
D2
D1 DO Register
0 1 1 X X
0
X Set up register as
shown (X=Described
below)
D7 (Read only) Peripheral B Interrupt Status Bit. Serial
bus Interrupt line. Reset by Reading Port B Register.
Set by Peripheral B Interrupt.
D3 Peripheral Command Identification. Serial bus Command
Line.
D2 Controls Port B addressing described above.
(1= Port B Register 0 = Direction Control Register)
DO Peripheral B Interrupt Enable Bit. 1 = Enable.
Reset by power turn-on or processor. Set by processor.
(Set to hex 3C by OS IRQ code)
POTO- POT7 (Pot Values)(D200-D207): These addresses read the value (0
to 228) of 8 pots (paddle controllers) connected to the 8 lines pot port.
The paddle controllers are numbered from left to right when facing the
console keyboard. Turning the paddle knob clockwise results in decreasing
pot values. The values are valid only after 228 TV lines following the
"POTGO" command described below or after ALLPOT changes.
D7 D6
D5
D4 D3
D2
D1 DO
Each Pot Value (0-228)
OS SHADOWS: PADDLO - 7 (hex 270-277)
III.21

Atari 400 Specifications

General

Manufacturer	Atari
Model	400
Type	Home Computer
Release Year	1979
CPU	MOS Technology 6502
CPU Speed	1.79 MHz
ROM	10 KB
Operating System	Atari OS
Keyboard	Membrane keyboard
RAM	8 KB (expandable to 48 KB)
Graphics	ANTIC and GTIA chips
Sound	4 channels
Display	RF output for connection to TV
Storage	Optional cassette tape drive or floppy disk drive
Ports	Cartridge
Display Resolution	320x192 (16 colors)
