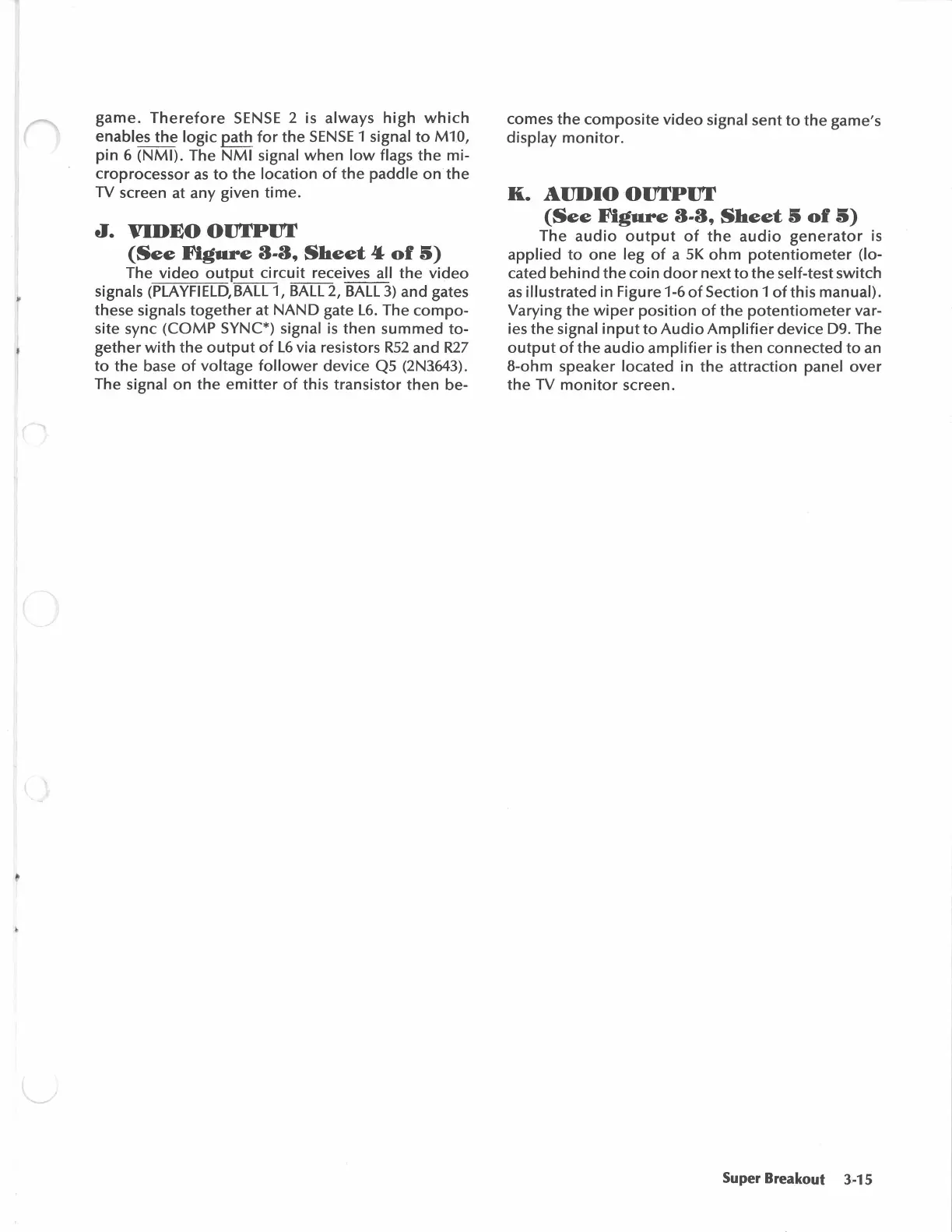

game.
Therefore
SENSE
2 is always
high
which
enables
the
logic
path
for
the
SENSE
1 signal
to
M10,
pin
6
(NMI).
The
NMI
signal
when
low
flags
the
mi-
croprocessor
as
to
the
location
of
the
paddle
on
the
TV screen at any given
time.
J.
VIDEO
OIJTPIJT
(See
Figure
3-3,
Sheet
4
of
5)
The
video
output
circuit
receives all
the
video
signals (PLAYFIELD, BALL 1, BALL 2, BALL
3)
and gates
these
signals
together
at
NANO
gate
L6.
The
compo-
site sync
(COMP
SYNC*) signal
is
then
summed
to-
gether
with
the
output
of
L6
via resistors
R52
and
R27
to
the
base
of
voltage
follower
device
QS
(2N3643).
The
signal
on
the
emitter
of
this
transistor
then
be-
comes
the
composite
video
signal sent
to
the
game's
display
monitor.
Ii.
AUDIO
OIJTPIJT
(See
Figure
3-3,
Sheet
5
of
5)
The
audio
output
of
the
audio
generator
is
applied
to
one
leg
of
a
SK
ohm
potentiometer
(lo-
cated
behind
the
coin
door
next
to
the
self-test
switch
as
illustrated in Figure 1-6
of
Section 1
of
this
manual).
Varying
the
wiper
position
of
the
potentiometer
var-
ies
the
signal
input
to
Audio
Amplifier
device
09.
The
output
of
the
audio
amplifier
is
then
connected
to
an
8-ohm
speaker
located
in
the
attraction
panel
over
the
TV
monitor
screen.
Super Breakout J.-15
