ATCOM IPPBX IP08 User Manual

IPPBX IP08 User Manual
~ 5 ~ ATCOM TECHNOLOGY CO., LIMITED
NOTE: It’s recommended to re-set IP address of IPPBX via WAN at the first time, Since DHCP server on LAN
port is enabled by default, Other DHCP client enabled devices in the network may obtain IP from IPPBX rather
than real DHCP server. And then access IPPBX via LAN after configuring LAN settings.

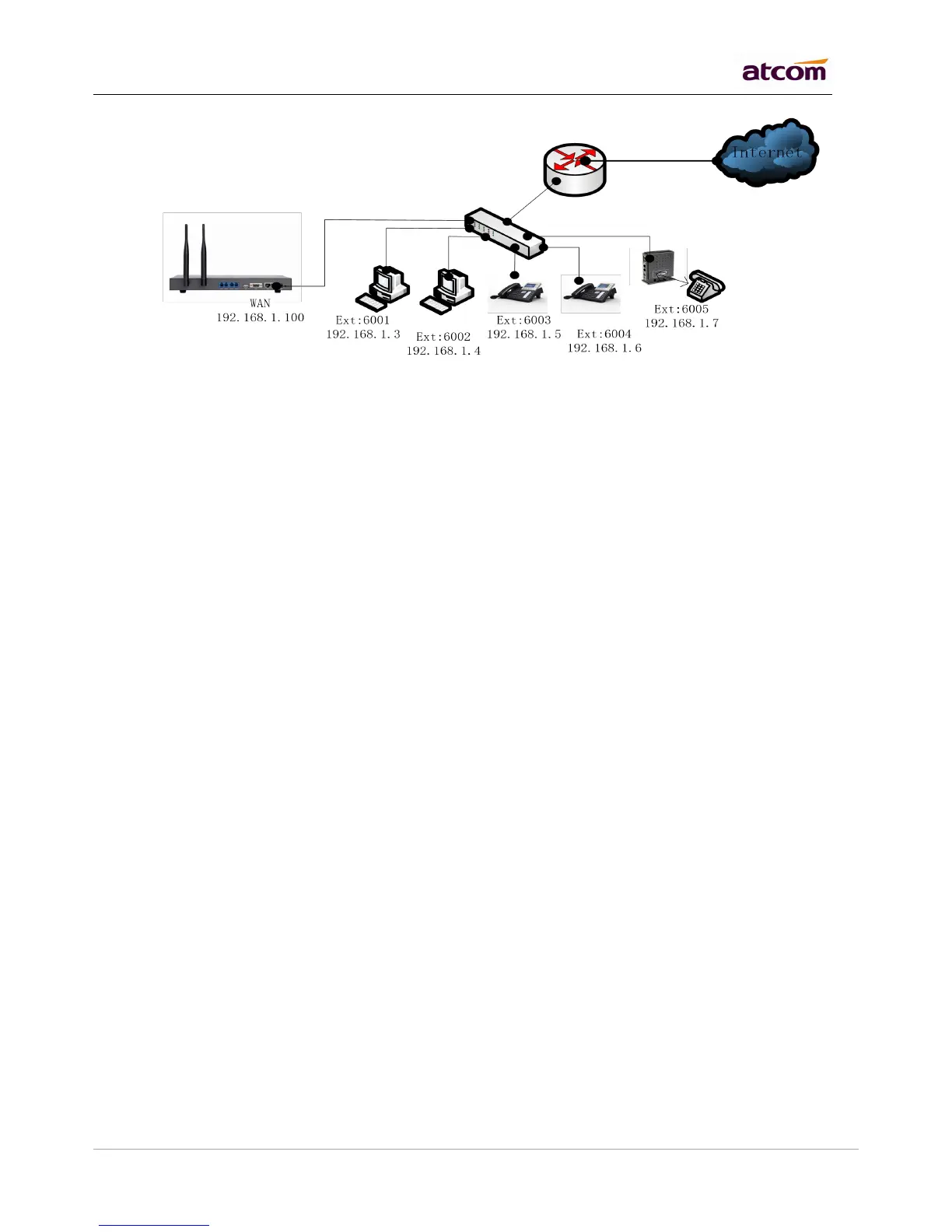

1) Connect IPPBX to your PC directly or through switch.
Make sure IP address of your PC is in network 192.168.1.0/255.255.255.0, if not, you need to appoint an IP
address for your PC, for example, 192.168.1.3
2) Login IPPBX as administrator via WEB GUI
User: admin
Password: atcom
NOTE: Language option will be accomplished in future versions, currently, only English is supported. So it’s not
selectable now.
3) Go to Network Settings ->WAN.
Re-set IP of WAN port.
4) Go to Network Settings -> LAN.
Re-set IP of LAN port.

ATCOM IPPBX IP08 Specifications

General

Brand	ATCOM
Model	IPPBX IP08
Category	PBX
Language	English
