Details mode by mode

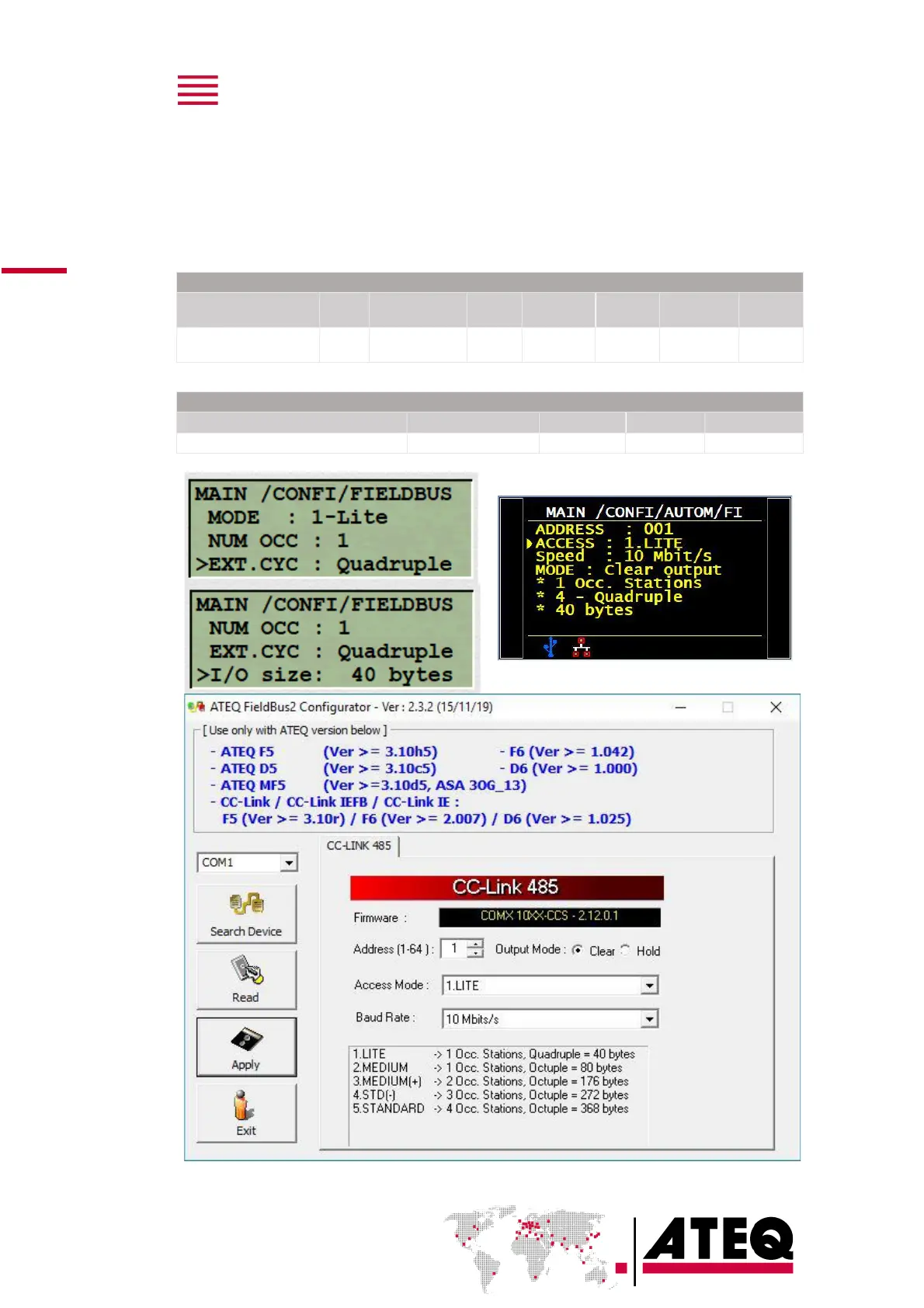

Mode 1.LIGHT: 1 occupied station, Quadruple (40 byte)
For the digital input/output and the real time measurements.
— RX/RY000-03F(h) = 4 words
— WRr/WRw00-0F(h) = 16 words
READ
Echo / Error
Relay
status
Real time
measurements
Results
Extended
menu bits
Function
bits
Parameters
Program
name
Start, Reset, Autozero,
Select Prog
YES
YES
NO
NO
NO
NO
NO
WRITE
Commands
Extended menu bits
Function bits
Parameters
Program name
Start, Reset, Autozero, Select Prog
NO
NO
NO
NO
