ATEQ D6 Series User Manual

7 / 93
FG_D6_CCLINK_EN_02 / 2020-06-17
Hardware installation
Connect your ATEQ equipment to the CC-Link network using its CC-Link connectors and compatible
cables.
HARDWARE CONFIGURATION
Your device has a CC-Link internal board and two CC-Link connectors.
The CC-Link internal board is located inside your device.
Your device has two M12 D coded type connector – 4 pins female connector.
For more information on your ATEQ equipment, refer to the Quick Start Manual.

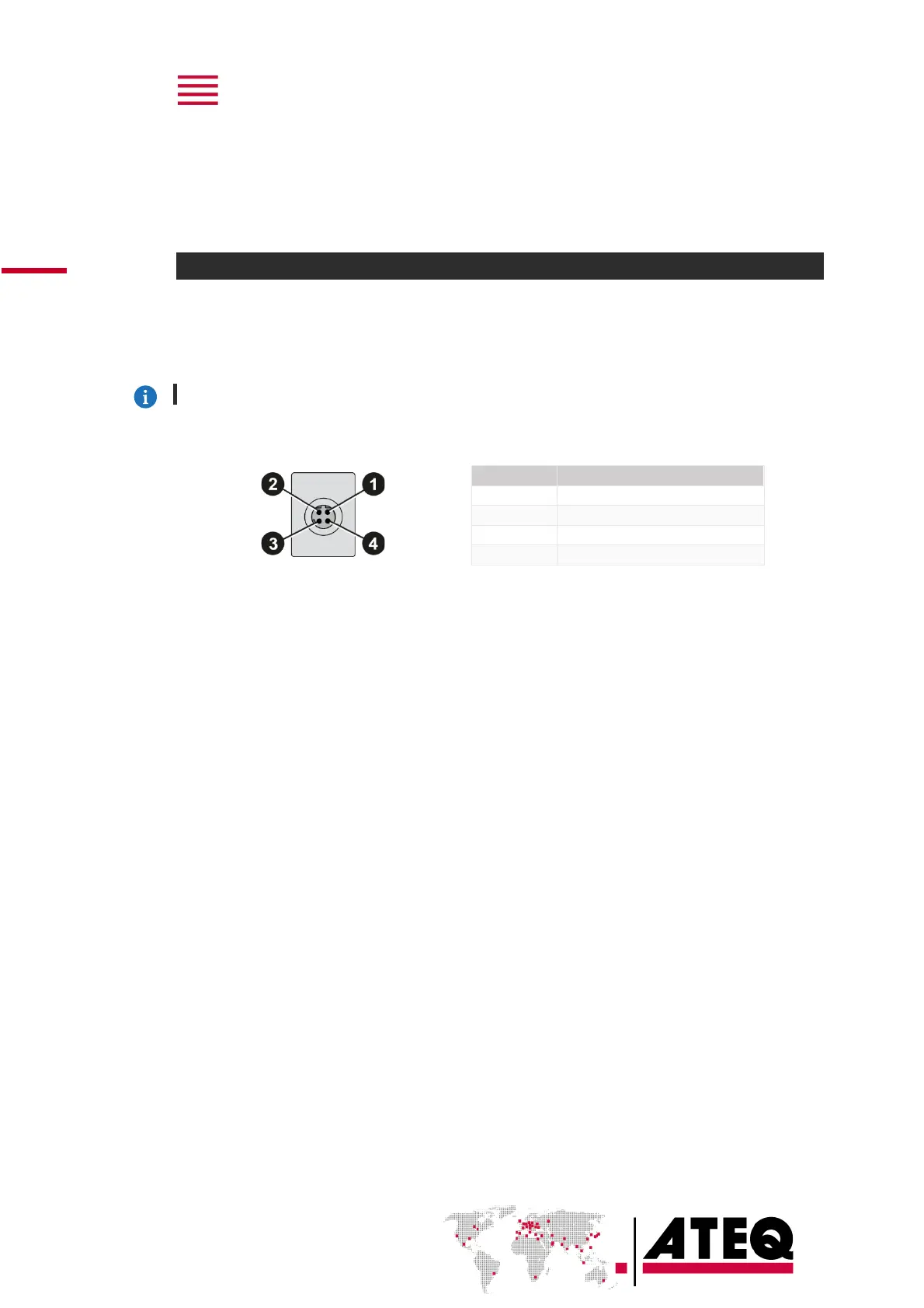

M12 D coded type connector – 4 pins female connector
Pin number
Signal
1
DA (brown)
2
DB (white)
3
DG (blue)
4
SLD (black)
