ATEQ D670 Quick Start Guide

QSG_D670_389.00_EN_01_2020-06-18
16/42

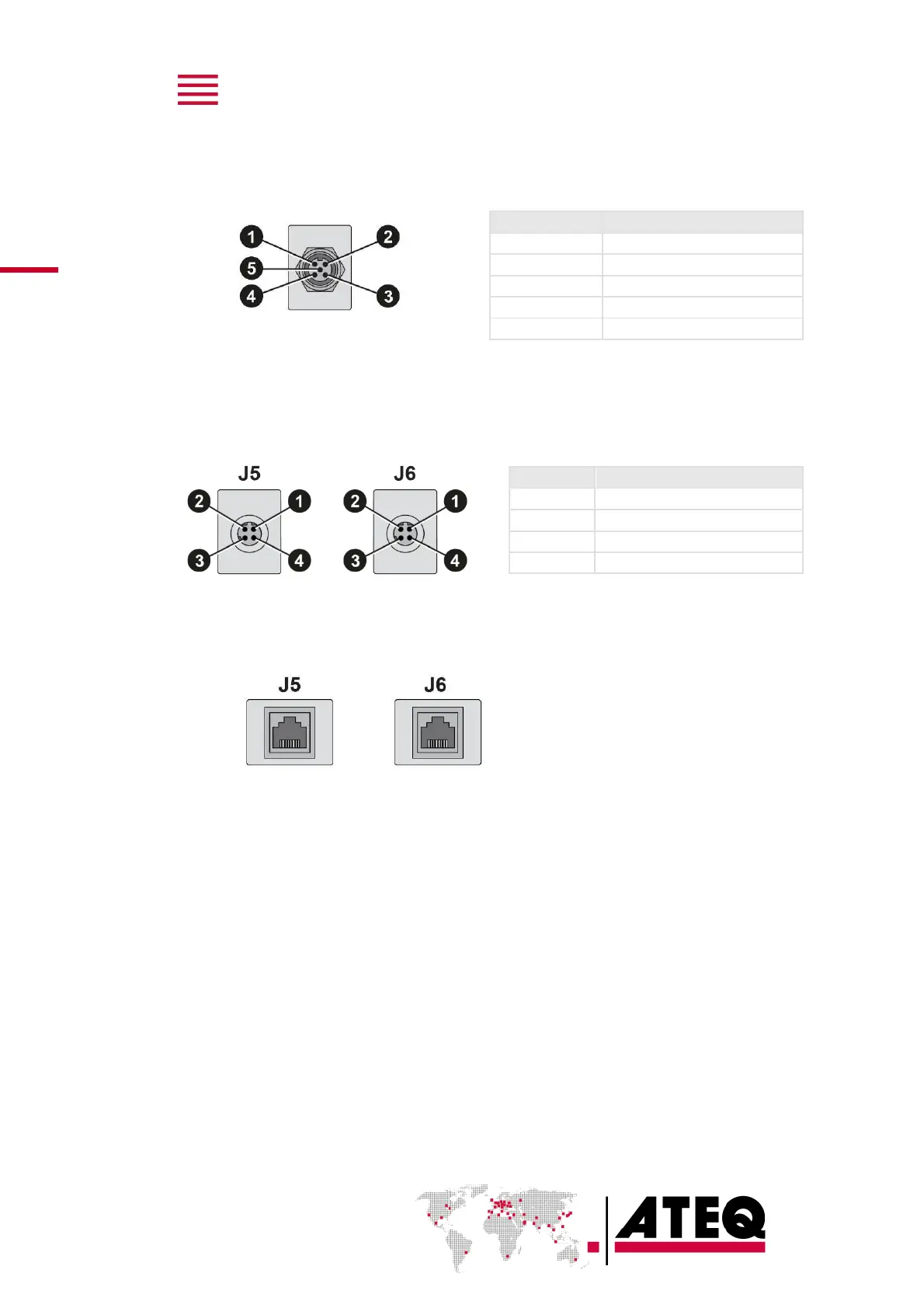

M12 type connector - 5 pins female connector (J6) (Devicenet
output)
For connection to other ATEQ devices.
Profinet connectors (J5 + J6) (option)
M12 D coded type connector - 4 pins female connector (J5 + J6)
Ethernet connector (J5 + J6) (option)
Standard connection Ethernet TCP / IP protocol.
One of these network protocols is available:
— Ethernet IP
— Profinet
— Ethercat
Pin number
Signal
1
Drain
2
V+
3
V-
4
CAN_H
5
CAN_L
Pin number
Signal
1
Ethernet Tx + (Transmit Data +)
2
Ethernet Rx + (Receive Data +)
3
Ethernet Tx - (Transmit Data -)
4
Ethernet Rx - (Receive Data -)
