PNEUMATICS CONFIGURATION
According to the part under test and the pressure range, different configurations can be used.
M1 and M2 connectors are always fitted with caps except for external capillary option.

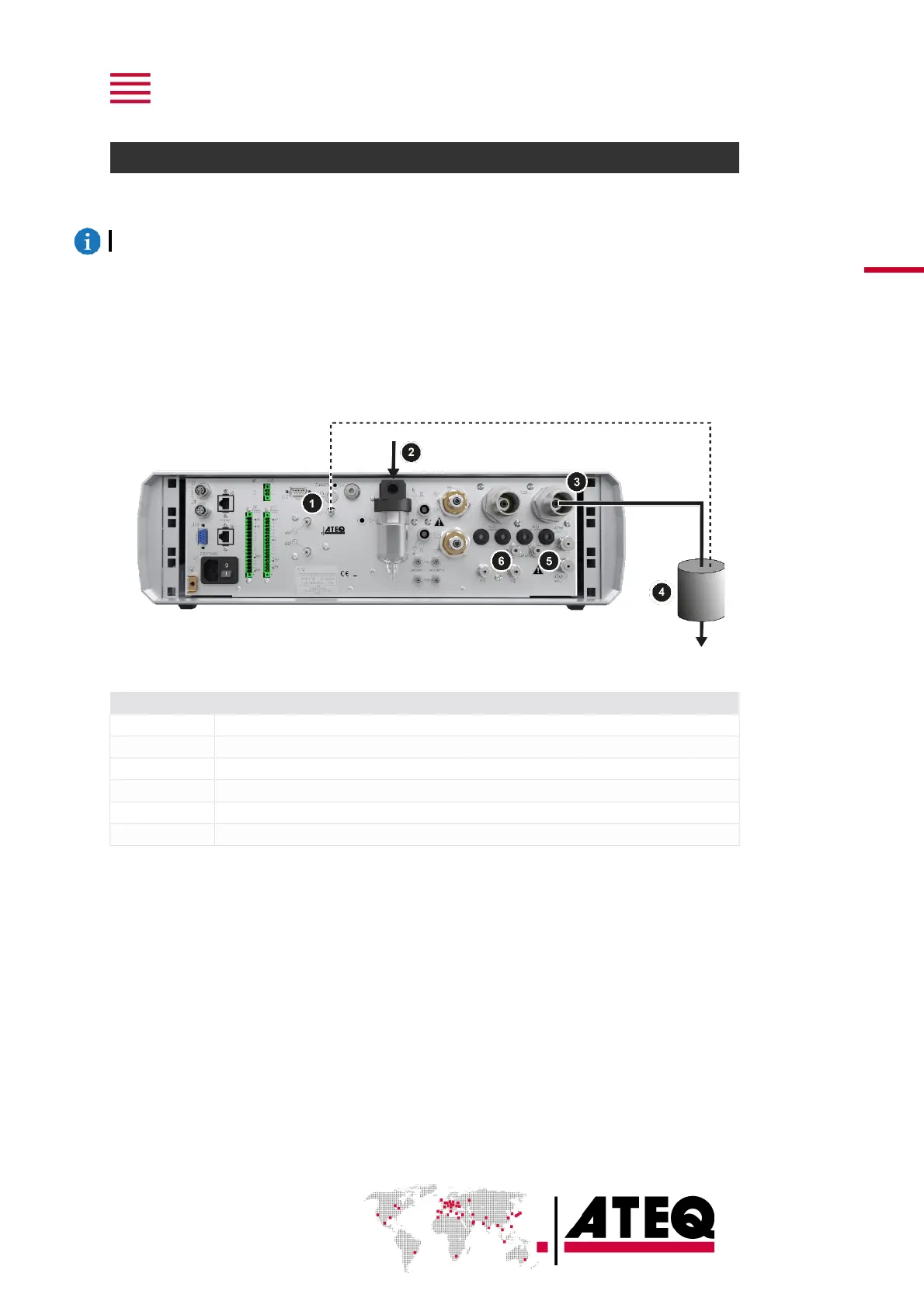

Direct mode - Internal back pressure - until 0.5 MPa – 3U
case
This configuration is used for direct mode at medium pressure range.
Connection
Option / description
Air supply to 2
Connection of the air supply to the filter input (0.6 MPa)
3 to 4
Connection of the test output to the part under test (direct mode option)
4 to ATM
Connection of the part under test to the atmosphere
4 to 1
Connection of the part to test to P connector (external back pressure option)
5 to ATM
Connector left free to the atmosphere
6 to ATM
Connector left free to the atmosphere
