ATEQ D670 Quick Start Guide

QSG_D670_389.00_EN_01_2020-06-18
32/42
Navigation keys
The navigation keys are used to select menus/options and change parameter values.
Smart key
Smart key is a programmable key that provides direct access to a function
selected by the user.
This key is programmable through the MAIN MENU screen:
MAIN MENU > CONFIGURATION > MISCELLANEOUS > SMART KEY
DISPLAY

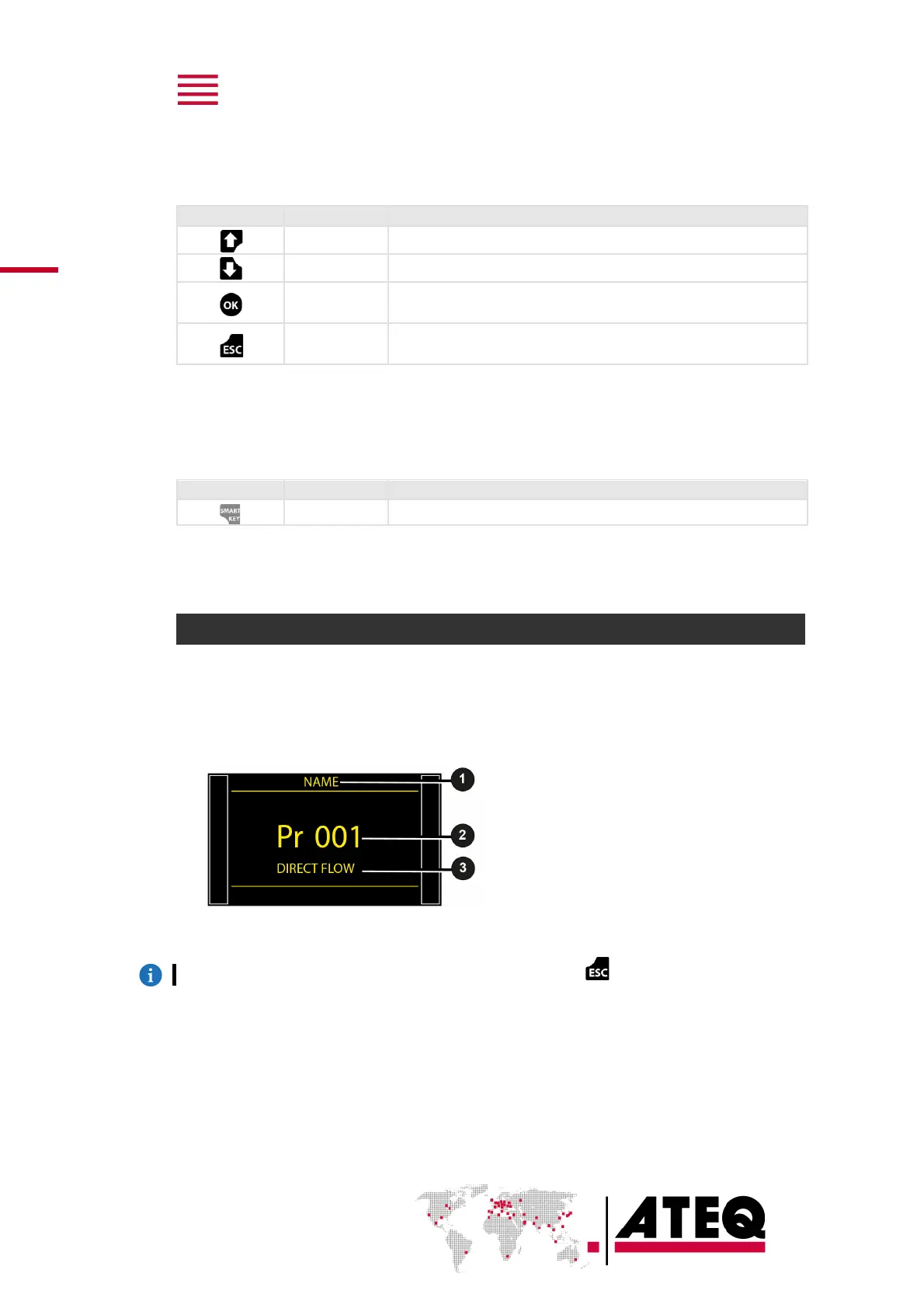

The device uses 4 main screens.
The Program screen
Use the Program screen to select a test program.
1 Current program name (here
NAME)
2 Current program number (here
001)
3 Test type (here DIRECT FLOW)
Access at startup of the device or by pressing several times Esc .
Key
Name
Function
Up key
Scrolls up or increases numerical values.
Down key
Scrolls down or decreases numerical values.
OK
Returns to the MAIN MENU screen or opens menus and options,
validates parameters.
Esc
Returns to previous screen (until the Program screen), escapes
without modifying parameters.
Key
Name
Function
Smart key
Starts a measurement cycle (default, programmable).
