ATEQ D670 Quick Start Guide

QSG_D670_389.00_EN_01_2020-06-18
24/42

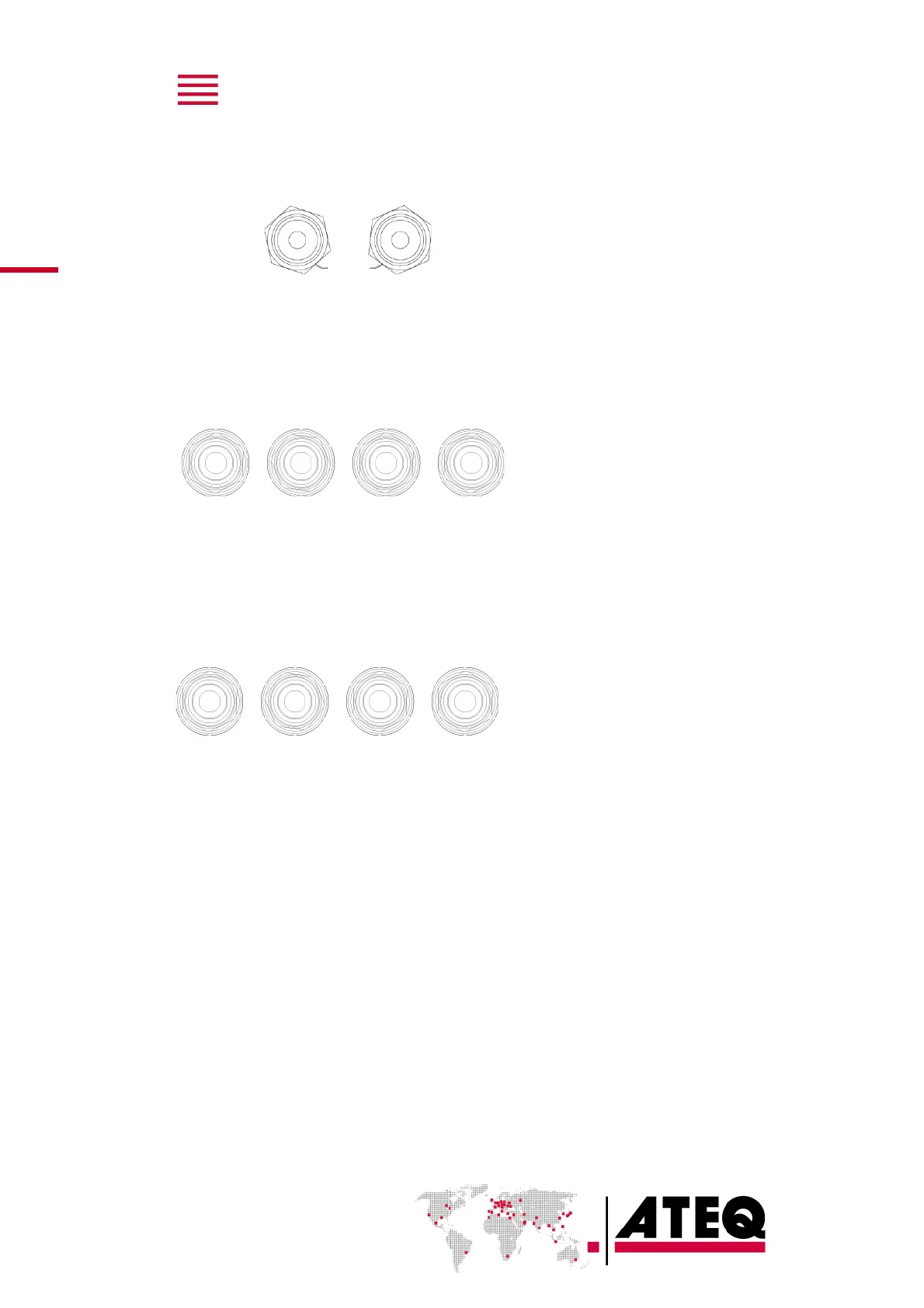

ATM 4 mm connector
This connector needs to be open to atmosphere.
Instant fitting: 4 mm diameter.
ATM 6 mm connector
This connector needs to be open to atmosphere. The place depends on the internal
mounting options.
Instant fitting: 6 mm diameter.
Pneumatic output for bypass option
This connector is used to connect the device to an external valve for bypass option. The
place depends on the internal mounting options.
Instant fitting: 6 mm diameter.
ATM
PILOT
O.6 MPa
PILOT
O.6 MPa
PILOT
O.6 MPa
PILOT
O.6 MPa
