ATEQ D670 Quick Start Guide

QSG_D670_389.00_EN_01_2020-06-18
23/42

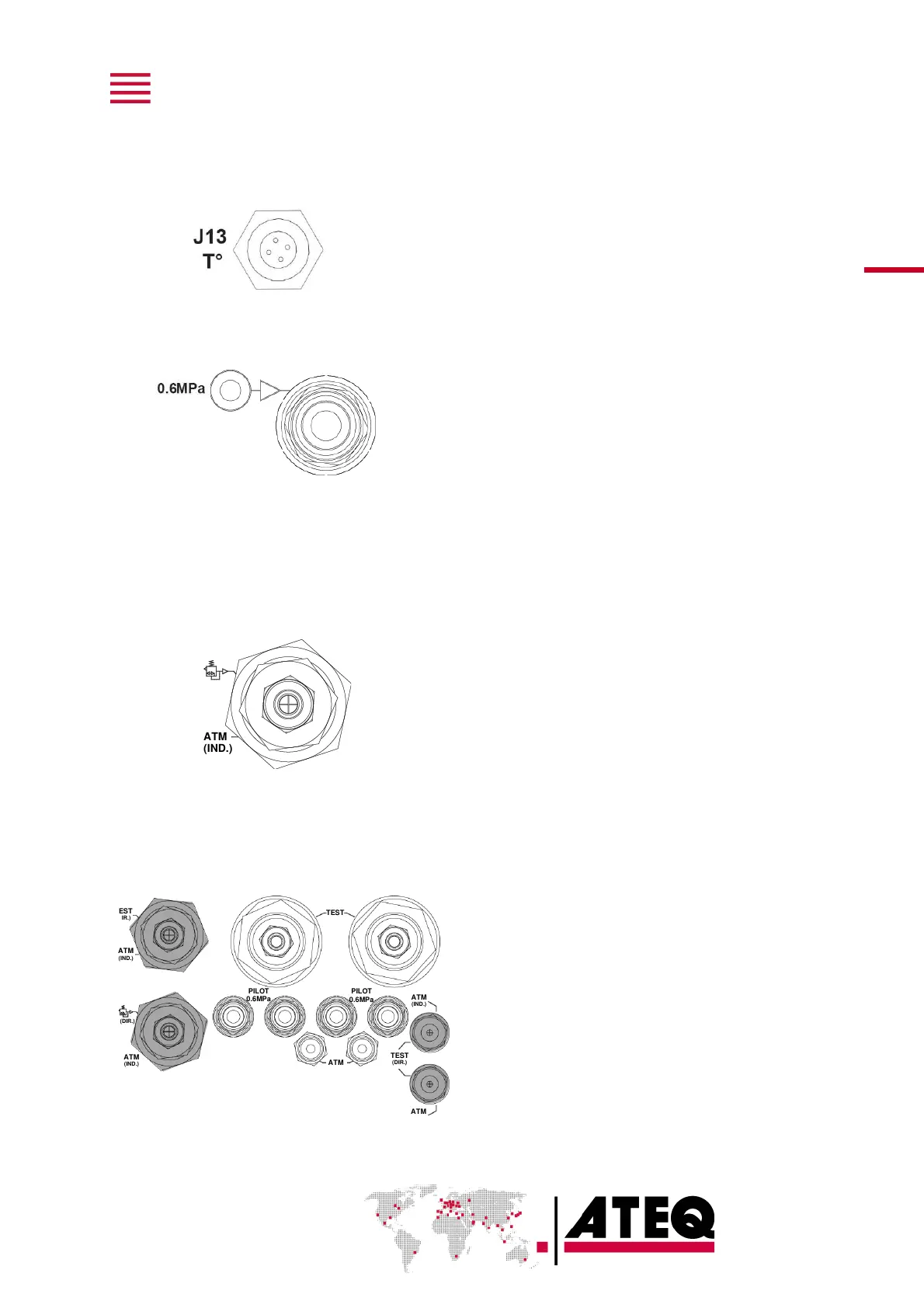

Temperature probe connector
The J13 connector is used for tests with external capillary option.
Air supply input for options
Instant fitting: 6 mm diameter
— 0.6 MPa air supply input for internal
valves for 1 MPa range
— Vacuum input for vacuum range.
Metallic fitting: 4/6 mm diameter
— Regulator air supply for 1.1 to 2
MPa range indirect mode.
Regulator output connector
This connector can be used as regulator output in indirect mode, for bypass option or
external capillary option.
Instant fitting: 8, 10 or 12 mm diameter
for 1 MPa range maximum.
Metallic fitting: 4/6 mm or 6/8 mm
diameter for 2 MPa range (indirect
mode).
Capillary output connector
This connector needs to be open to atmosphere for indirect mode. This output connector
place depends on the internal mounting options.
Instant fitting: 8, 10 or 12 mm diameter.
ATM
(IND.)
(DIR.)
TEST
TEST
(DIR.)
ATM
(IND.)
ATM
(IND.)
ATM
PILOT
0.6MPa
PILOT
0.6MPa
ATM
(IND.)
TEST
(DIR.)
(DIR.)
ATM
(IND.)
