ATEQ D670 Quick Start Guide

QSG_D670_389.00_EN_01_2020-06-18
22/42

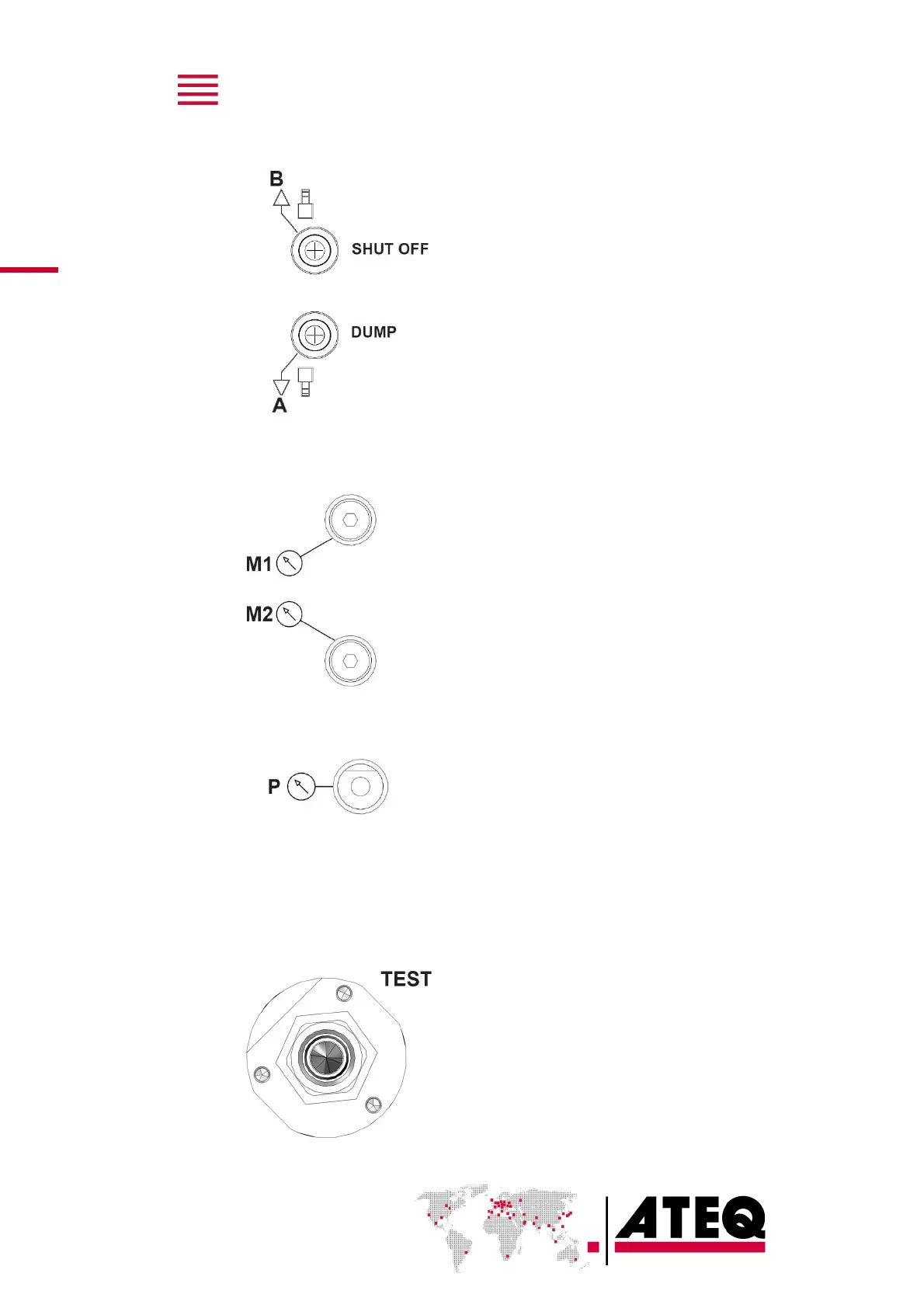

Pneumatic outputs 0.6 MPa
DUMP: pneumatic output to connect
to an external valve for dump option.
SHUT OFF: pneumatic output to
connect to an external valve for shut
off option.
A and B: automatic connectors option.
These connectors are used to drive
pneumatic caps on the part under
test.
External capillary connectors
M1 and M2 connectors are pneumatic
inputs used for external capillary
connection (option).
External pressure monitoring connector
The P connector is a pneumatic input
used for external pressure monitoring
connection (option).
Test connector
The test connector is used to connect the device to the part to test for both direct and
indirect modes. The TEST output connector place depends on the internal mounting and
options.
Metallic fitting diameter options (in mm):
— 4/6
— 6/8
— 8/10
— 15
— 20
— 25
