ATEQ D670 Quick Start Guide

QSG_D670_389.00_EN_01_2020-06-18
19/42

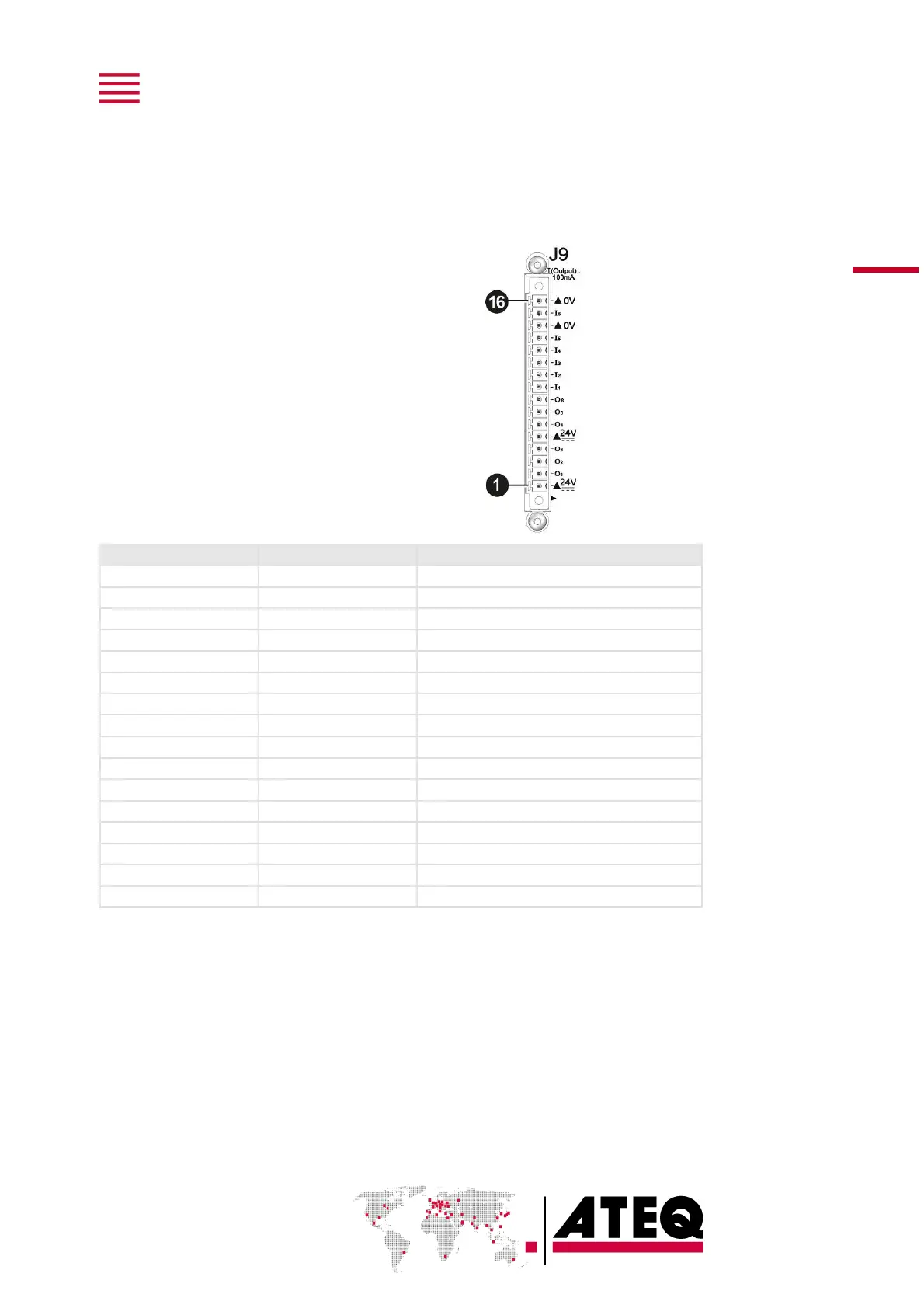

Valve codes and auxiliary outputs board connector (J9)
(option)
Characteristics
— Outputs:
• 24 V DC - 100 mA max per output.
— Inputs:
• Activation: + 24 V DC.
Pin number
Inputs / outputs
Description
1
+ 24 V DC
Common (outputs 1, 2,3)
2
Output 1
Open collector
3
Output 2
Open collector
4
Output 3
Open collector
5
+ 24 V DC
Common (outputs 4, 5, 6)
6
Output 4
Open collector
7
Output 5
Open collector
8
Output 6
Open collector
9
Input 1
Programmable input
10
Input 2
Programmable input
11
Input 3
Programmable input
12
Input 4
Programmable input
13
Input 5
Programmable input
14
0 V
Ground
15
Input 6
Programmable input
16
0 V
Ground
