ATEQ D670 Quick Start Guide

QSG_D670_389.00_EN_01_2020-06-18
30/42

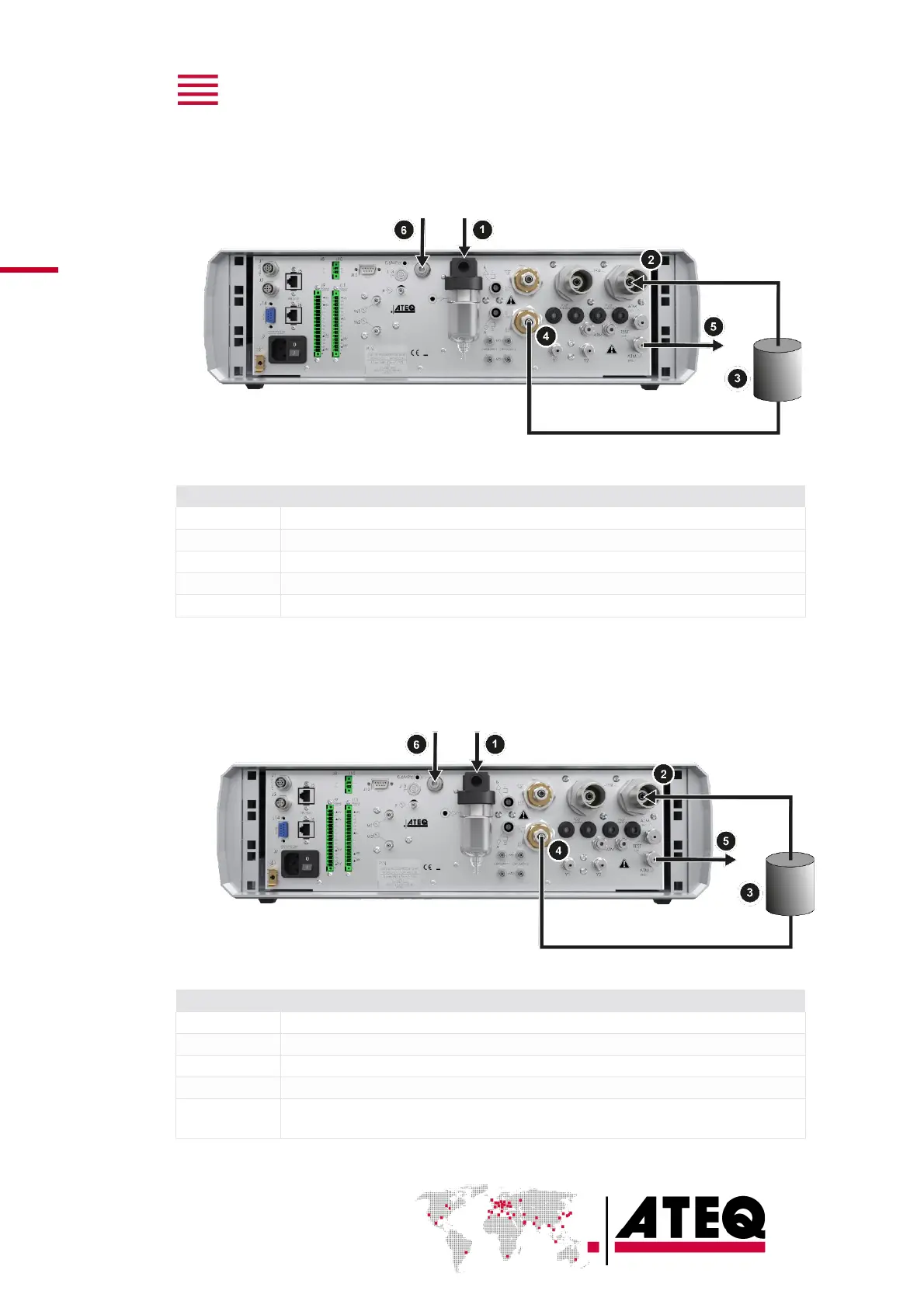

Indirect mode - 1 MPa range – 3U case
This configuration is used for indirect mode at high pressure range.
Indirect mode - 2 MPa range – 3U case
This configuration is used for indirect mode at high pressure range.
Connection
Option / description
Air supply to 1
Connection of the air supply to the filter input (0.6 MPa)
4 to 3
Connection of the regulator output to the part under test
3 to 2
Connection of the part to the test input (indirect mode option)
5 to ATM
Connector left free to the atmosphere
Air supply to 6
Connection of the air supply to the regulator input (instrument pressure range + 0.1 to
0.2 MPa)
Connection
Option / description
Air supply to 1
Connection of the regulator air supply to the filter input (1.2 MPa)
4 to 3
Connection of the regulator output to the part under test
3 to 2
Connection of the part to the test input (indirect mode option)
5 to ATM
Connector left free to the atmosphere
Air supply to 6
Connection of the air supply to the valves pilot input (0.6 MPa)
