MR-36300C-U Quick start manual ATEQ F670 Page 11/25

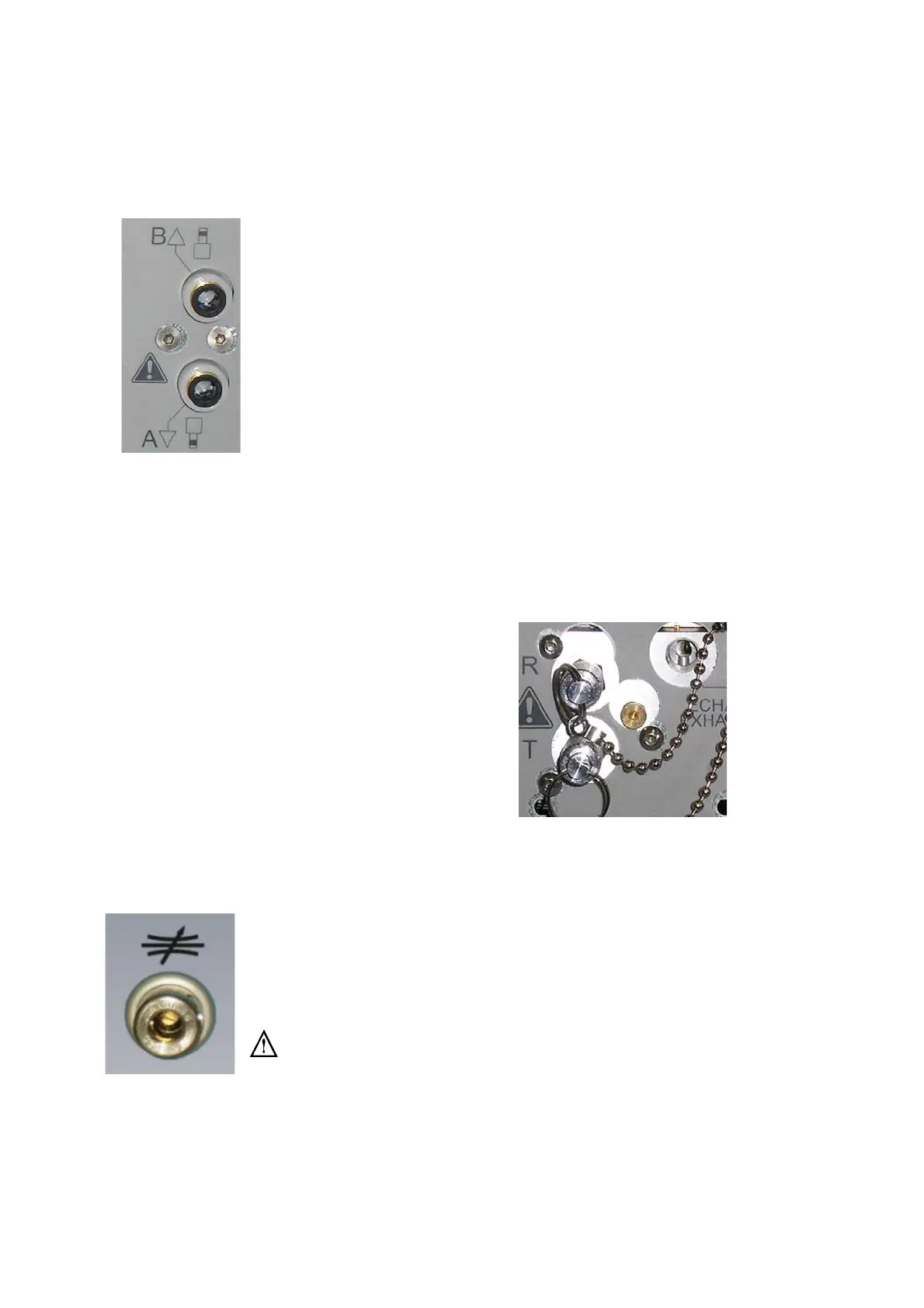

4. PNEUMATIC CONNECTORS
The pneumatics connectors are located on the rear side.
4.1. AUTOMATIC CONNECTOR A AND B (OPTION)
To drive pneumatics caps.
4.2. PNEUMATICS TEST OUTPUTS
These outputs enable parts to be connected (test, reference). The pressurization output
is used for the addition of ATEQ accessories (Y valve).
Inputs / Outputs on the rear side of the F670:
Reference Output R
Pressurization Output
Test Output T
4.3. QUICK CONNECTORS (OPTION)
One quick connector may be mounted on the front panel of the
instrument.
This connector is to check the calibration. It's used to check the test
circuit and enables, by use of a calibrated leak, calculation of the
equivalent pressure drop.
As this connector is part of the measurement circuit, all its
connections must be air tight.
