Quick start - F670
MR-36300C-U Quick start manual ATEQ F670 Page 3/25
3. THE MAIN TYPES OF MEASUREMENT
Direct measurement, indirect measurement and sealed component measurement.
These three methods apply to measurements taken both under pressure and in vacuum
conditions.
The configuration is determined by the application and must be carried out prior to the
use of the instrument.

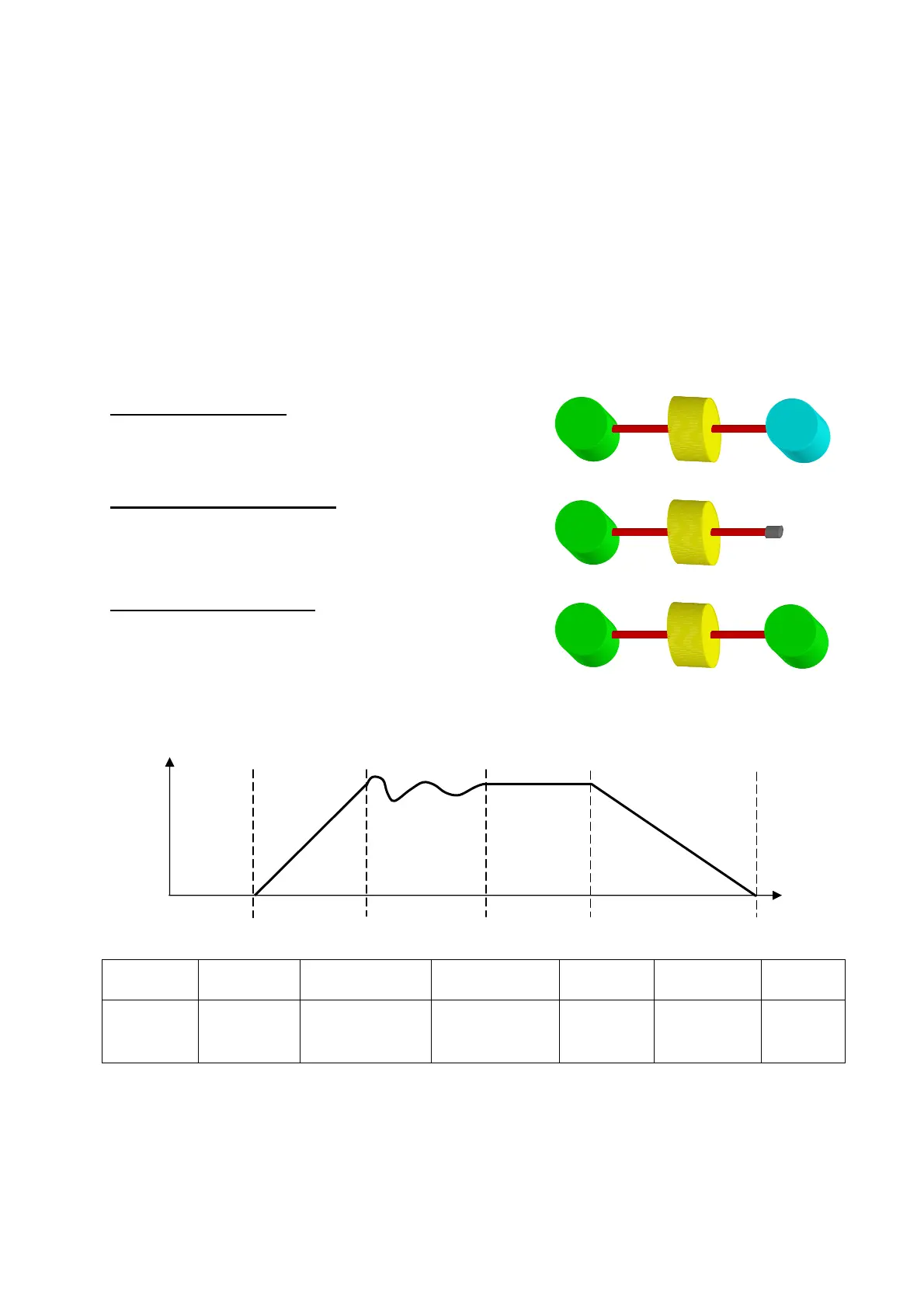

4. THE THREE TYPES OF TEST
Test with reference
: measurement of a pressure
variation between a test part and a reference part.
TEST
PART
REFERENCE
PART
DIFFERENTIAL
SENSOR
Test without reference: measurement of a
variation in pressure between a test part and a
sealing connector on the reference side.
TEST
PART
CAP
DIFFERENTIAL
SENSOR
Test with central zero: test of two parts at the
same time. One part is connected to the test side
and the other to the reference side.
TEST
PART
DIFFERENTIAL
SENSOR
TEST
PART
5. MEASUREMENT CYCLE
FILL STABILIZATION TEST DUMP WAIT
The measurement cycle consists of 5 phases:
1 2 3 4 5
Start
Coupling
time
Fill time
Stabilization
time
Test
time
Dump
time
Cycle
end
