MR-36300C-U Quick start manual ATEQ F670 Page 5/25

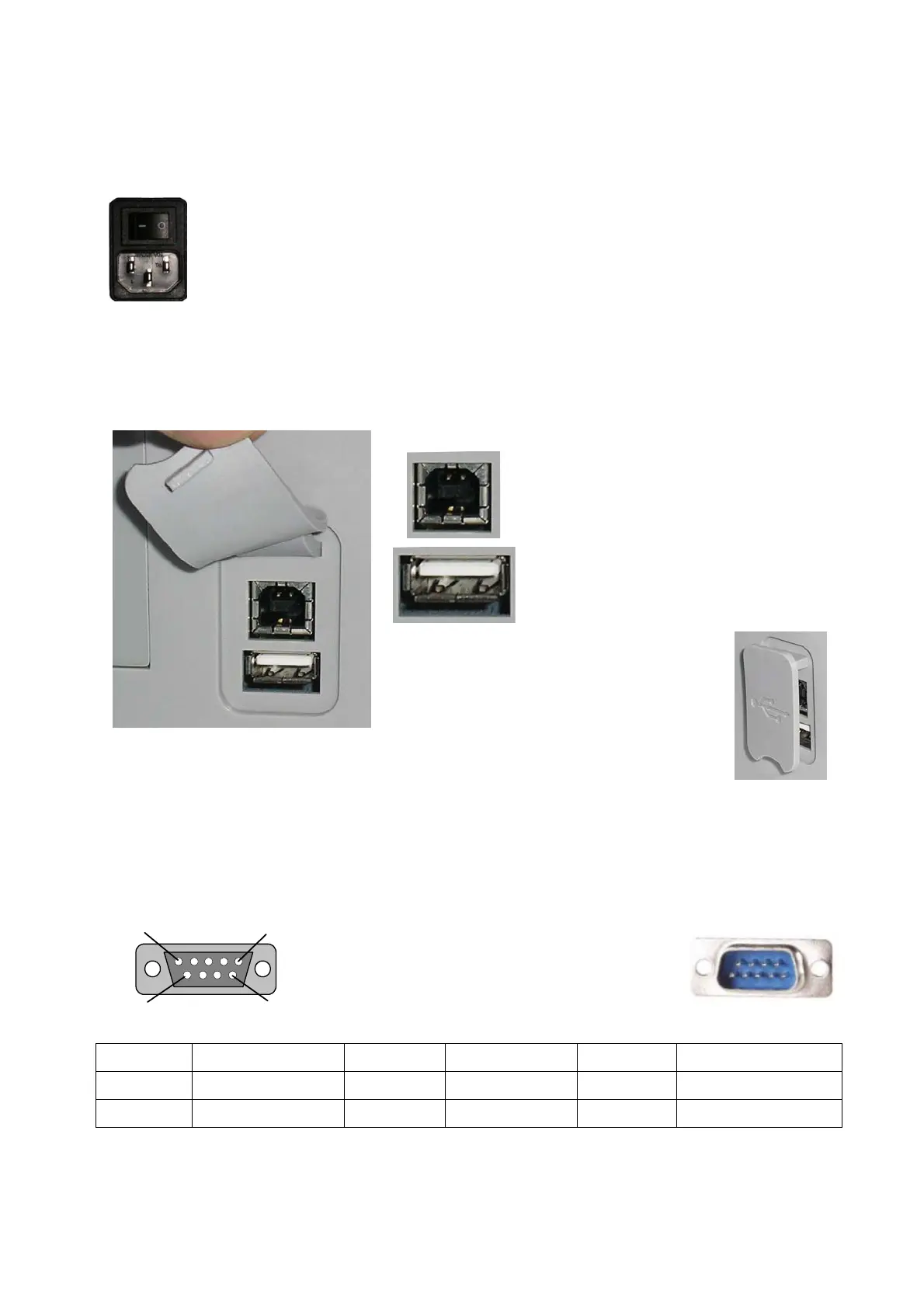

2. ELECTRICS CONNECTORS
2.1. POWER SUPPLY WITH 100 / 240 V AC AND ON/OFF SWITCH (OPTION)
Supply the ATEQ F670 with the built in power supply, with a voltage
between 100 and 240 V AC - 50 W.
I: ON / O: OFF.
2.2. USB CONNECTOR (FRONT FACE)
Allows the connection of miscellaneous compatibles
USB devices. The connectors are located under the
rubber cover.
USB connector to plug a PC.
USB connector to plug an UBS
memory key or a remote control.
The USB connector rubber cover can
be slightly deviated to the front for easy
access to connectors.
2.3. J1 RS232 CONNECTOR PRINTER
2.3.1. Connector in RS232 mode
51
9
6
RS232: SubD 9 points male connector.
To plug a printer or a PC.
Pin 1 Not used Pin 4 Not used Pin 7 RTS request to send
Pin 2 RXD data input Pin 5 Earth/Ground Pin 8 CTS clear to send
Pin 3 TXD data output Pin 6 Not used Pin 9 Not used
