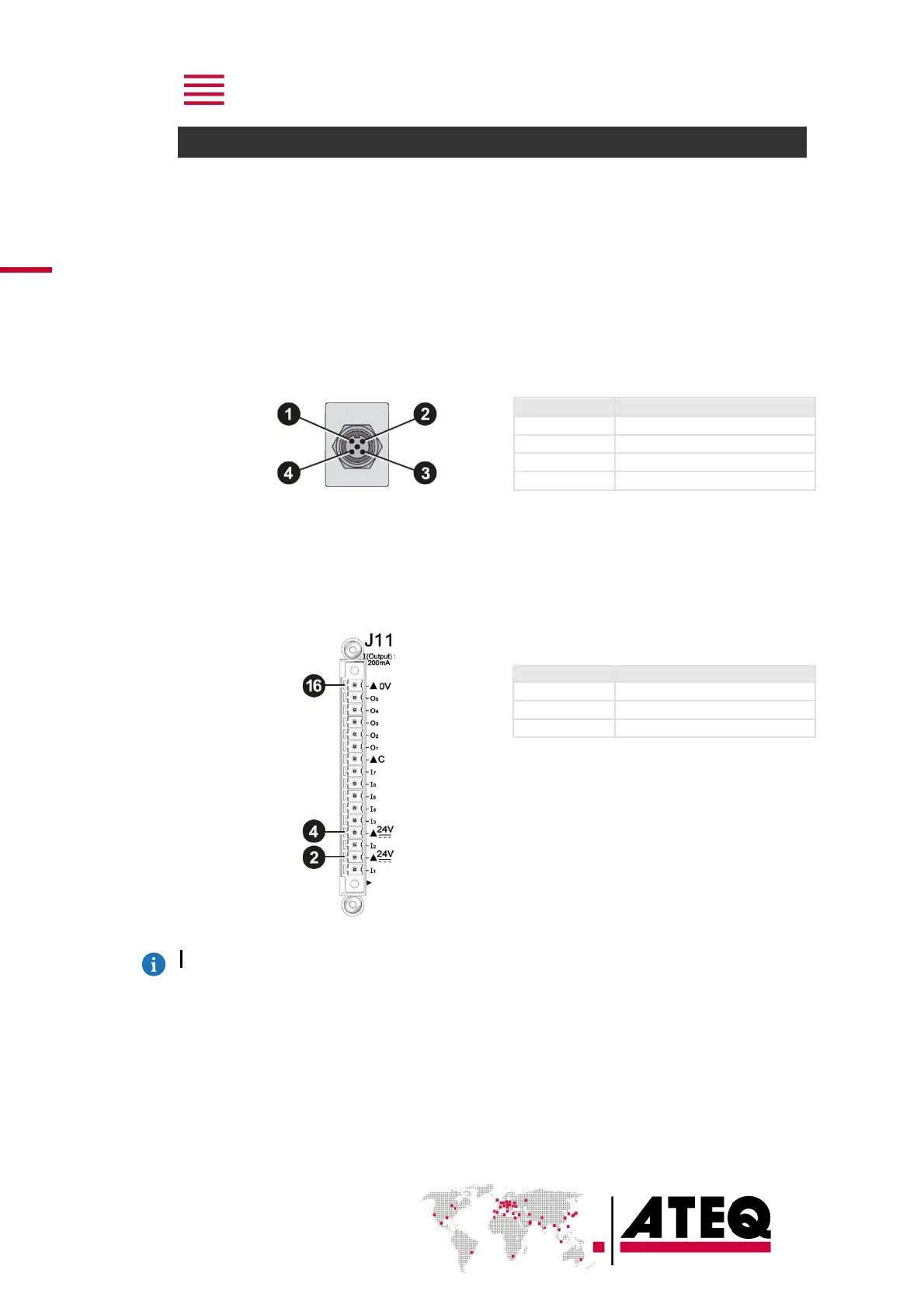

POWER SUPPLY CONNECTORS
The device can be connected to an external power supply (24 V DC – 2A) or provided with
an internal power supply (100 / 240 V AC) (option).
External supply
24 V DC connector (J7)
The device can be connected to a 24 V DC – 2A power supply through a M12 4 pins type
connector.
24 V DC on the relay board connector (J11) (option)
The device can also be connected to a 24 V DC - 2 A power supply through J11 connector
on the relay board.
Apply 24 V DC to the pin 2 or 4
Pin number
Signal
1
Not connected
2
+ 24 V DC
3
Not connected
4
Ground: 0 V
Pin number
Signal
2
+ 24 V DC
4
+ 24 V DC
16
Ground: 0 V
