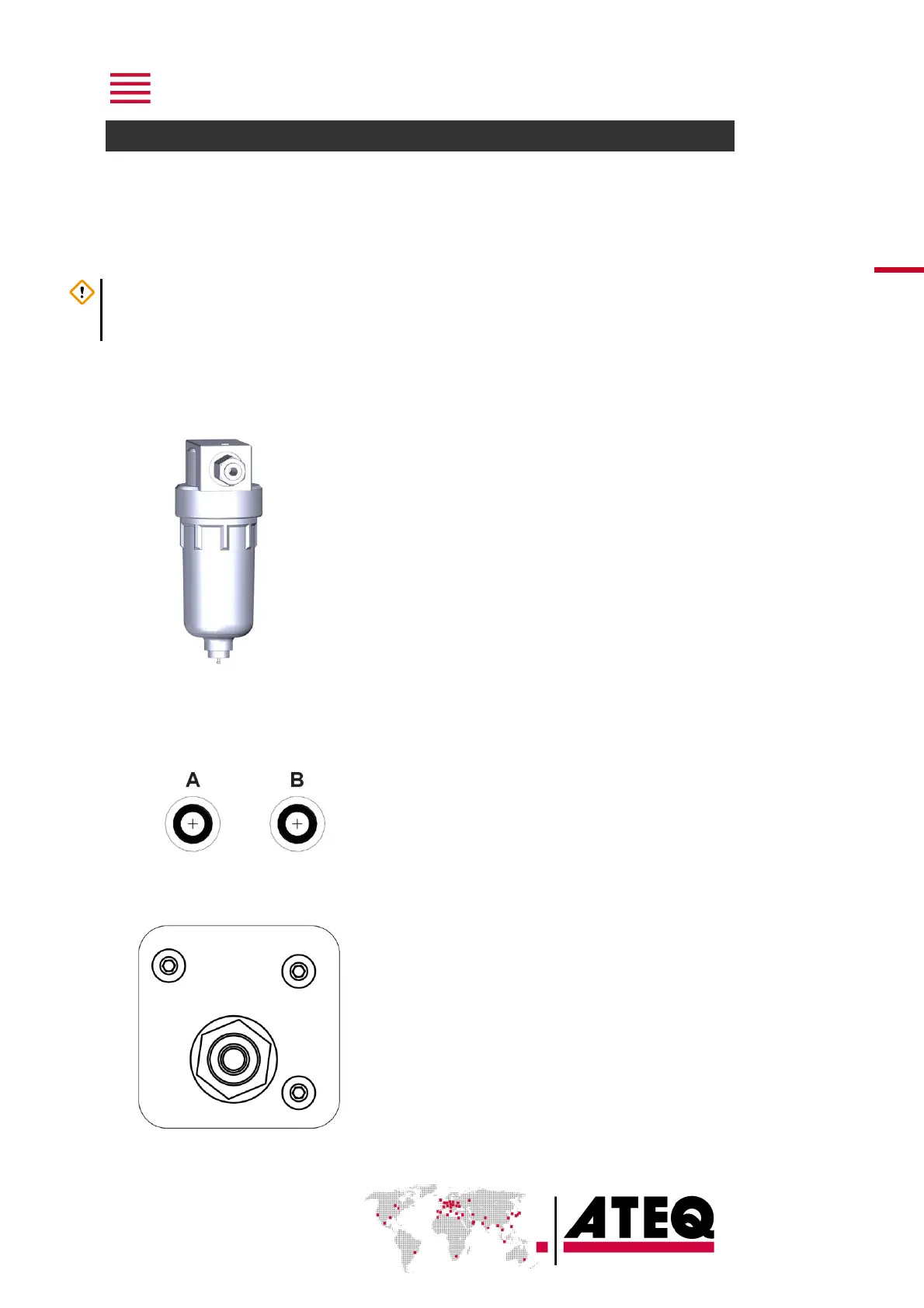

PNEUMATICS CONNECTORS
Pneumatic connectors used to connect the part under test are located on the back panel of
the device.
Pneumatic supply
The pneumatic supply has to meet specific requirements recommended by ATEQ. Refer to
Good practices and safety instructions section.
A specific filter may be necessary.
The air is supplied via the filter located on the back panel of the device.
Plastic air filter
The plastic filter is used for 0.5 MPa range.
The maximum pressure admissible is
690 kPa.
Pneumatic outputs 0.6 MPa
A and B: automatic connectors option.
These connectors are used to drive
pneumatic caps on the part under test.
Main Test connector
The test connector is used to connect the
device to the part to test.
Metallic fitting diameter options (in mm):
— 2.7/4
— 3/5
— 4/6
