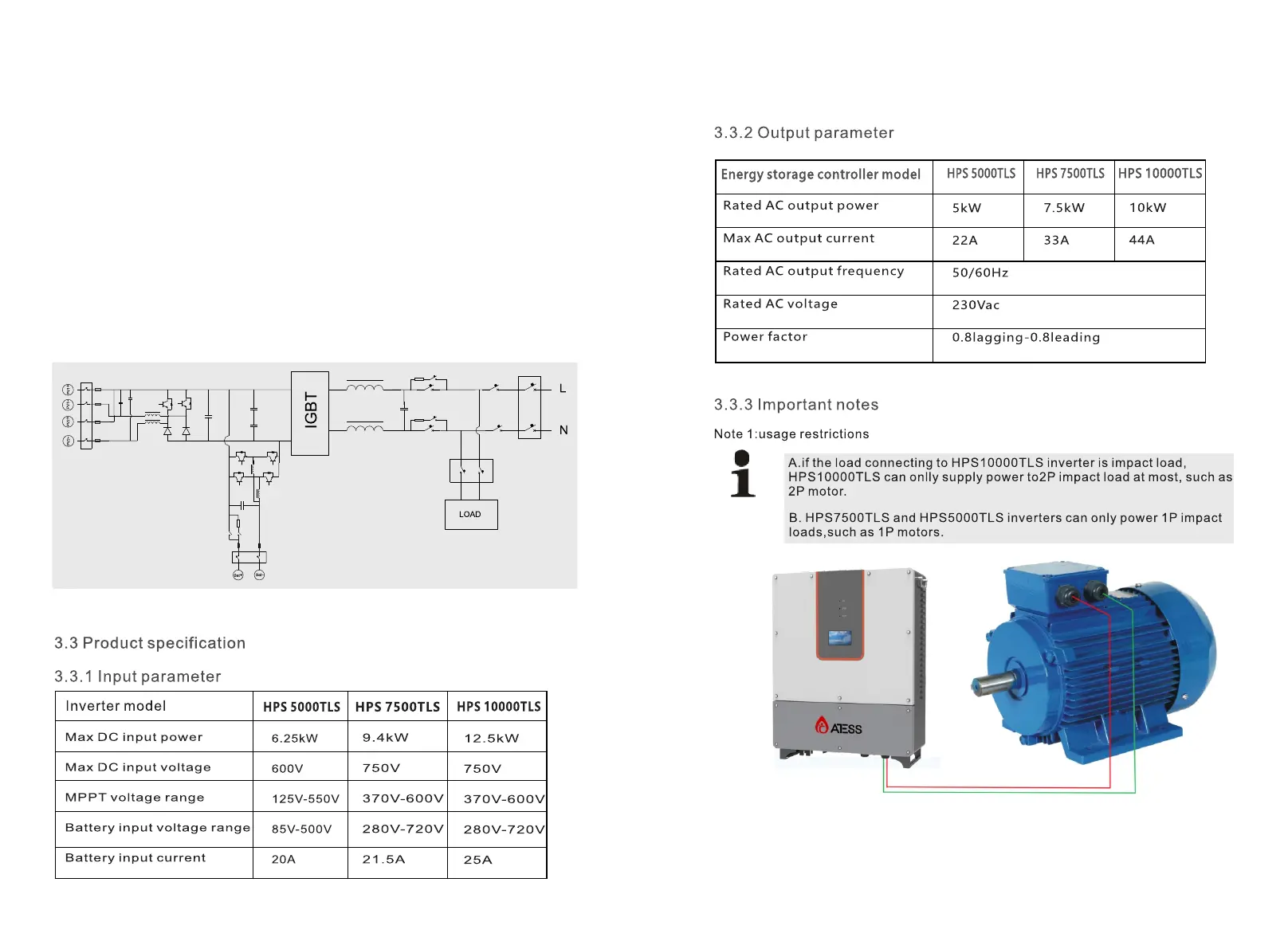

Figure 3-2-1 ATESS HPS-TLS circuit diagram
3 Product description
ATESS HPS5000TLS/HPS7500TLS/HPS10000TLS hybrid inverter is designed for
energy storage system, it converts DC current generated by battery bank into AC
current and feed into the load/grid, also it can take power from solar inverter or grid
to charge battery .
3.1 Energy Storage system
3.2 Circuit diagram of the inverter
ATESS HPS5000TLS/HPS7500TLS/HPS10000TLS hybrid inverter is designed for
energy storage system, it converts DC current generated by battery bank into AC
current and feed t into the load/grid, also it can take power from solar inverter or grid
to charge battery .
