ATI Technologies QC-210 Manual

Manual, Robotic Tool Changer Third Generation Teaching Aids
Document #9610-20-3370-02
Pinnacle Park • 1031 Goodworth Drive • Apex, NC 27539 USA • Tel: 919.772.0115 • Fax: 919.772.8259 • www.ati-ia.com • Email: info@ati-ia.com
15

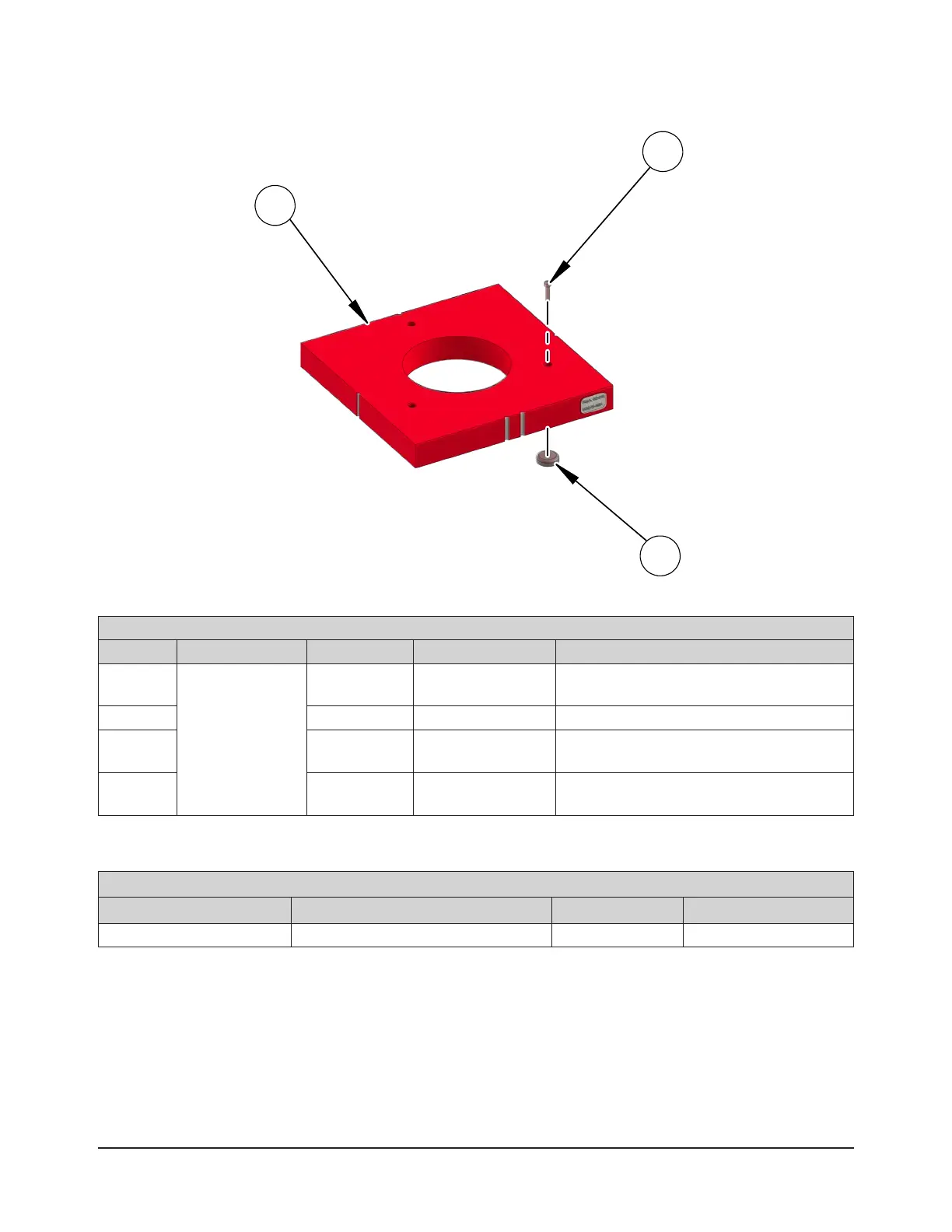

6.2 Tool Teaching Aid Serviceable Parts
2
3
1
Table 6.2—Tool Teaching Aid Tool Side Plate
Item No. Conguration Qty Part Number Description
-
QC-210
9005-20-8465
Tool Side Teaching Aid Assembly, 3rd
Generation
1 1 3700-20-10469 Tool Side Teaching Aid, 3rd Generation
2 3 3500-1010050-21
4-40 x 1/2 Socket Head Cap Screw,
Stainless Steel
3 3 3710-20-3484
Magnet, 0.625” x 0.18” K&J Magnets
MMS-H-A
7. Specications
Table 7.1—TeachingAidSpecications
Part Number Description Weight Stack Height
9120-210-TEACH3 QC-210 Teaching Aids 4.26 lb (1.93 kg) 50 mm (1.97 in)
