Manual, Robotic Tool Changer Third Generation Teaching Aids
Document #9610-20-3370-02
Pinnacle Park • 1031 Goodworth Drive • Apex, NC 27539 USA • Tel: 919.772.0115 • Fax: 919.772.8259 • www.ati-ia.com • Email: info@ati-ia.com
8
2.2 Tool Side Teaching Aid
The Tool Side Teaching Aid is a red, aluminum body. (2) location bosses t into the Tool plate alignment
bushings. Magnets attach to the Tool plate interior race and secure the Teaching Aid to the Tool plate.

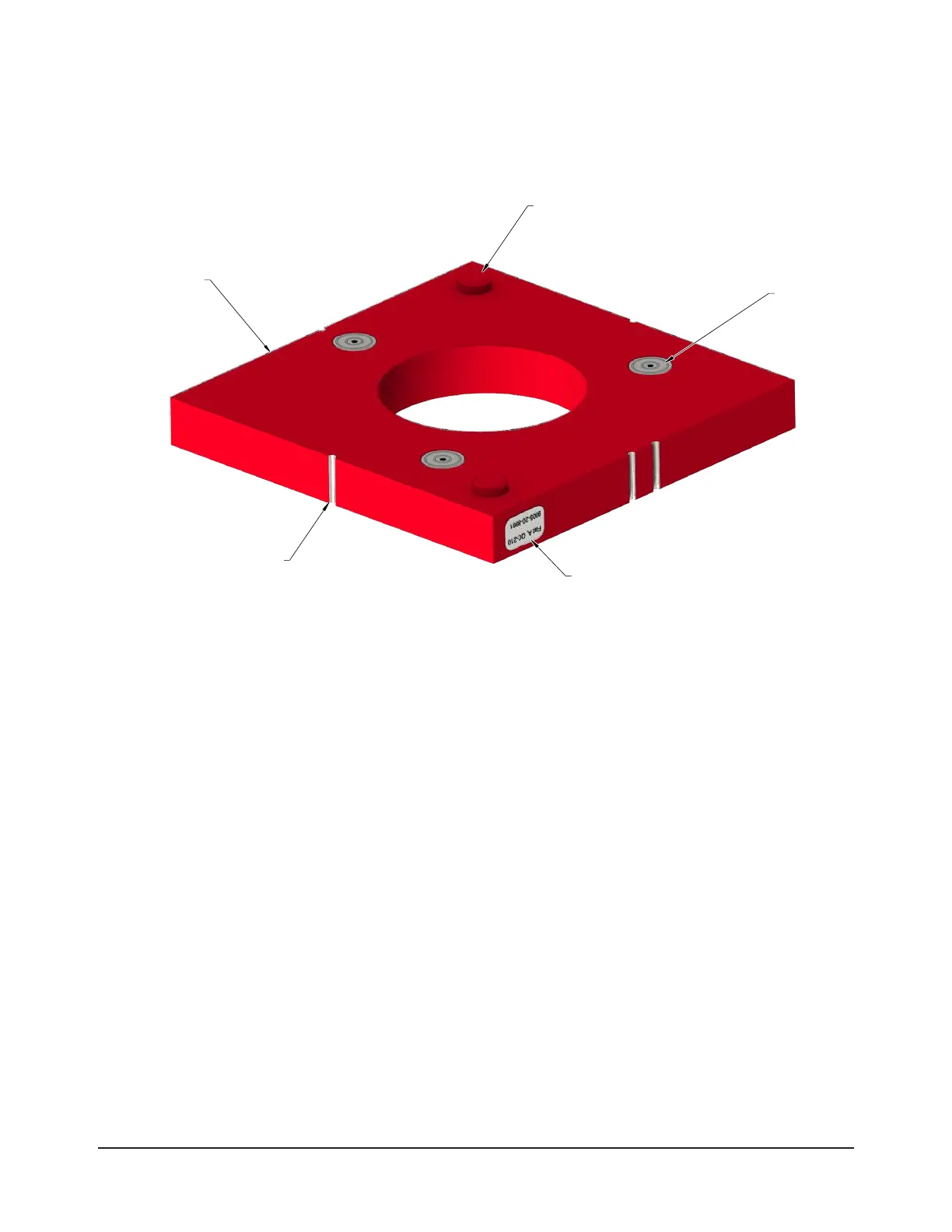

Figure 2.2—Tool Side Teaching Aid (QC-210 Shown)
Label with Part Number
and Face A designation
Notch(es) for alignment
(2) Location Boss
(3) Magnet
Tool Side
Teaching Aid
(QC-210 Shown)
