3.8. Gas pipework connections
The VF gas train supllied has a 125 micron
pre-filter
If the gas supply is dirty, please fit an additional
50micron filter
Ensure there is a union fitted between the isolating
valve and the gas train
The gas train can accept a supply pressure between
17mBAR and 25mBAR
3.9. Internal electrical connections

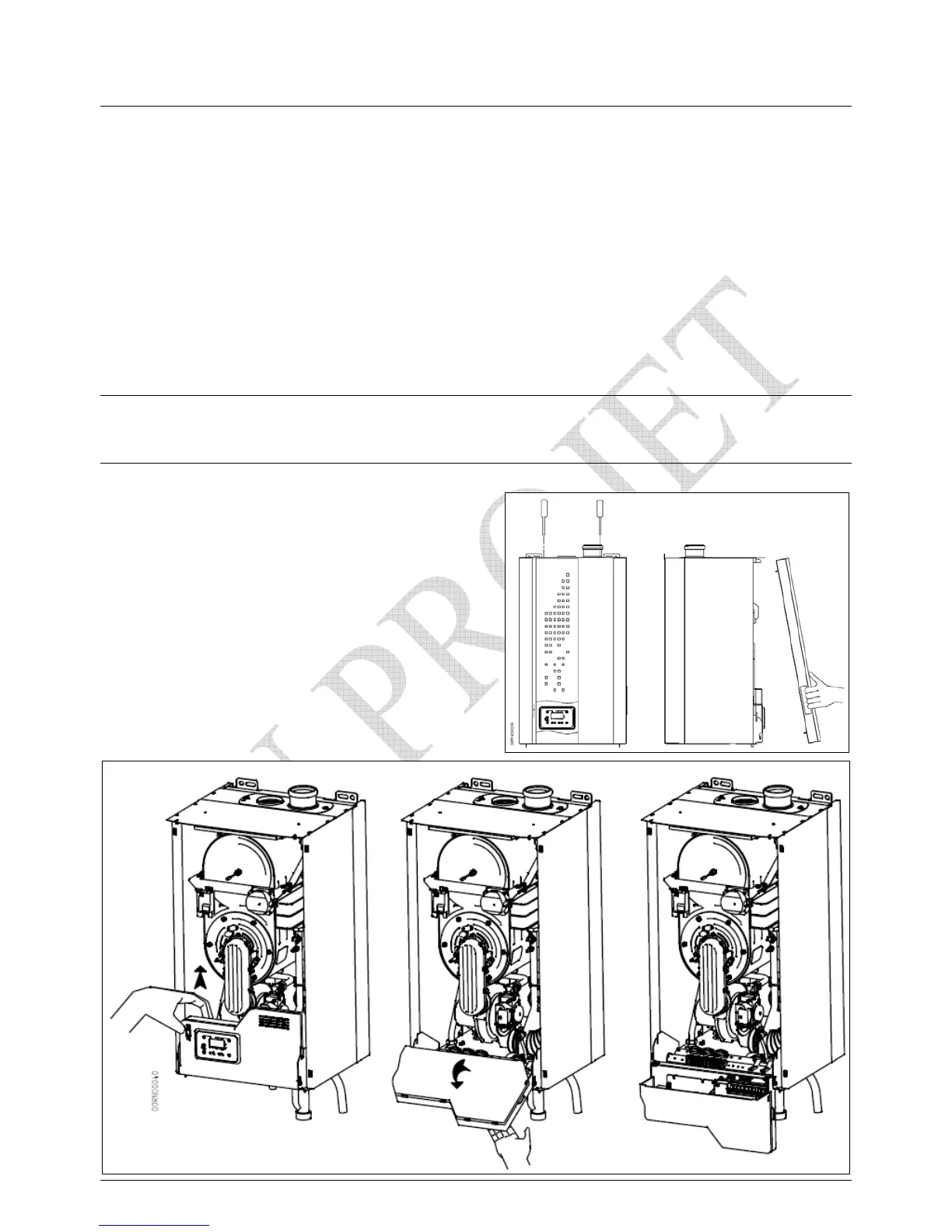

For access to the electrical terminals on the rear of
the control panel:
1) remove two screws on the external front face
of the jacket
2) lift off the front face off the jacket
3) removing transport fixings, tilt the control panel
fully forward
4) the terminals are now accessible
5) use the prepared openings for the external cables
c
d
