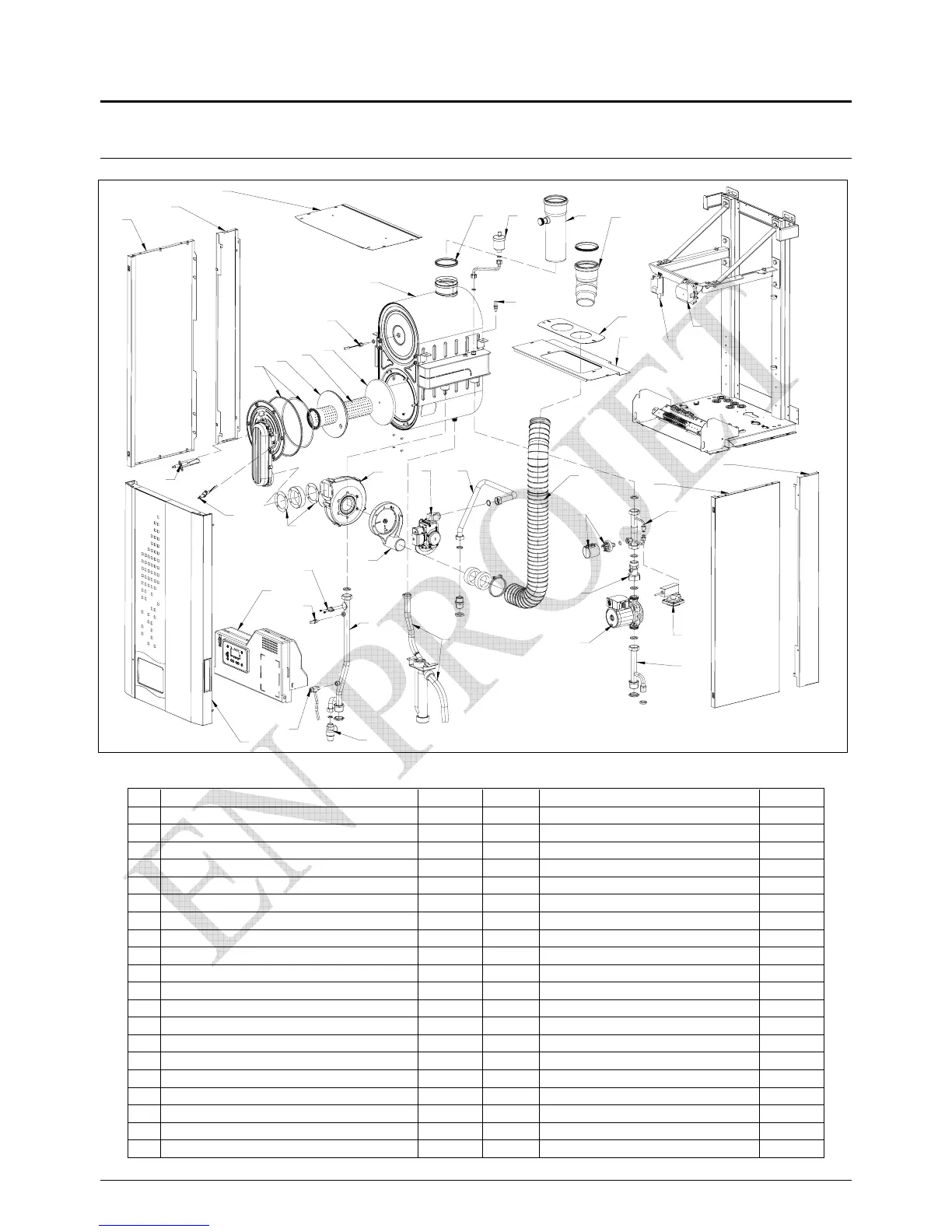

9. Spares lists
9.1. VF 60
N° D escription Code N° Description Code
1 left&right hand boiler panels 072 39
21 water differential pressure switch 072166
2 left&right joining panels 072849
22 automatic air vent 072164
3 front panel 072955
23 pressure return water pipe 072871
4 top panel 072881
24 non return valve 072167
5 rear panel 072852
25 suction return water pipe 072622
6
Support for air inlet bend 072882
26 heating circulator 072168
7 heat exchanger 072144
27 pressure flow water pipe 072872
8 ignition electrode 072146
28 limit thermostat 072169
9 ionisation electrode 072147
29 safety valve 072165
10 80mm flue outlet gasket 072148
30 drain valve 072171
11 burner refractory disk 072150
31 burner fan 072512
12 burner flame tube 072151
32 burner fan gaskets 072145
13 burner rear refractory disk 072152
33+34 gas valve assembly 072874
14 burner door refractory disk 072153
35 gas inlet tube 072883
15 boiler controller 072857 37 air inlet bend 072867
16 ignition transformer 072131
38 flexible air tube 072868
17 air differential pressure switch 072573
39 condensate siphon assembly 072875
18 water pressure switch 072300
40 flue gas outlet 072876
19 flue gas temperature sensor 072158
20 flow/return water temperature sensor 072859
