1. Dimensions and Components

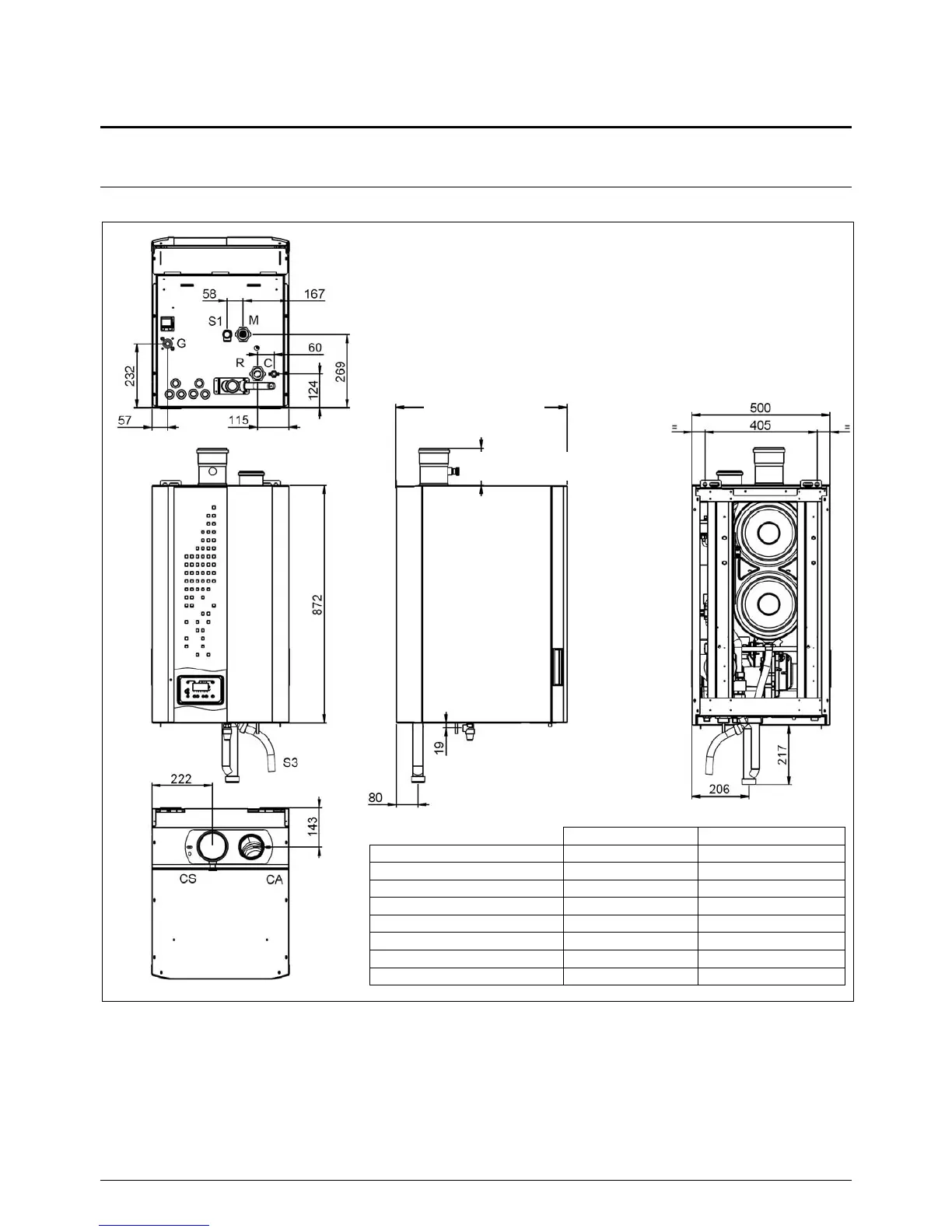

1.1. Dimensions
model 40 and 60 = 472
model 80 and 100 = 626
model 60 = 125
model 100 = 135
VF 40 / 60 VF 8
0 / 100
R heating return G 1’’ G 1’’ 1/4
M heating flow G 1’’ G 1’’ 1/4
G gas inlet G ¾’’ G ¾’’
C water feed inlet G ½’’ G ½’’
S1 safety valve ½’’ ½’’
CA combustion air inlet Ø 80 Ø 80
CS flue gas outlet Ø 80 Ø 100
S3 condensate outlet Ø 22 Ø 22
