3.3. Multi-boiler installation
Important : With one boiler or several, it is essential that a balancing vessel
is also installed.
The boiler(s) must not carry the weight of the balancing vessel
Wall fixing with
Ø 2x M10 screws

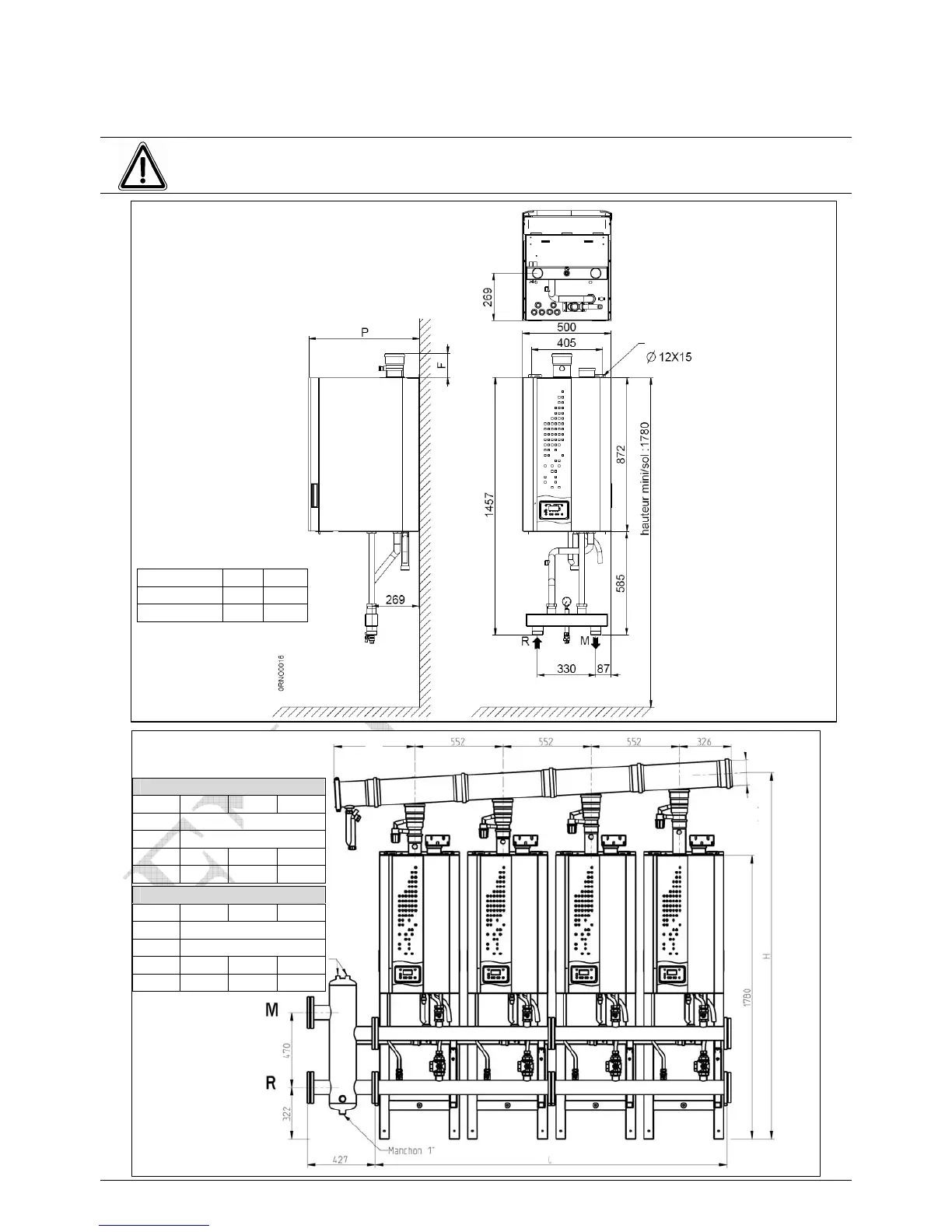

Installation of one VF
with a balancing vessel
M:heating circuit flow
R:heating circuit return
VF 60 100
F
125 135
P
472 626
Installation of 4 VF
in cascade
M:heating circuit flow
R:heating circuit return
Model 60
Nbre 2 3 4
A 507
Ø B 160
H 2235 2265 2295
L 1122 1674 2226
A
Ø B
Model 100
Nbre 2 3 4
A 532
Ø B 200
H 2393 2423 2453
L 1122 1674 2226
