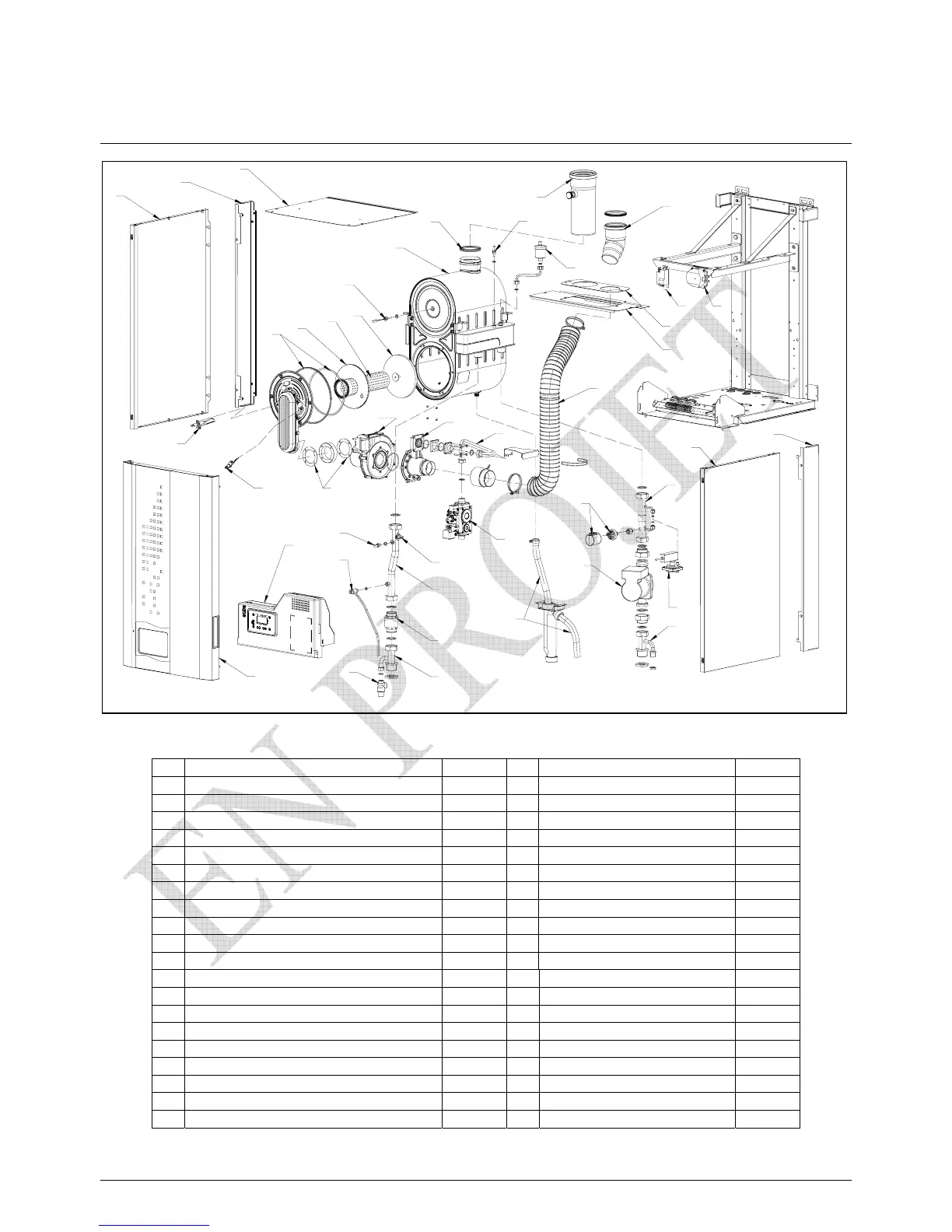

9.2. VF 100
N° D escription Code N° Description Code
1 left&right hand boiler panels 072502
21 water differential pressure switch 072166
2 left&right joining panels 072849
22 automatic air vent 072164
3 front panel 072955
23 pressure return water pipe 072860
4 top panel 072851
24 non return valve 072509
5 rear panel 072852
25 suction return water pipe 072625
6 support for air inlet 072853
26 heating circulator 072510
7 heat exchanger 072854
27 pressure flow water pipe 072627
8 ignition electrode 072505
28 limit thermostat 072169
9 ionisation electrode 072856
29 safety valve 072165
10 100mm flue outlet gasket 072519
30 drain valve 072171
11 burner refractory disk 072517
31 burner fan 072862
12 burner flame tube 072941
32 burner fan gasket 072145
13 burner rear refractory disk 072152
33 gas valve assembly 072863
14 burner door refractory disk 072153
34 air/gas blender 072864
15 boiler controller 072858
35 gas inlet tube 072938
16 ignition transformer 072131
37 air inlet bend 072867
17 air differential pressure switch 072573
38 flexible air tube 072865
18 water pressure switch 072300
39 condensate siphon assembly 072869
19 flue gas temperature sensor 072158
40 flue gas outlet 072870
20 flow/return water temperature sensor 072859
41 condensate drain 072861
