4. Boiler Control Panel

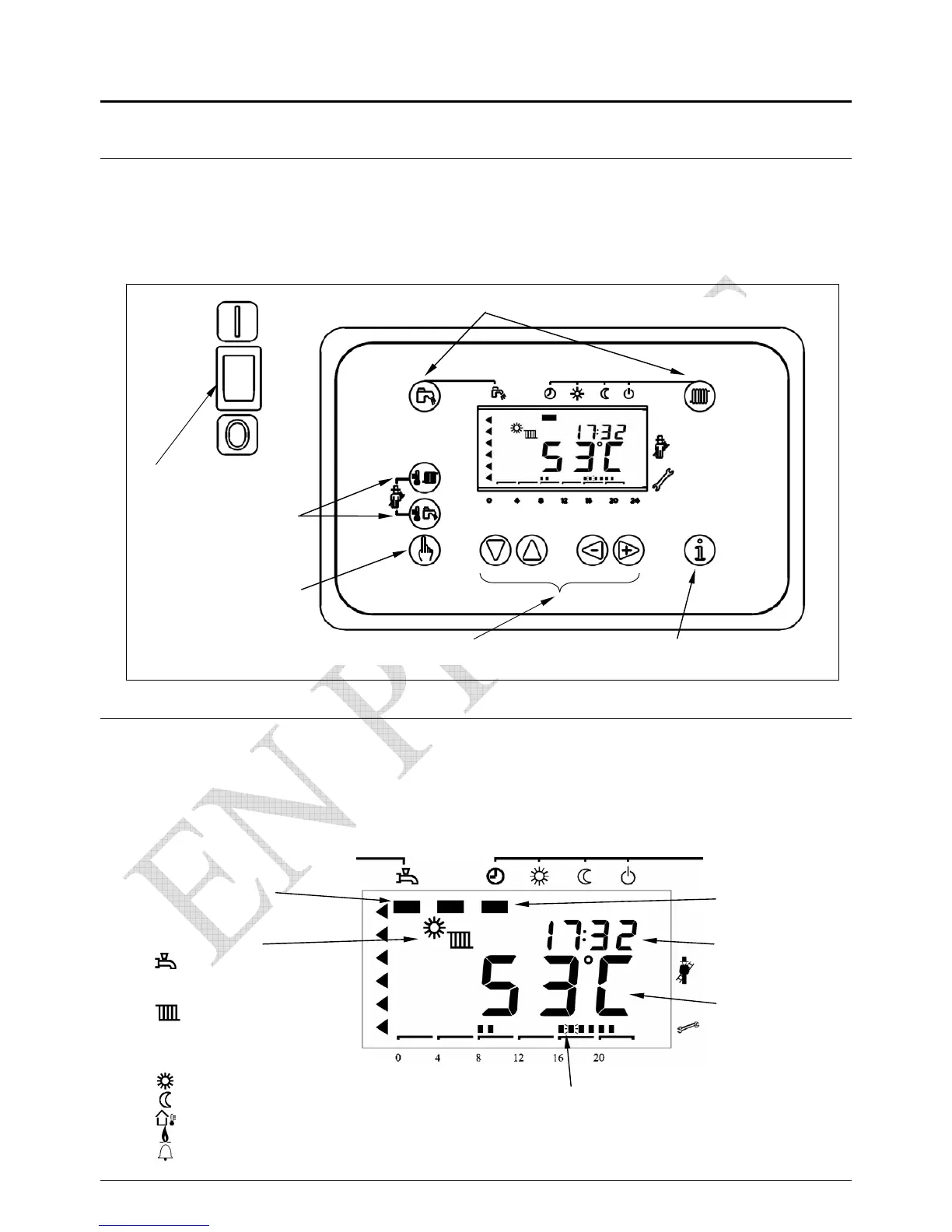

4.1. Control panel fascia
4.2. Display
The screen supplies boiler function, time, hourly programme,
temperature, burner, condition and defect
Hourly programme
Space heating
requirement
Time
Boiler
temperature
DHW requirement
Symbols :
DHW in progress
Space heating
in progress
Comfort requirement
Set back requirement
outside temperature
Flame established
Defect
Touch requirement
Touch programme Touch information
boiIer isolator
Touch signals
Touch
re-set
