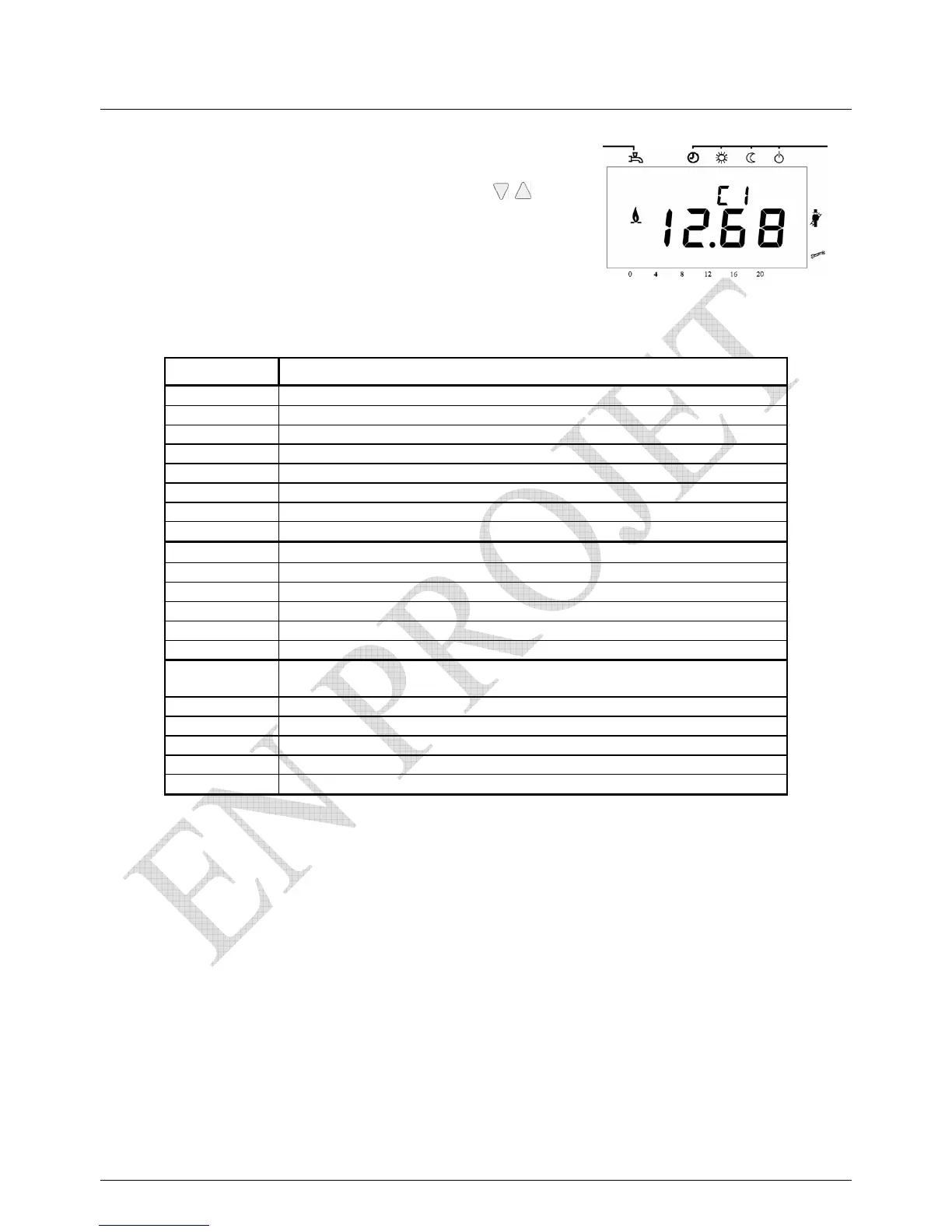

List of available information behind the Display
First touch - information
Press both vertical arrows simultaneously for 3 seconds
The time information is replaced by a letter (b,C,d) and a number (0 to 7)
By touching the vertical arrows, change the letter
By touching the + or -, change the number
Display Information
b0 Defect is present
b1 Boiler return temperature
b2 -
b3 Flue gas temperature
b4 Outside temperature
b5
b6
b7 Mixed flow temperature
C1
Ignition occuring (μA)
C2 Burner fan speed
C3 Burner fan PWM signal
C4 Output read from PMW
C5 -
C6 Correct output
d1
Recorded average boiler circuits flow temperature
d2 Recorded boiler flow temperature
d3 Recorded outside temperature
d4 Recorded DHW temperature
d5 Burner fan PWM recorded output
d6 Maximum speed of burner fan
