Atlantic Alfea Extensa A.I. R32 User Manual

- 7 -
►

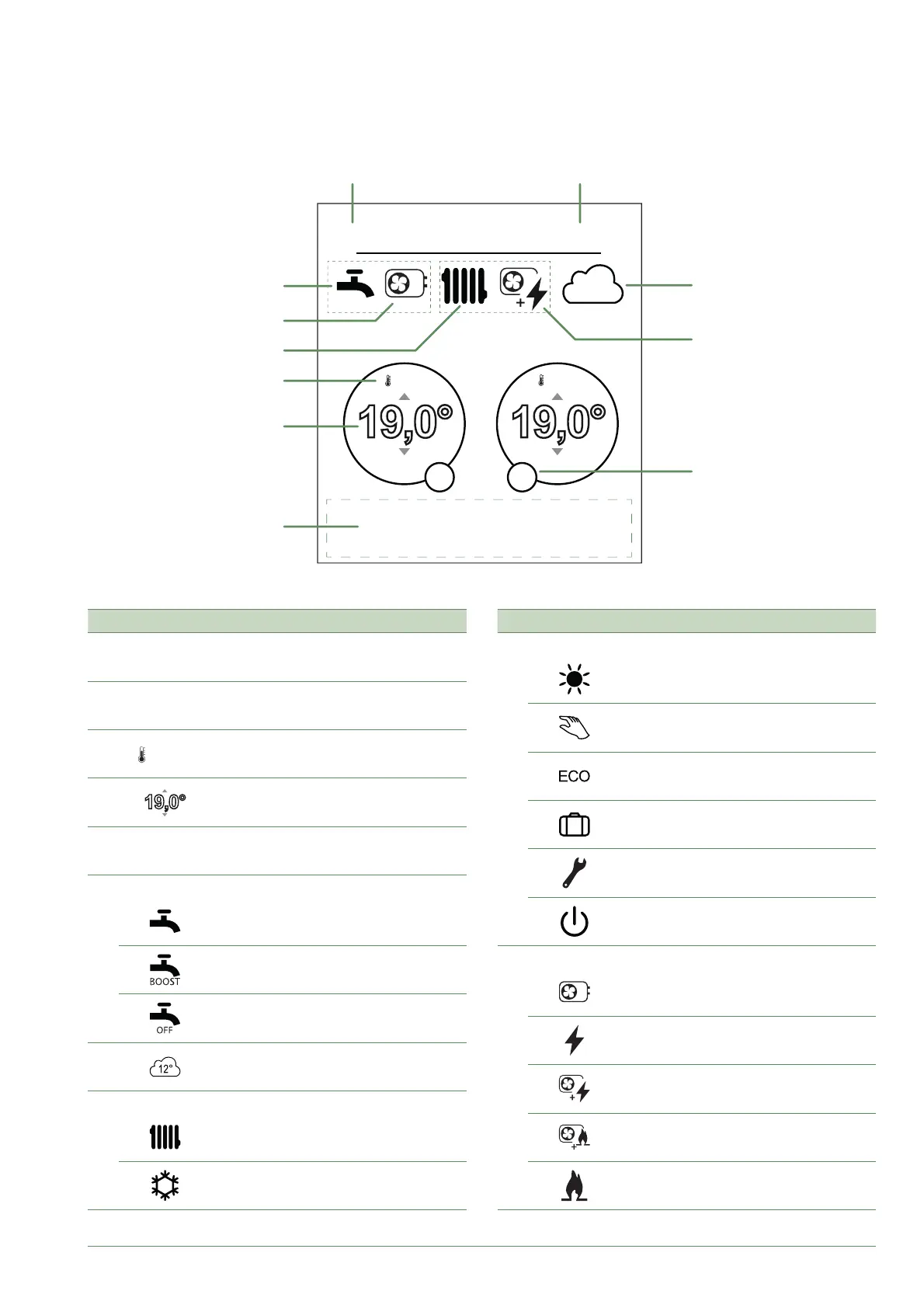

Display Description
N° Symbols Defi nitions
1 15:23 Time
2
07 September
2017
Date
3
21
.5
Temperature measured by the room
sensor*
4
19,0°
Room temperature setpoint
5
Information (zone names, emergency mode,
test mode, error display, etc.)
6
Domestic Hot Water (DHW)* ...
Activated
Boosting in progress
Deactivated
7
Temperature measured by the
outside sensor
8
Operation ...
Heating
Cooling*
N° Symbols Defi nitions
9
Mode ...
Comfort
Manual (exemption)
ECO
Holiday
Floor drying
Stop (except frost)
10
Production via ...
Heat Pump
Electrical backup*
HP + electrical backup*
HP + Fuel/Gas*
Fuel/Gas*
15:23
12°
19,0°
19.5
ECO
19,0°
21.5
ECO
7
10
9
3
10
8
6
4
5
7 September 2017
Zone 1 Zone 2
12
* depending on confi guration / option
alfea A.I. R32 / Operating manual / 2111 - EN
