Checking the adapter plate and
the breaker box for cracks
and/or wear
Check the adapter plate and the breaker box for
cracks every week.
Have rework activities or repairs carried out in time
to avoid major damage.

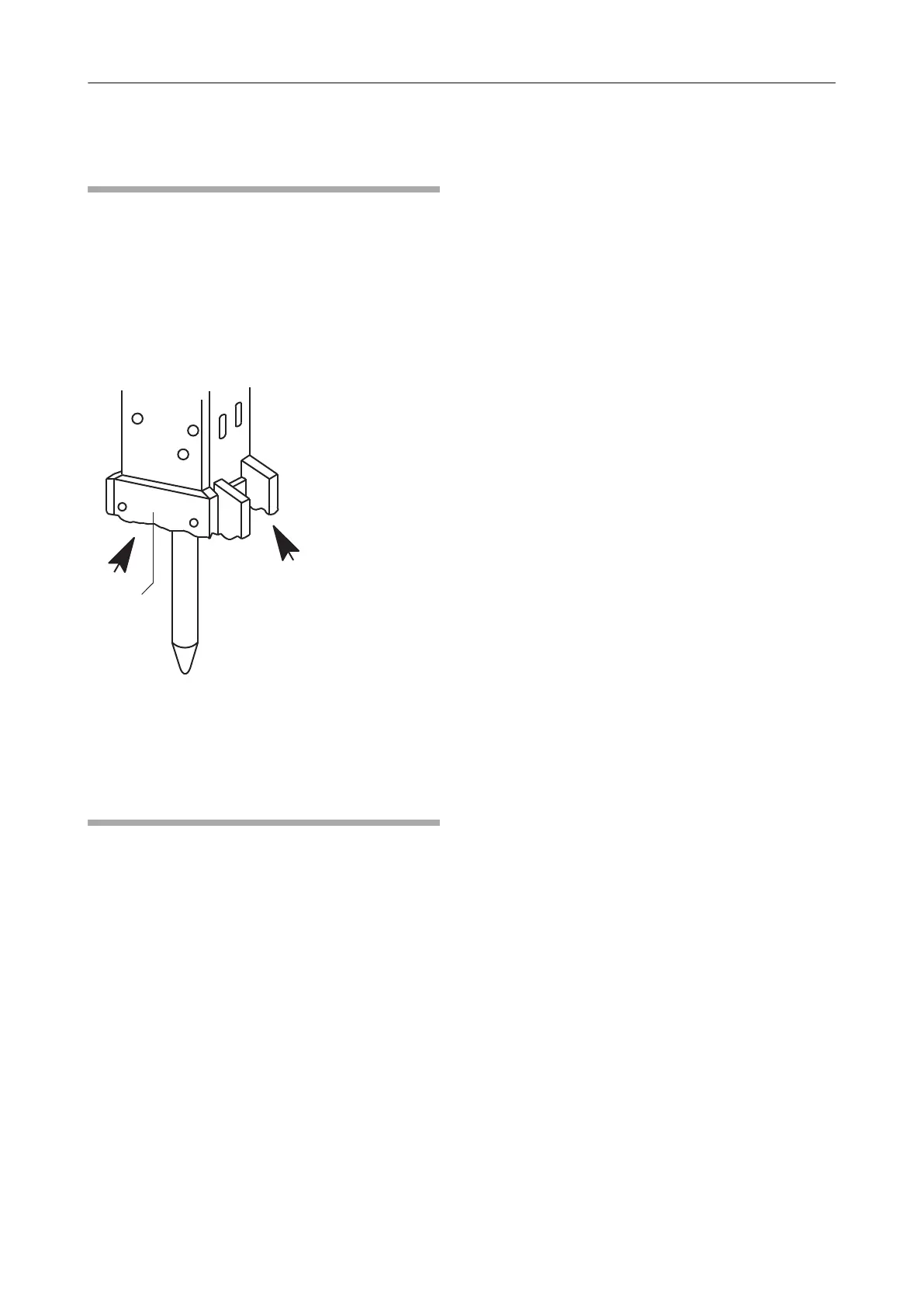

The wear rails (A) in the lower section of the
breaker box can be replaced as required. Please
consult the Atlas Copco Customer Center/dealer
in your area.
A
If the wear rails have worn severely, this may cause
damage to the basic body of the breaker box.
Checking the adapter plate
bolts for wear
Carry out this visual check whenever the hydraulic
attachment has been removed from the carrier.
Check the adapter plate bolts for excessive wear
such as cracks, pitting or severe erosion.
Rework or replace worn bolts.
51© 2012 Atlas Copco Construction Tools GmbH | No. 3390 5096 01 | 2012-04-26
Original instructions
MAINTENANCEHB 3100, 3100 DP, 3600, 3600 DP, 4100, 4100 DP,
4700, 4700 DP
