The contact faces of the screw head and the lock
washers (B) must not be lubricated.
without a rotating mechanism:
♦

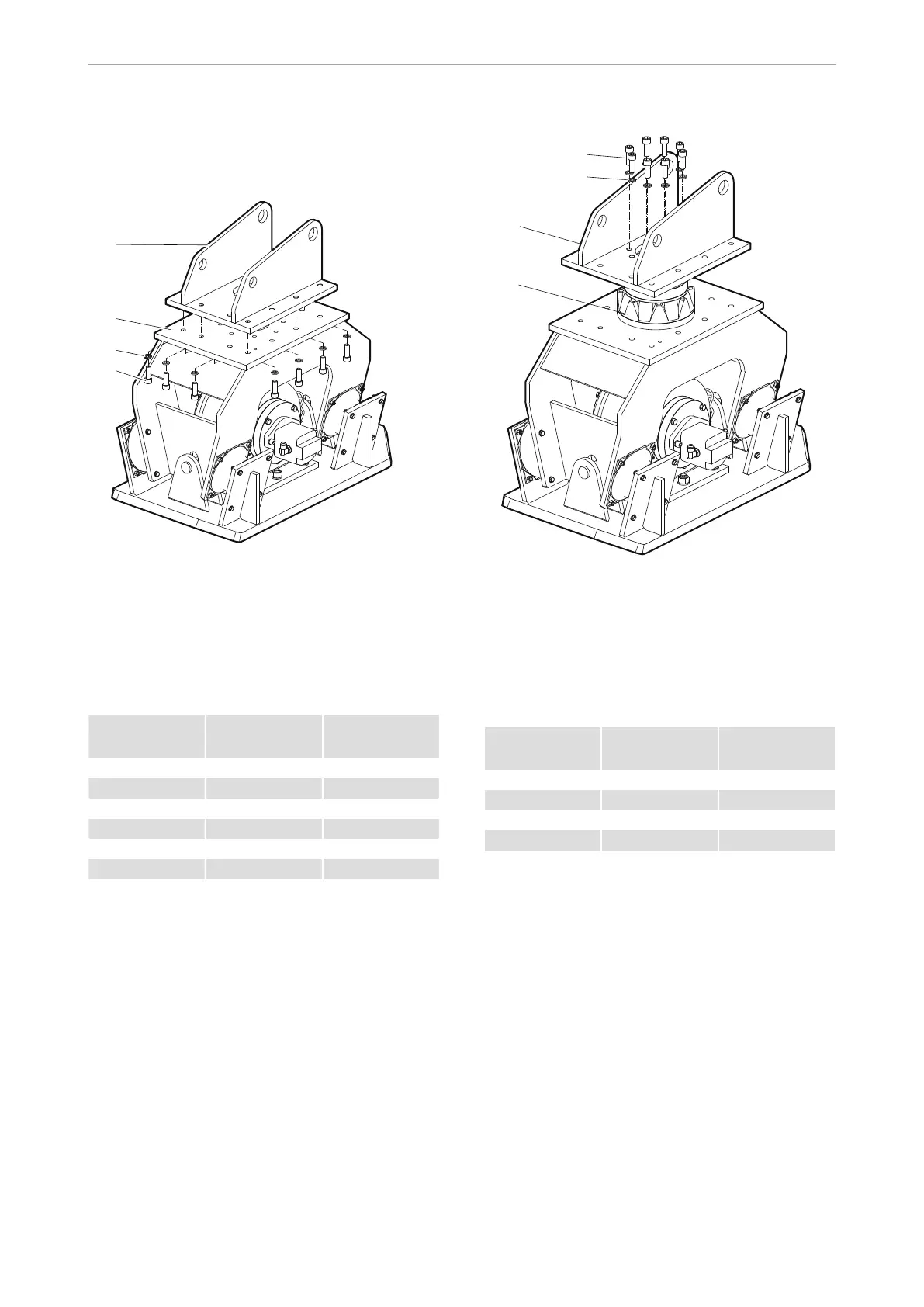

Install the adapter plate (D) to the compactor (C)
as shown.
A
B
C
D
♦
Fit a pair of lock washers (B) onto every screw
(A).
♦
Tighten the Allen screws (A) with an Allen key.
♦
Tighten the Allen screws (A) with the required
tightening torque.
Tightening
torqueSpanner sizeModel
219 Nm14 mmHC 150
410 Nm17 mmHC 350
410 Nm17 mmHC 450
410 Nm17 mmHC 850
1500 Nm22 mmHC 1050
1500 Nm22 mmHC 1055
with a rotating mechanism:
♦
Install the adapter plate (D) on the rotating
mechanism (E) as shown.
A
B
D
E
♦
Fit a pair of lock washers (B) onto every screw
(A).
♦
Tighten the Allen screws (A) with an Allen key.
♦
Tighten the Allen screws (A) with the required
tightening torque.
Tightening
torqueSpanner sizeModel
219 Nm14 mmHC 350
219 Nm14 mmHC 450
219 Nm14 mmHC 850
410 Nm17 mmHC 1050
410 Nm17 mmHC 1055
