Atlas Copco HC 150

without a rotating mechanism
♦

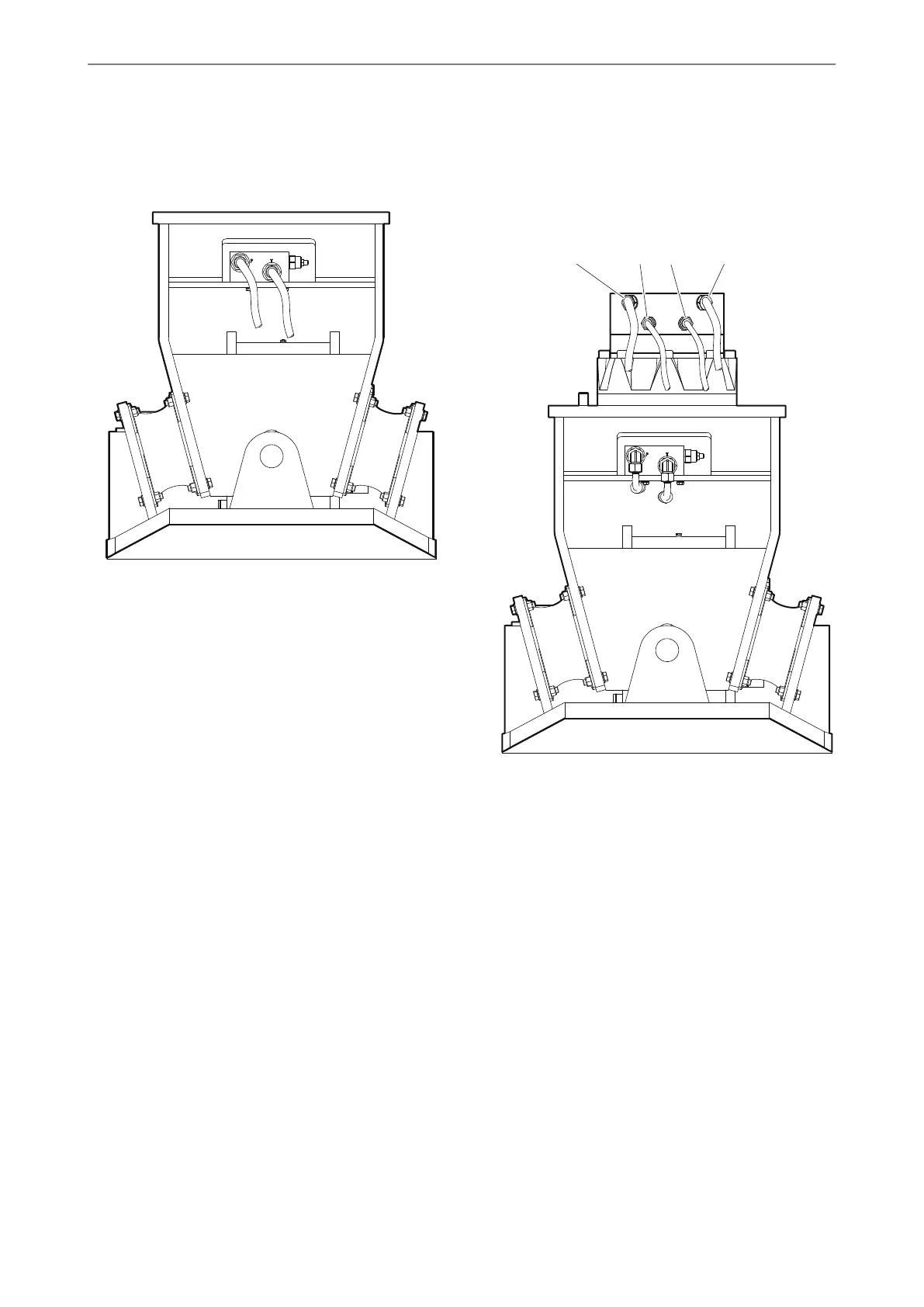

Connect the pressure hose to port »P«, making
sure it is torsion-free.
♦
Connect the tank hose to port »T«, making sure
it is torsion-free.
with a rotating mechanism
♦
Connect the pressure hose to connection »P« of
the rotating mechanism motor, making sure it is
torsion-free.
♦
Connect the tank hose to connection »T« of the
rotating mechanism motor, making sure it is
torsion-free.
P R1 R2 T
♦
Remove the cap nuts and plugs from the »Rotate«
connections and save them for future use. (R1 =
anticlockwise rotation, R2 = clockwise rotation).
♦
Connect the hoses to the connections of the
»Rotate« function.
♦
Connect both hoses for the »Rotate« function,
making sure they are torsion-free.
all models:
♦
Tighten the connections with the right tightening
torques (see section Screw connections /
Torques).
♦
Lift the hydraulic attachment a bit and move it.
Check the positions of the hydraulic hoses.
If the hydraulic hoses are too long, they may get
stuck; if they are too short they may affect the
manoeuvrability of the hydraulic attachment.
♦
Replace any hydraulic hoses which are not of the
right length.
