Atlas Copco MT Focus 400 User Manual

Installation EN MT Focus 400
8
© Atlas Copco Industrial Technique AB - 9836 6294 01
NOTE
■
The torque measuring function in the controller is sensitive to strong magnetic fields. Do not
place magnetic items, for example bits, on or near the controller.

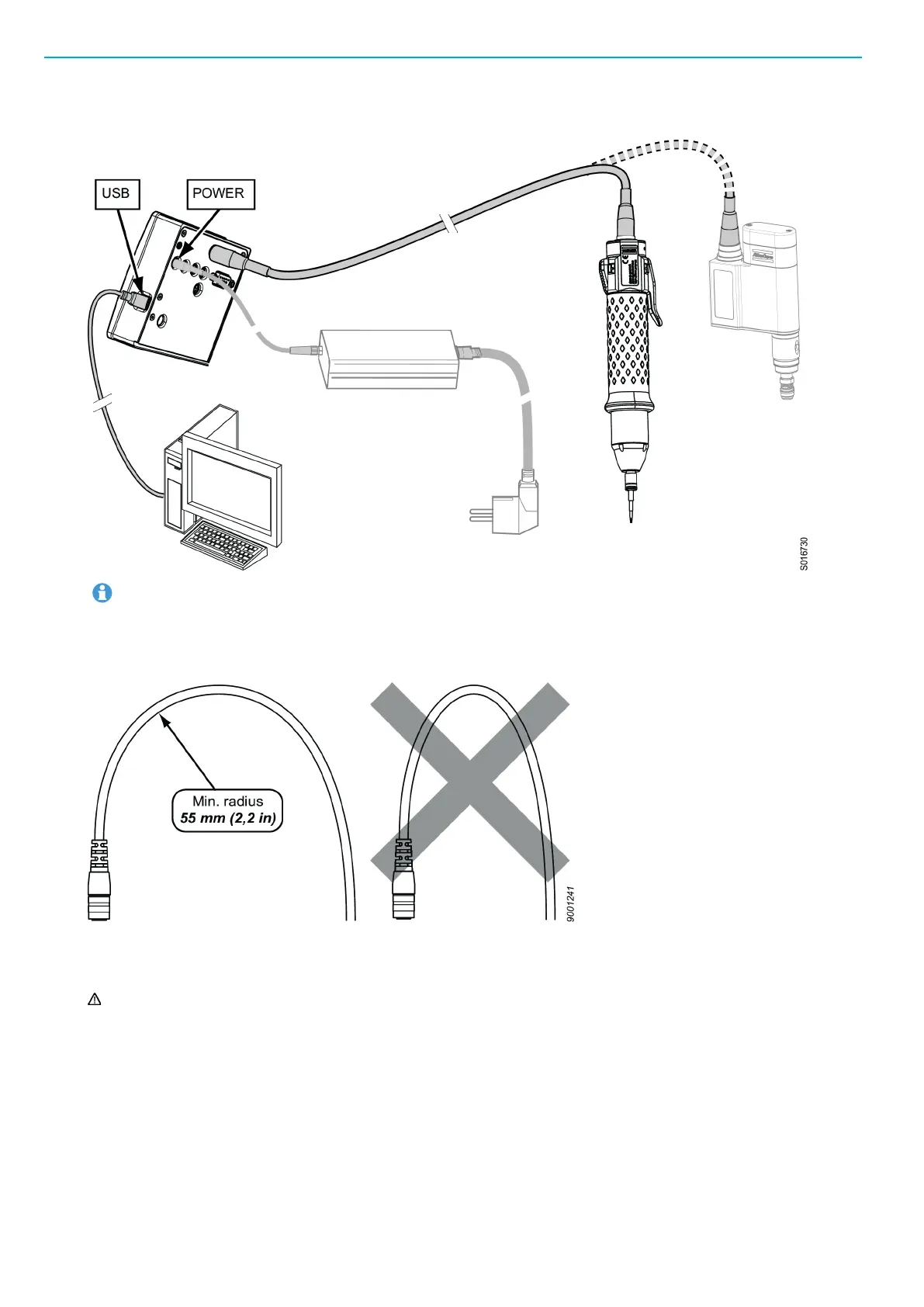

NOTICE Make sure the cable is not bent more than a radious of 55 mm (2.2 in).
Connecting accessories
CAUTION
■
The internal 24 V supply can be loaded with max 700 mA. If the sum of all loads tend to exceed this
value - use an external +24 V source.
Serial interface (RS232-C)
3-pole socket connector for the serial interface.
COM port settings: 115200Baud, 8Data bits, 1Stop bit, No parity, No handshake.
Use a 3-pole pin plug from the Binder 719 Series.
