10
ORV 10 - ORV 12 - ORX 10 - ORX 12
2.3 MAIN PARTS

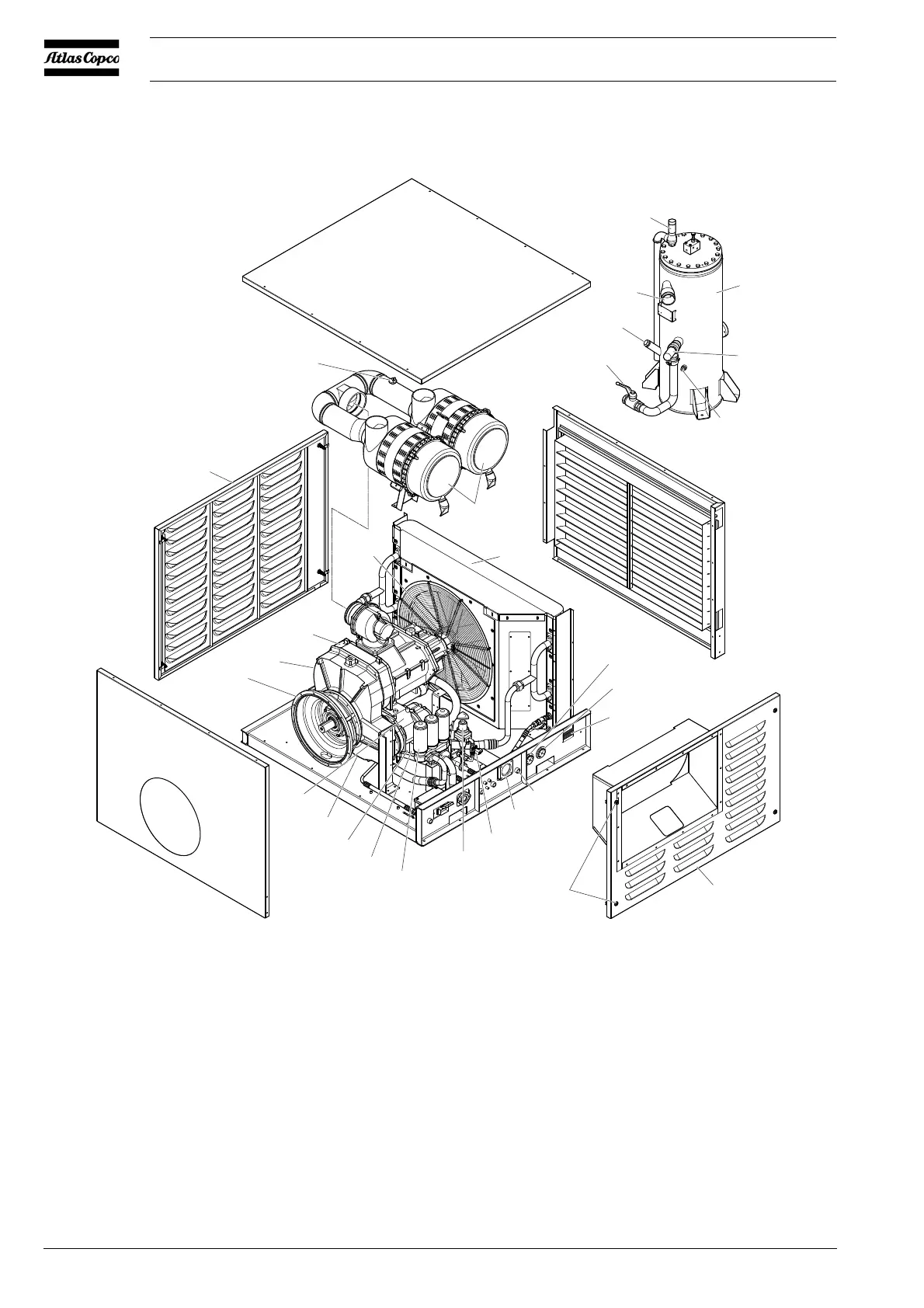

Fig. 2.2 Main parts of ORV/ORX
1: Compressor module 2: Receiver module
AF Air filter
AH Adapter housing (gear casing to prime
mover)
BV By-pass valve
CEH HP compressor element
CEL LP compressor element
CV Check valve
DaP Data plate
DeP Delivery pipe
DP
OC
Drain plug oil cooler
FFan
LV Loading solenoid valve
OC Oil cooler
OF Oil filter
OSV Oil stop valve
OV Overpressure valve
PG
1
Interstage pressure gauge
PG
2
Working pressure gauge
RV Regulating valve
SDL Service door lock (4 on each side panel)
SP Detachable side panel
TG
1
Temperature gauge, LP compressor
element
TG
2
Temperature gauge, HP compressor
element
VIS Vacuum indicator switch
AI Air inlet (air receiver)
AO Air outlet (air receiver)
AR Air receiver
FP Filler plug (compressor oil)
MPV Minimum pressure valve
SG Sight glass
SV Safety valve
(AF)
(AH)
(BV)
(CEh)
(CEl)
(CV)
(DaP)
(DeP)
(DPoc)
(F)
(LV)
(OC)
(OF)
(OSV)
(OV)
(RV)
(SDL)
(SP)
(TG1)
(TG2)
(VIS)
(AI)
(AO)
(AR)
(FP)
(MPV)
(SG)
(SV)
(SP)
