ORV 10 - ORV 12 - ORX 10 - ORX 12

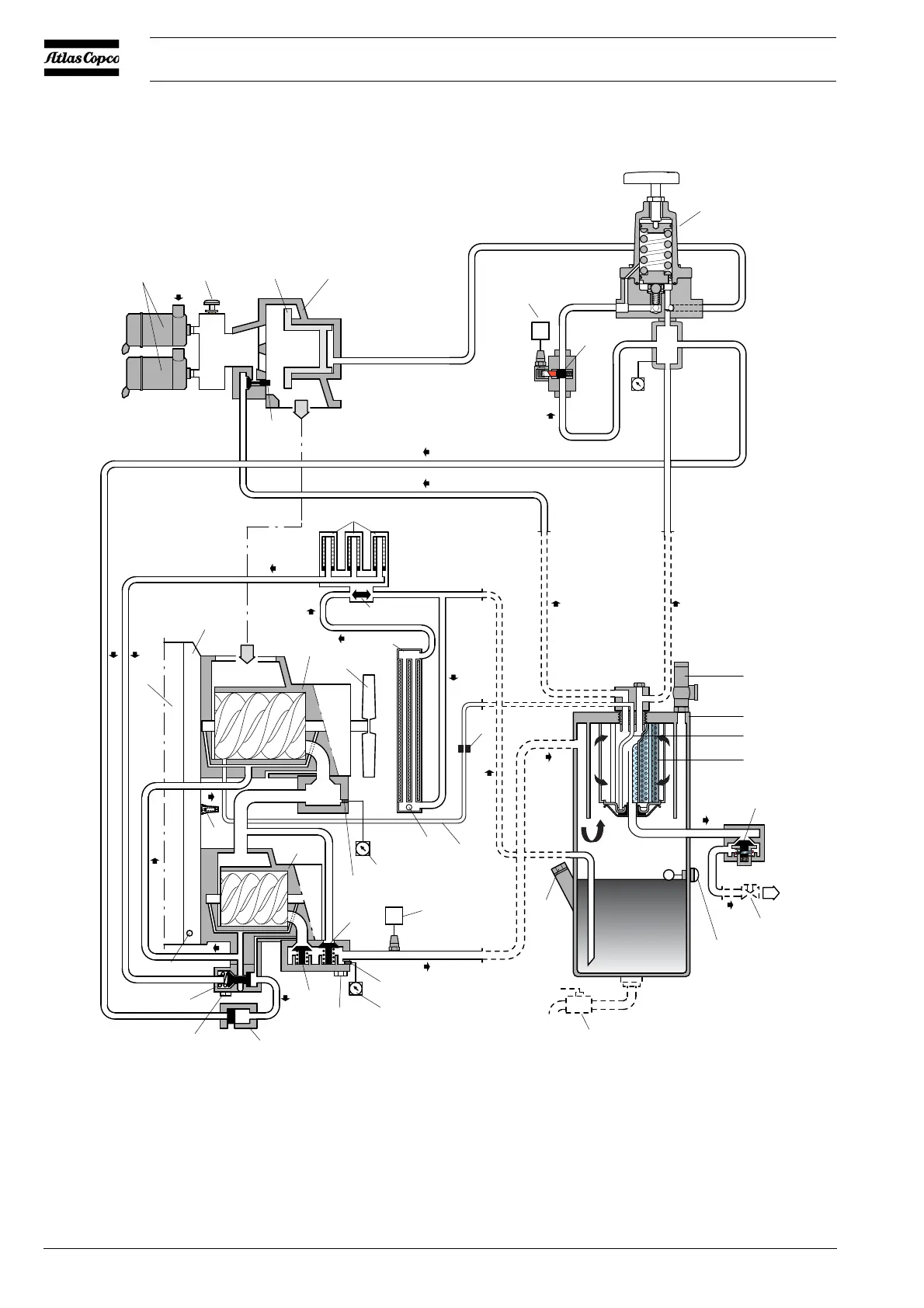

COMPRESSOR REGULATING SYSTEM (LOAD CONDITION)
Fig. 2.3
AF Air filter
AOV Air outlet valve (local
installation)
AR Air receiver
BDV Blow-down valve
BOV Bleed-off valve
BV By-pass valve, HP compressor
element
CEH HP compressor element
CEL LP compressor element
CV Check valve
DP Drain plug
DV Drain valve
FFan
FP Filler plug (compressor oil)
FR Flow restrictor
GC Gear casing
LV Loading solenoid valve
MPV Minimum pressure valve
OC Oil cooler
OF Oil filter
OLG Oil level gauge
OS Oil separator
OSV Oil stop valve
OV Overpressure valve
PM Prime mover
PS
1
Maximum loading pressure
switch
PS
2
Minimum loading pressure
switch
RV Regulating valve
SL Scavenge line
SV Safety valve
TBV Thermostatic by-pass valve
TG
1
Temperature gauge, LP
compressor element
TG
2
Temperature gauge, HP
compressor element
TS
1
Temperature switch, LP
compressor element
TS
2
Temperature switch, HP
compressor element
TV Throttle valve
UA Unloader assembly
VIS Vacuum indicator switch
(PM)
(RV)
(GC)
(CEL)
(F)
(DP)
(OSV)
(DP)
(DP)
(CV)
(CEH)
(LV)
(TV)
(UA)
(BOV)
(OC)
(TBV)
(OF)
(BDV)
(OV)
(TS2)
(TG2)
(BV)
(VIS)
(PS1)
P
(SL)
(AF)
(DV)
(OS)
(AR)
(SL)
(AOV)
(MPV)
(SV)
(OLG)
(FP)
(DP)
(TG1)
(TS1)
(PS2)
P
(FR)
