Operator’s instructions
4. Control
46
Table: Rear control panel, operating controls

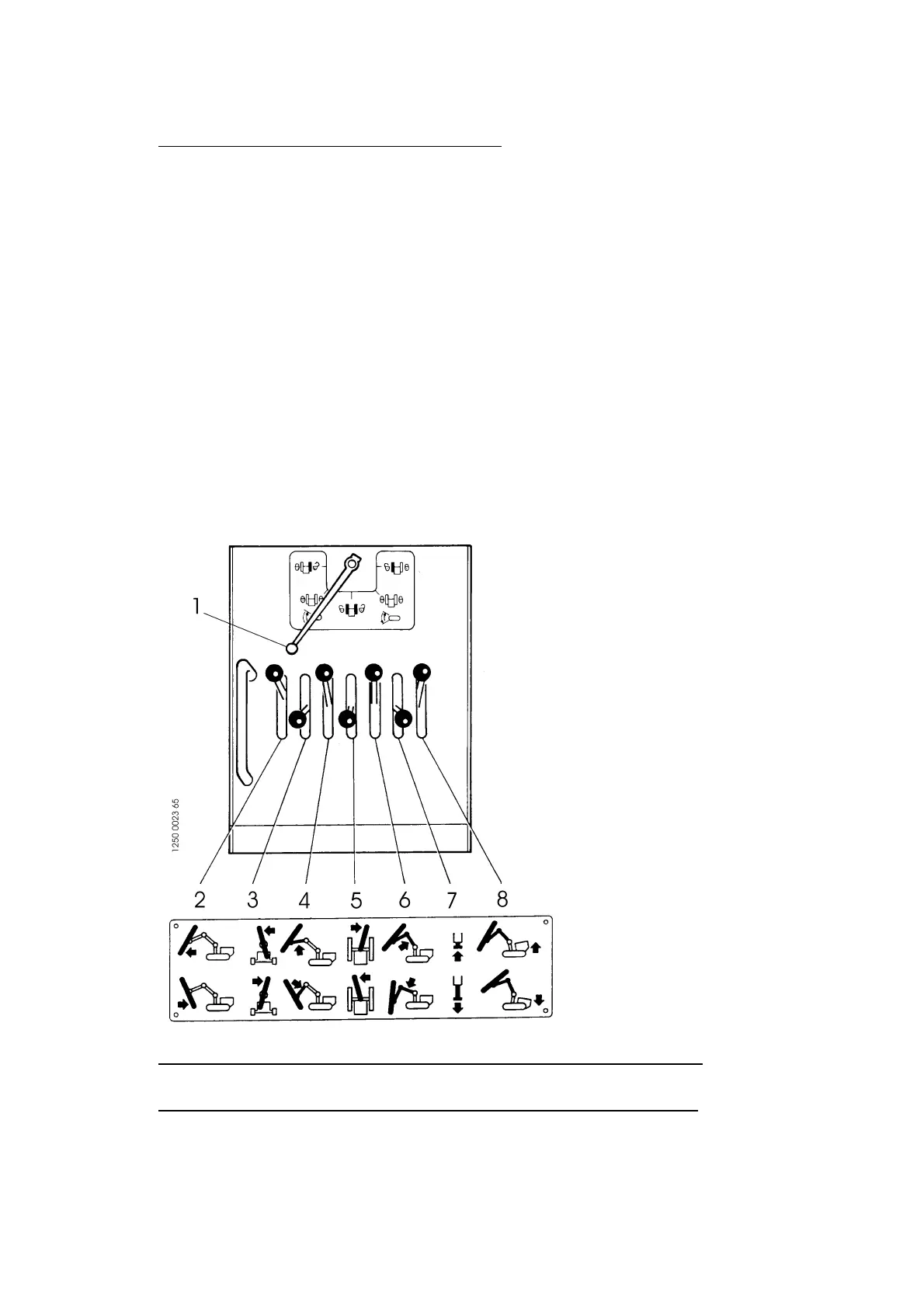

Figure: Rear control panel, controls for track oscillation and positioning
Table: Rear control panel, controls for track oscillation and positioning
1Knob, propulsion speed (changes volume to traction motors)
clockwise=fast
anticlockwise=slow
2Operating controls (left and right crawler tracks)
aFORWARD
bNEUTRAL
cREVERSE
3Winch controls
aWIND ON
cUNWIND
4Valve, winch pressure
clockwise=pressure increase
anticlockwise=pressure reduction
5Inclinometer
1Controls for track oscillation cylinders
aRIGHT CYLINDER OPEN
