Atlas Copco QAS 60 Pd User Manual

- 21 -
2.4.1.3 Qc4002™ MkII controller

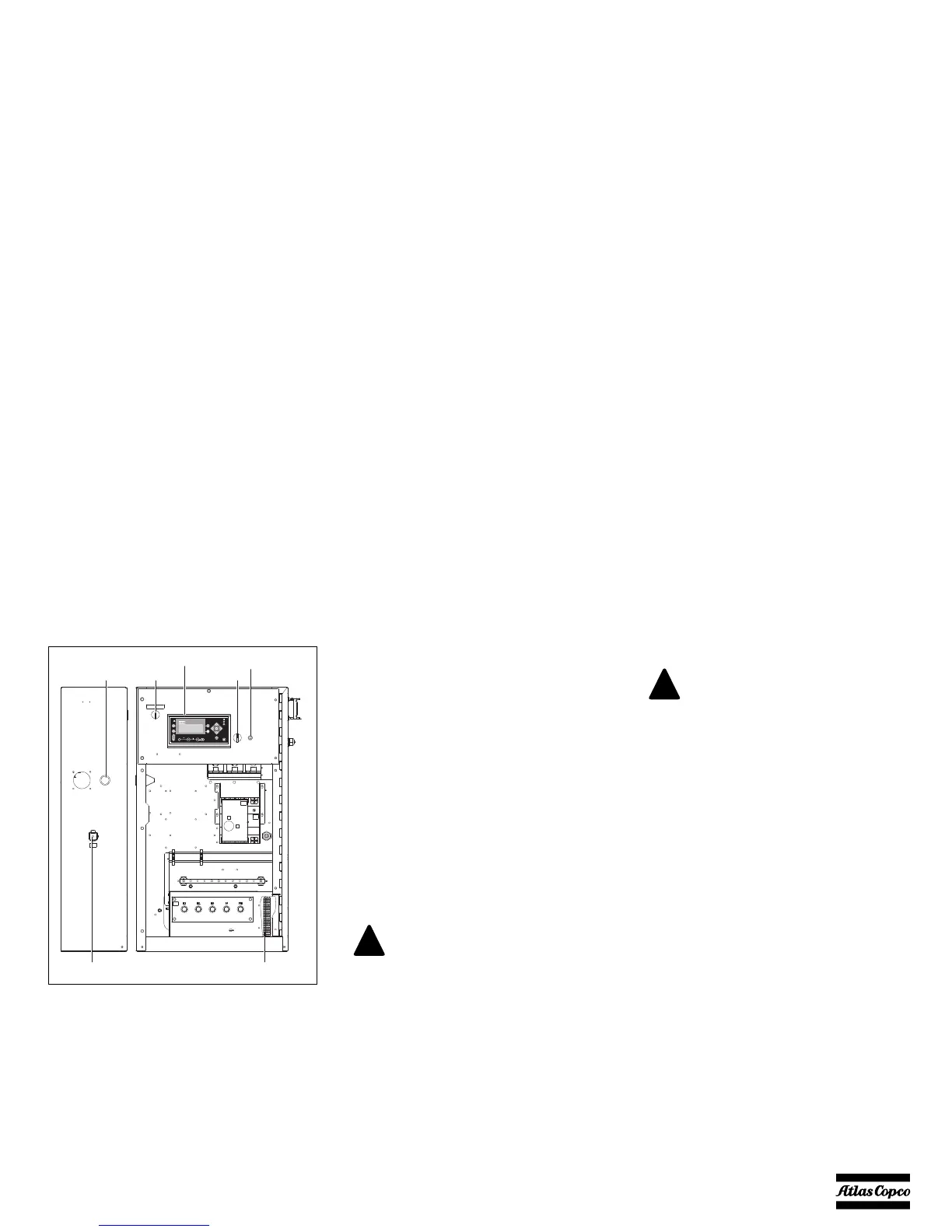

General description Qc4002™ MkII control panel
A2 .......Qc4002™ MkII display
F10......Fuse
The fuse (10 A) activates when the current
from the battery to the engine control circuit
exceeds its setting. The fuse can be reset by
pushing the button.
S2 .......Emergency stop button
Push the button to stop the generator in case
of an emergency. When the button is
pressed, it must be unlocked, before the
generator can be restarted. The emergency
stop button can be secured in the locked
position with the key, to avoid unauthorized
use.
S12 .....Frequency selector switch (50 Hz/
60 Hz)
Allows to choose the frequency of the output
voltage: 50 Hz or 60 Hz.
S20 .....ON/OFF switch
Position O: No voltage is applied to the
Qc4002™ MkII module, the generator will
not start.
Position I: Voltage is applied to the
Qc4002™ MkII module, it is possible to
start up the generator.
X25 .....Connection block
Inside the cubicle. Allows customer
connections.
X30 .....Connector X30
Connector for communication with other
generators with Qc4002™ MkII when
paralleling, both in ALS and PMS mode. An
adapter can be plugged in. See page 58.
T1
T2
T3
M3
Q1
X30
50Hz - 60Hz
X1
Qc4002
G
!
OK
LOG
S20
F10
S12S2
A2
X25X30
Changing the output frequency is
only allowed when the unit has
stopped.
!
Refer to circuit diagram for the
correct connection.
!
