Overhaul instructions

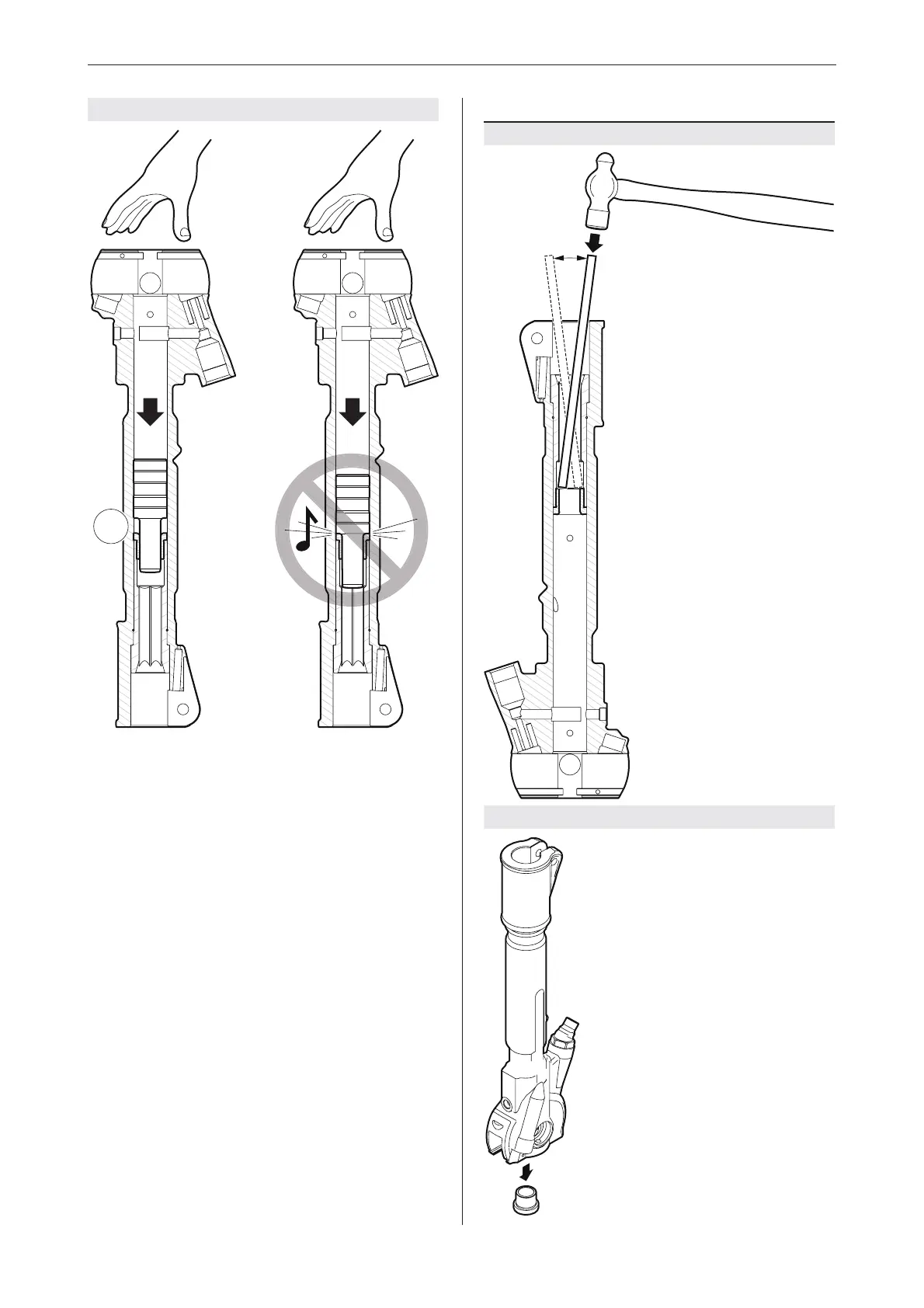

Checking the function of the piston
ok
Drop the piston into the cylinder. If there is
a contact sound between the piston and
the intermediate part, then replace the
intermediate part and proceed to point 2.
If there is no sound, then proceed with the
disassembly procedure.
Drop the piston into the cylinder again. If
there is still a contact sound, then replace
the piston.
Repeat the test. If there is still a sound, then
replace the cylinder.
1.
2.
3.
Intermediate part
1
2
