Overhaul instructions

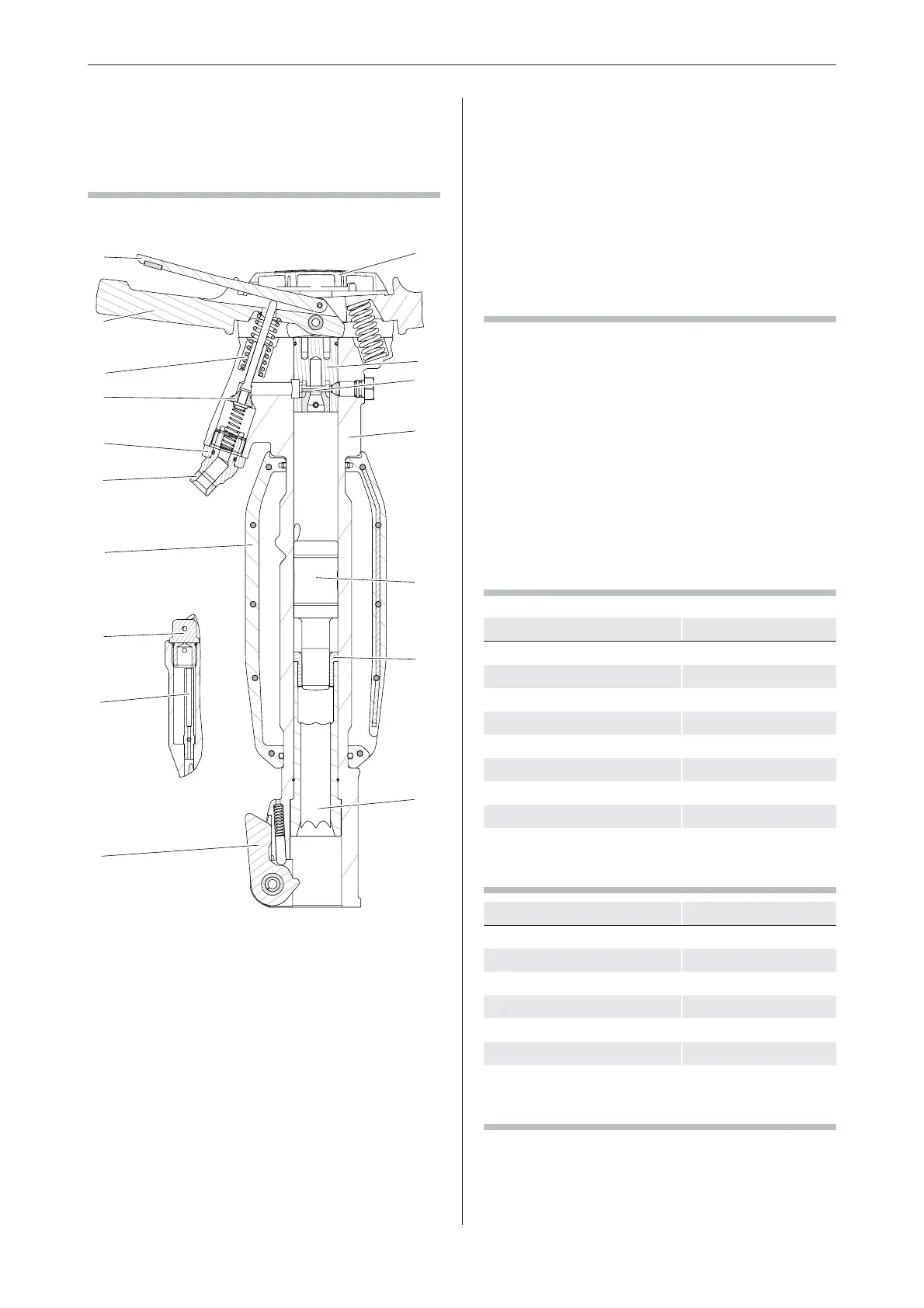

Machine overview
Main parts
For a complete overview of all parts see the Spare
parts list.
B
C
D
E
F
G
H
I
J
A
K
L
M
N
O
P
Q
Trigger
Handle
Spring (for vibration absorbing handle)
Inlet valve
Swivel nut
Swivel
Silencer
Oil plug
Dosing feeder
Tool retainer
Cover
A.
B.
C.
D.
E.
F.
G.
H.
I.
J.
K.
Valve housing
Main valve
Cylinder
Piston
Intermediate part
Tool chuck
Design and function
TEX PS/PE is a range of hand-held, pneumatic
breakers designed for medium to heavy demolition
of materials such as concrete, asphalt and
brickwork. The pneumatic breakers are designed
for vertical use. No other use is permitted.
Tools and media/
consumable
Standard tools
Tool Dimension
Mandrel 4 mm
Mandrel 15.8 mm
Allen key 8 mm
Socket 10 mm
Socket 14 mm
Socket 24 mm
Torque wrench 47–200 Nm
Open heavy duty spanner 41 mm
Special tools
Tool Ordering No.
Mandrel 3310 1543 00
Screw M8 -
Wood screw -
Gauge, Hex 25 3310 1509 25
Gauge, Hex 28 3310 1509 28
Gauge, Hex 32 3310 1509 32
Media / Consumable
Machine oil
Loctite® 243™. (Loctite 243 are registered
trademarks of Henkel KGaA, its subsidiaries,
affiliates, or licensors.
L.
M.
N.
O.
P.
Q.
z
z
