OIL LEVEL CHECK
CHECK ENGINE OIL LEVEL
Also consult the Engine Operation Manual for the oil
specifications, viscosity recommendations and oil
change intervals.
For intervals, see Preventive maintenance schedule
for the compressor.
Check engine oil level according to the instructions in
the Engine Operation Manual and if necessary top up
with oil.

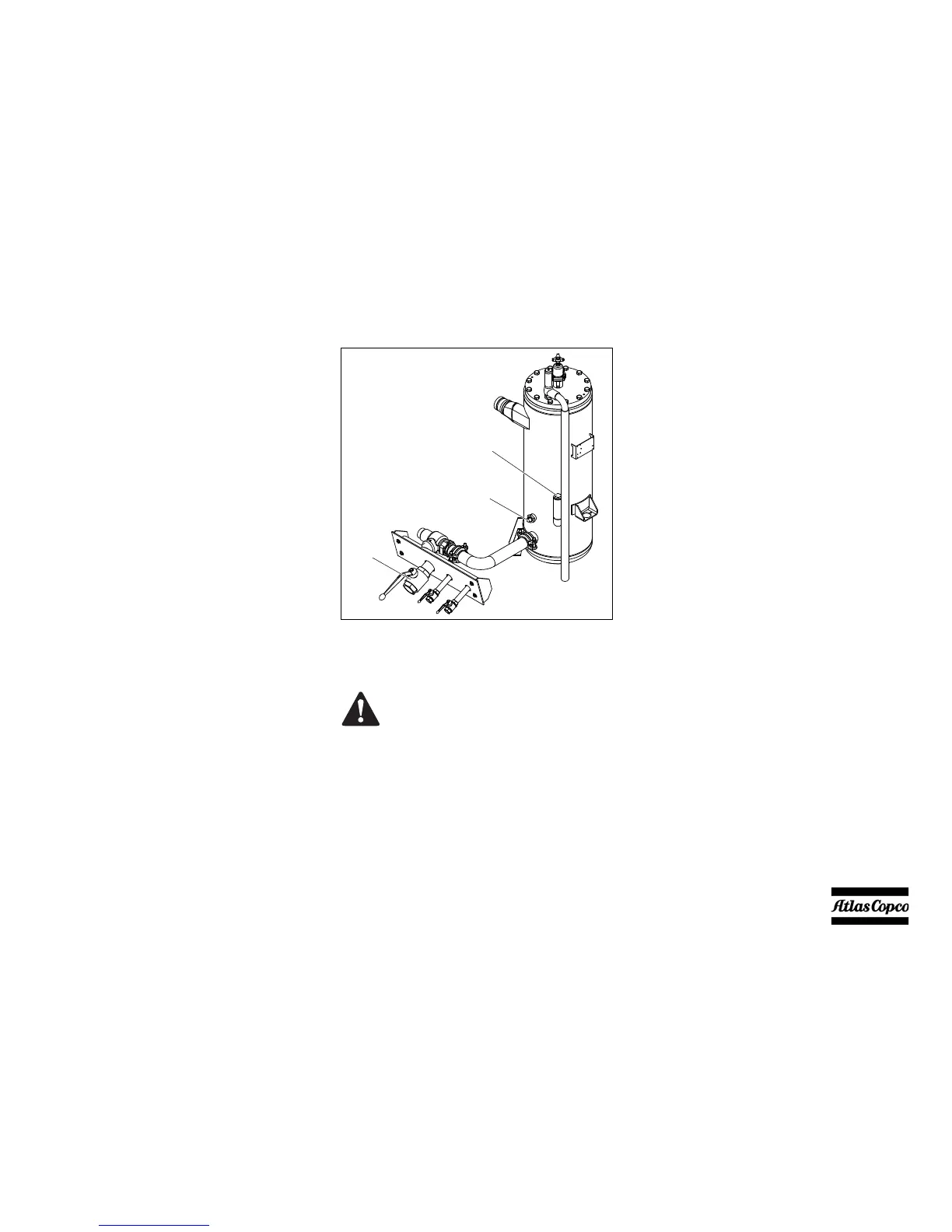

CHECK COMPRESSOR OIL LEVEL
With the unit standing horizontal, check the level of
the compressor oil. The pointer of the oil level gauge
(1) must register in the upper extremity of the green
range. Add oil if necessary.
Before removing the oil filler plug (2),
ensure that the pressure is released by
opening an air outlet valve (3).
(1)
(3)
(2)
