5.2 Air filters engine / compressor

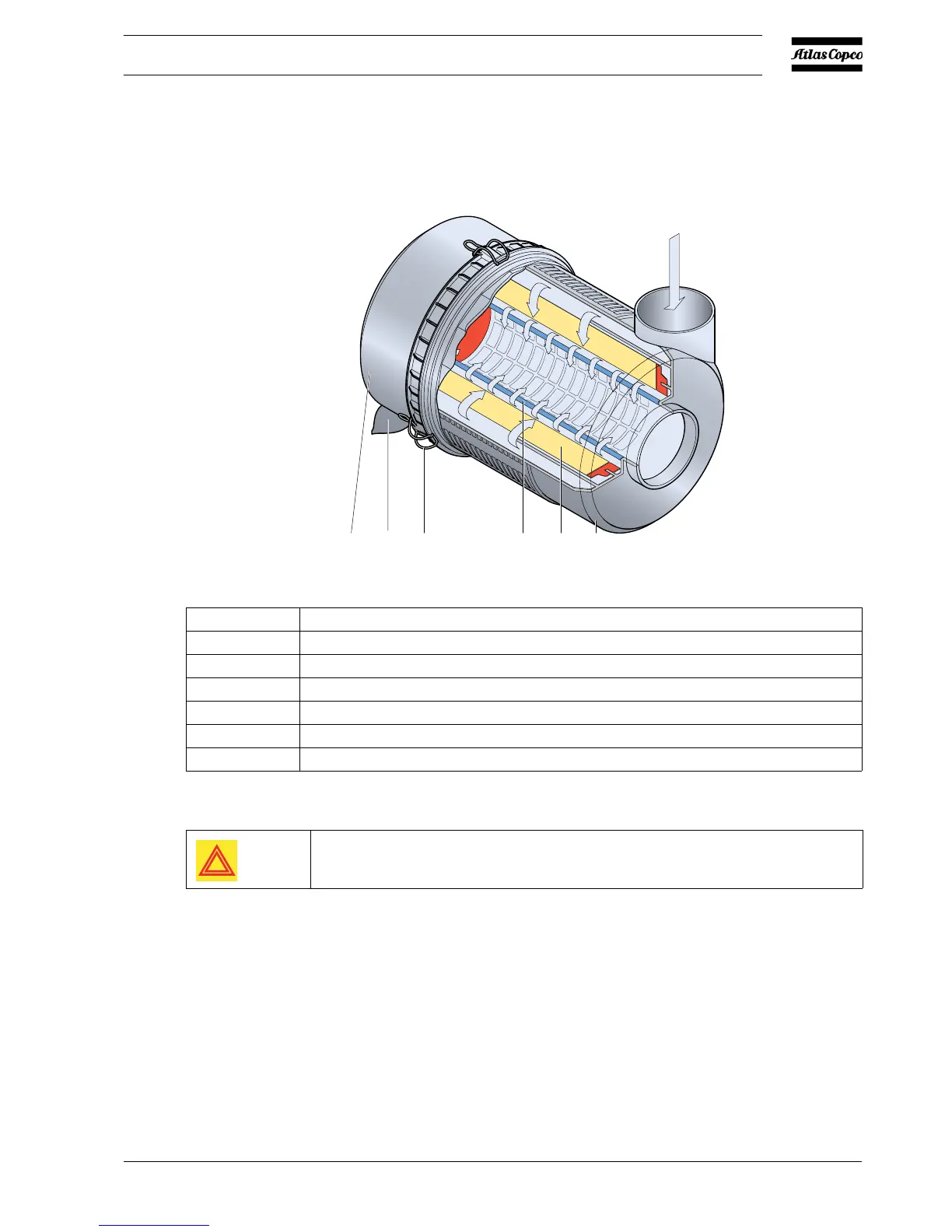

5.2.1 Main parts
Air filter
5.2.2 Cleaning the dust trap
To remove dust from the dust trap pinch the vacuator valve (6) several times.
(6) (1)(2) (3) (4) (5)
Reference Name
1 Snap clips (4x)
2Dust trap cover
3 Safety cartridge
4 Filter element
5 Filter housing
6Vacuator valve
The Atlas Copco air filters are specially designed for the application. The use of
non-genuine air filters may lead to severe damage of the engine and/or
compressor elements.
