Situation Description
A Flat DIN flanges prevent damage of the rubber sealings.
B Collared flanges prevent premature wear.
C Add a flat sealing or if necessary a metal disc with flat seal in case of damage risk.
D Avoid excessive torque to prevent damage to the bended pipes or the sealings.
E
Rubber sealings will get damaged when the inner pipe diameter exceeds the inner sealing
diameter.
F Rough pipe ends will damage the rubber sealing.
G Avoid contact between the pipe end and the rubber sealing.

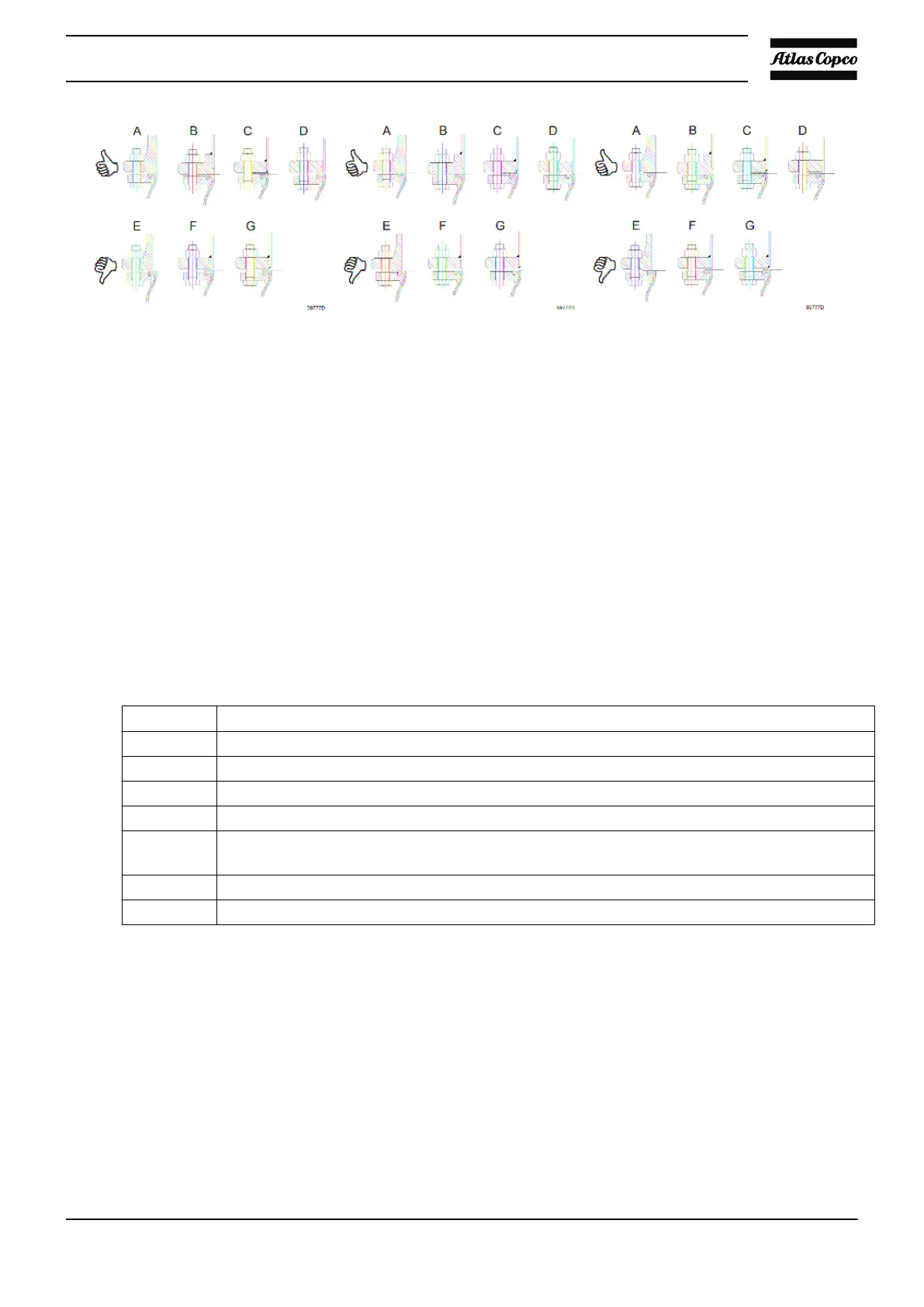

Refer to the pictures below for a visual overview of 5 do's and don'ts when installing rubber compensators:
