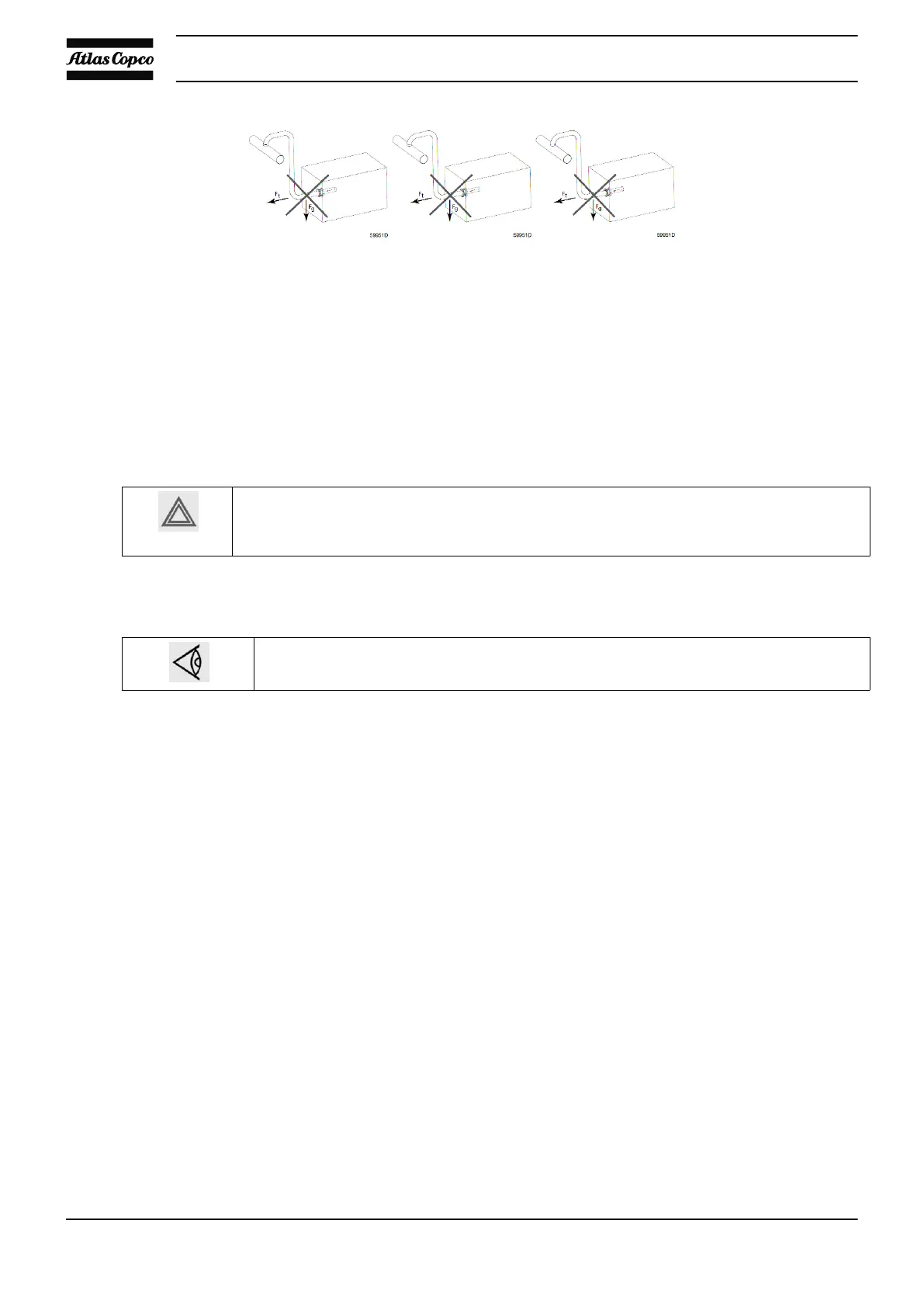

The compensator loads (F
g
and F
t
) that are mentioned on the drawing are strictly forbidden:
• Weight loads F
g
• Thrust forces F
t
For the design of piping and supporting structures, use an approved standard code (e.g. EN 13480 or
ASME 16.5/B31.3).
Mind that the connected pipe at customer side does not create any flow restriction
caused by e.g. section reduction.
While installing the compensator, please mind the following check points to avoid sealing damage.
Instruction book
210 2920 1815 04
