Operators Manual ATLAS CARTS
19
S E C T I O N
3
Operators Manual ATLAS CARTS

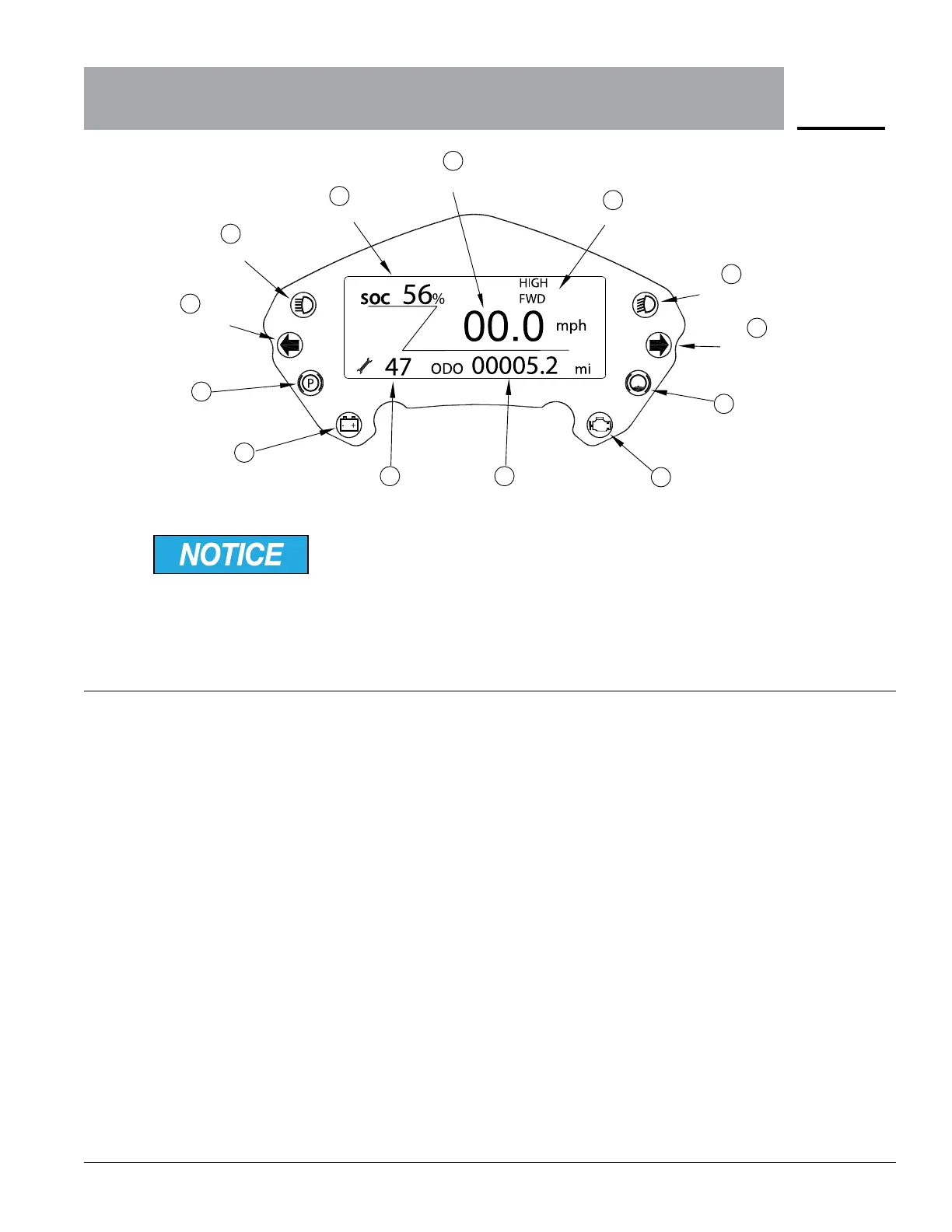

Steering Column Display
The Speedometer is an important tool to understanding your vehicle operation.
When the vehicle has an electrical or mechanical malfunction, a beeping sound and
flashing maintenance icon (small service wrench) and error code will alert the driver
of the specific fault. The driver should immediately stop and arrange for the vehicle
to be serviced by their local authorized Atlas dealer.
Some versions of the display will indicate a maximum reading of 99% State of Charge.
This is due to the limitation of the display. When 99% is shown, the vehicle is actually
at 100% state of charge.
Forward and reverse
Real-time speed
Turn signal
indicator
Low beams
State of Charge
Total mileage Motor fault light
Hydraulic oil
level indicator
Error code
1
High beams
Turn signal
indicator
Parking lights
Low voltage
warning light
2
3
4
5
6
7
8
9
10
11
5
4
1 Error Code Alerts driver of a vehicle malfunction. As soon as safe to do so, park vehicle in safe
location and contact your authorized Atlas dealership.
2 Low Voltage Warning Alerts driver of a low battery voltage occurrence. Vehicle must be charged as soon
as possible to avoid damaging electrical components.
3 Parking Lights Alerts driver that parking brake is engaged.
4 Turn Signal indicators Alerts driver that turn signal is on.
5 High/Low Beams Alerts driver headlights are on. Green indicator on right side is for low beams,
blue indicator on left is for high beams.
6 Real time State of Charge (SOC) Alerts driver of the available battery state of charge percentage.
7 Real time Speed Alerts driver of current ground speed..
8 Forward/Reverse Alerts driver of position of direction selector switch.
9 Hydraulic Oil Level Alerts driver of low hydraulic oil level. As soon as safe to do so, park vehicle in safe
location and contact your authorized Atlas dealership.
10 Motor Fault Alerts driver of vehicle malfunction. As soon as safe to do so, park vehicle in safe
location and contact your authorized Atlas dealership.
11 Total Mileage Alerts driver of total vehicle miles driven.
