Lifting the Vehicle Rear
Follow the same safety precautions as shown at the top of page 27.
Position the jack and jack stands only as shown in the illustration below.
Lifting the Rear of the Vehicle
• DisablethevehiclebyturningthekeytoOFF position.
• Useajackstandandjackstandsratedforthevehicleweight..
1. Place chocks against front wheels as required to prevent unintended
vehicle movement
2. Place the jack at the center of the lifting point on the vehicle axle
as shown in the illustration below.
3. Lift the vehicle.
4. Place jack stands under the frame at the points shown for each side
of the vehicle.
5. Lower the vehicle until the vehicle is securely supported by the jack stands.
Lowering the Rear of the Vehicle
1. Place the jack at the center of the lifting point on the vehicle axle
as shown in the illustration below.
2. Lift the vehicle until the jack stands are clear.
3. Remove the jack stands. (DO NOT GET UNDER VEHICLE AT THIS POINT)
4. Lower the vehicle and remove jack.
5. Remove all wheel chocks.

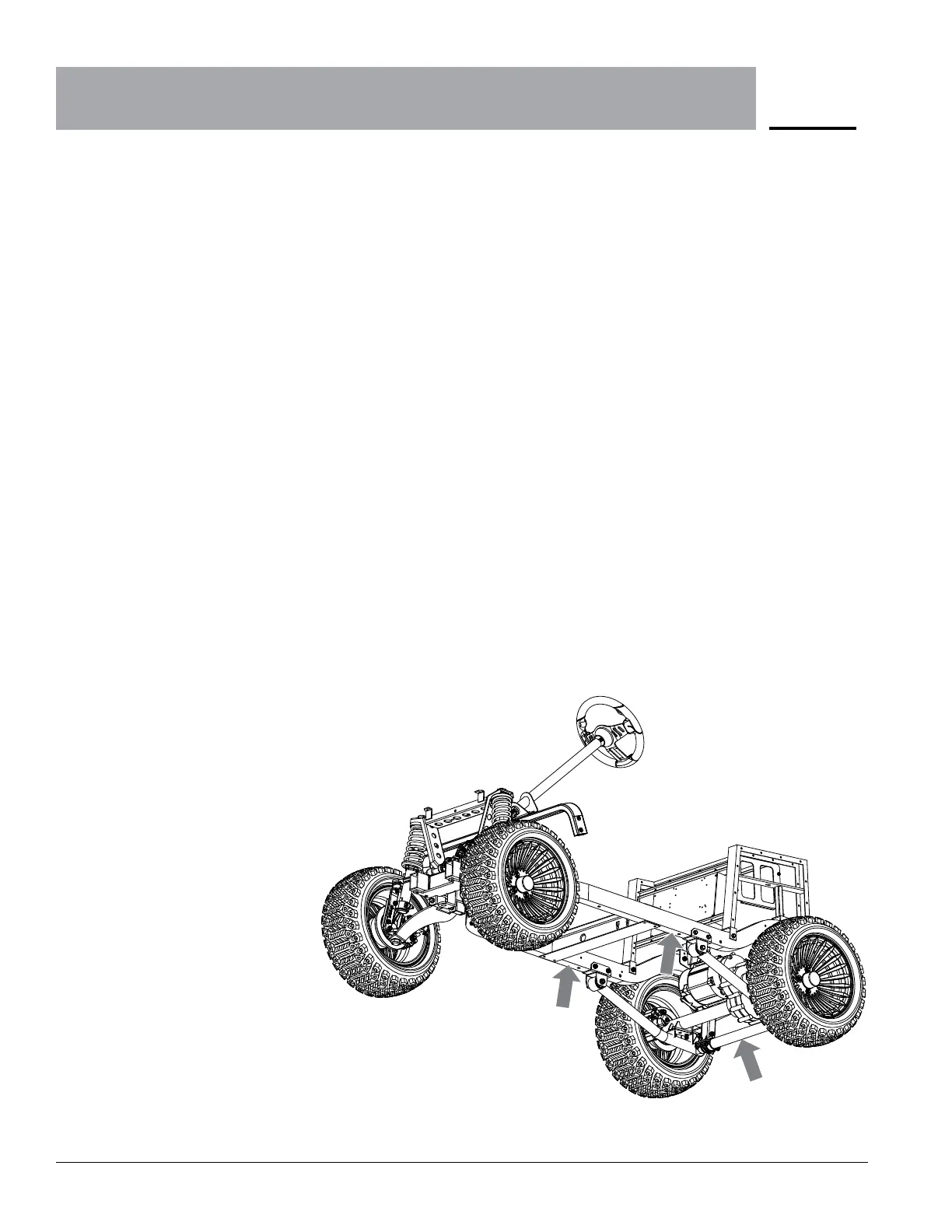

Jack stand
Jacking Point
for Floor Jack
