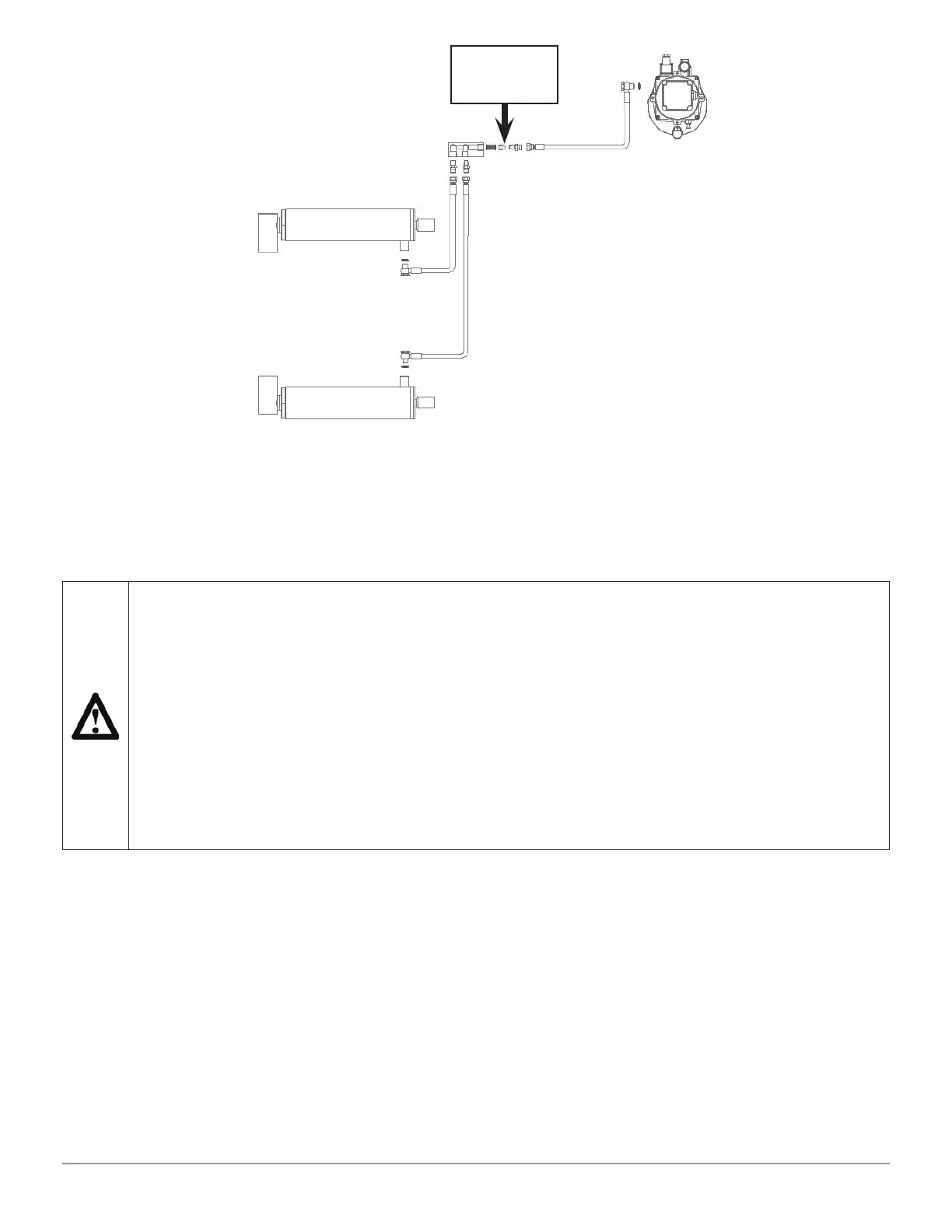

Figure 13 – Hydraulic Connections
7.4 Make The Electrical Hookup To Hydraulic Power Unit
The hookup work must be carried out by a qualifi ed electrician.
Make sure that the power supply is right.
Make sure the connection of the phases is right. Improper
electrical hook-up can damage motor and will not be covered
under warranty.
DO NOT run the hydraulic unit with no oil. Damage to pump can
occur.
The power unit must be kept dry.
• Make the electric hookup to the power unit referring to the attached the
electric diagram fi gure 5 using the included electric cable.
• Make sure the connection of the phases is right and lift is grounded.
Flow
restrictor
To Next Page
