Atlas SUNTEST XLS+ User Manual

Operating manual SUNTEST XLS / XLS+
- 10 -
!
Covering hood
"
Rotary switch for setting the irradiance
#
Xenon lamp operating hour meter
$
Switch for Xenon lamp
%
ON (I) / OFF (O) switch
&
Test chamber door

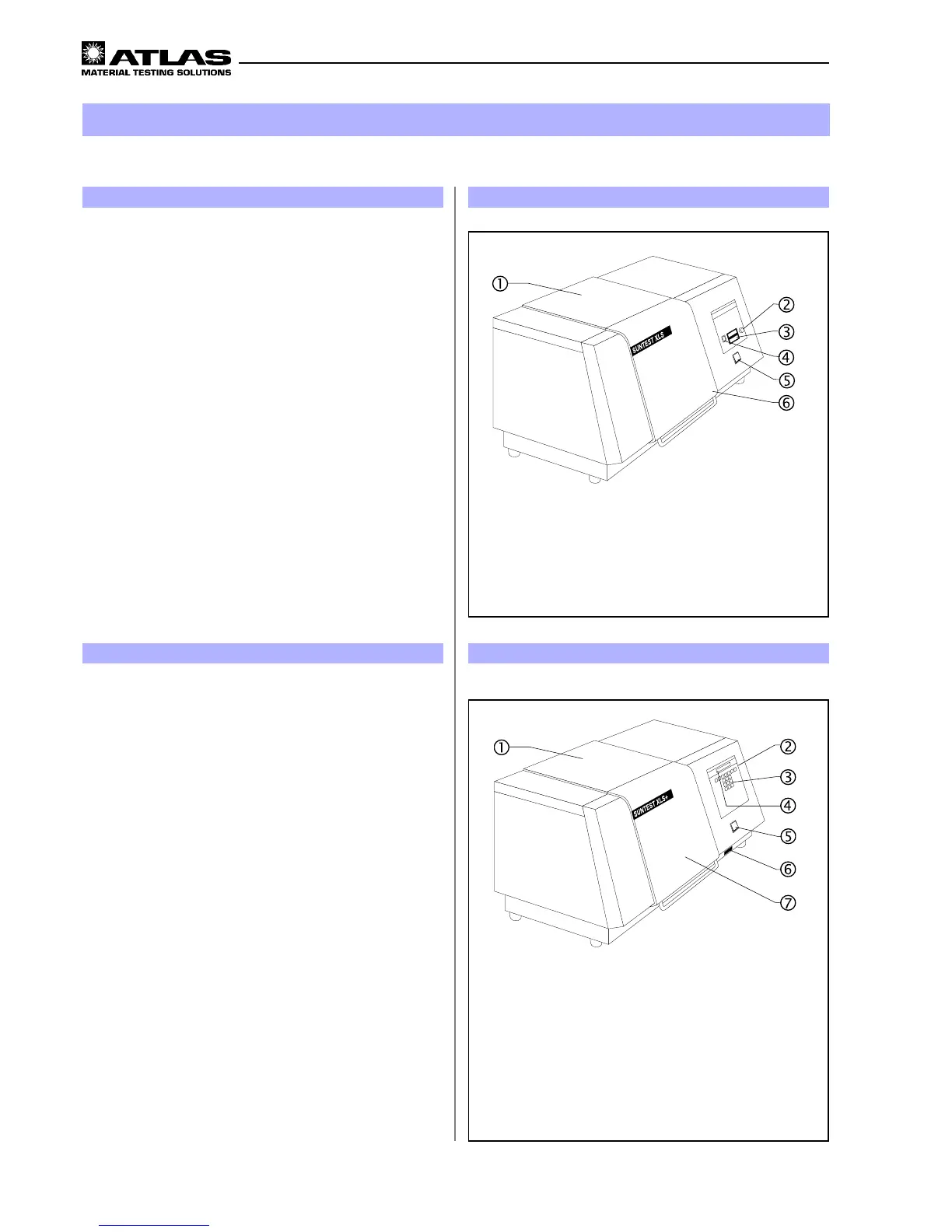

Figure 1
3
Description of equipment
Figure 2
!
Covering hood
"
Control panel
#
Numeric keypad
$
Display
%
ON (I) / OFF (O) Switch
&
RS 232 port for data transfer to a PC
'
Test chamber door
3.1 Description of SUNTEST XLS
SUNTEST XLS facilitates manual running of the testing
programs. The irradiance that has been set is controlled
at a constant value throughout the test duration.
Upper side of the equipment:
• Covering hood
!
of the assembly compartment for
the lamp and filter system.
Front side of the equipment:
• Rotary switch
"
for setting the irradiance,
• Xenon lamp operating hour meter
#
,
• ON/OFF switch
$
for Xenon lamp,
• ON (I) / OFF (O) switch
%
,
• Test chamber door
&
.
3.2 Description of SUNTEST XLS+
SUNTEST XLS+ is equipped with a microprocessor-ba-
sed controller for measurement and regulation and works
with software-controlled testing programs.
Upper side of the equipment:
• Covering hood
!
of the assembly compartment for
the Xenon lamp and filtering system.
Front side of the equipment SUNTEST XLS+:
• Control panel
"
with
• Numeric keypad
#
and
• Display
$
,
• ON (I) / OFF (O) switch
%
,
• RS 232 port
&
for data transfer to a PC or printer,
• Test chamber door
'
.
