Atlas SUNTEST XLS+ - Mounting the Sample Table

Operating manual SUNTEST XLS / XLS+
- 18 -
6
Commissioning
6.1 Mount the sample table
WARNING - UV-radiation being emitted:
If the sample table is not used, UV-radiation is emit-
ted on the lower side of the equipment and can re-
sult in damage to the skin and the retina.
The sample table should always be used when the
equipment is running!
1. Open the sample table door
!
with the handle
"
.
2. Mount the sample table
#
in such a way that the sen-
sor receptacle
$)
for the black standard sensor is at
the test chamber door
!
.
3. Insert the black standard sensor
%
in the sensor lo-
cator
$
.

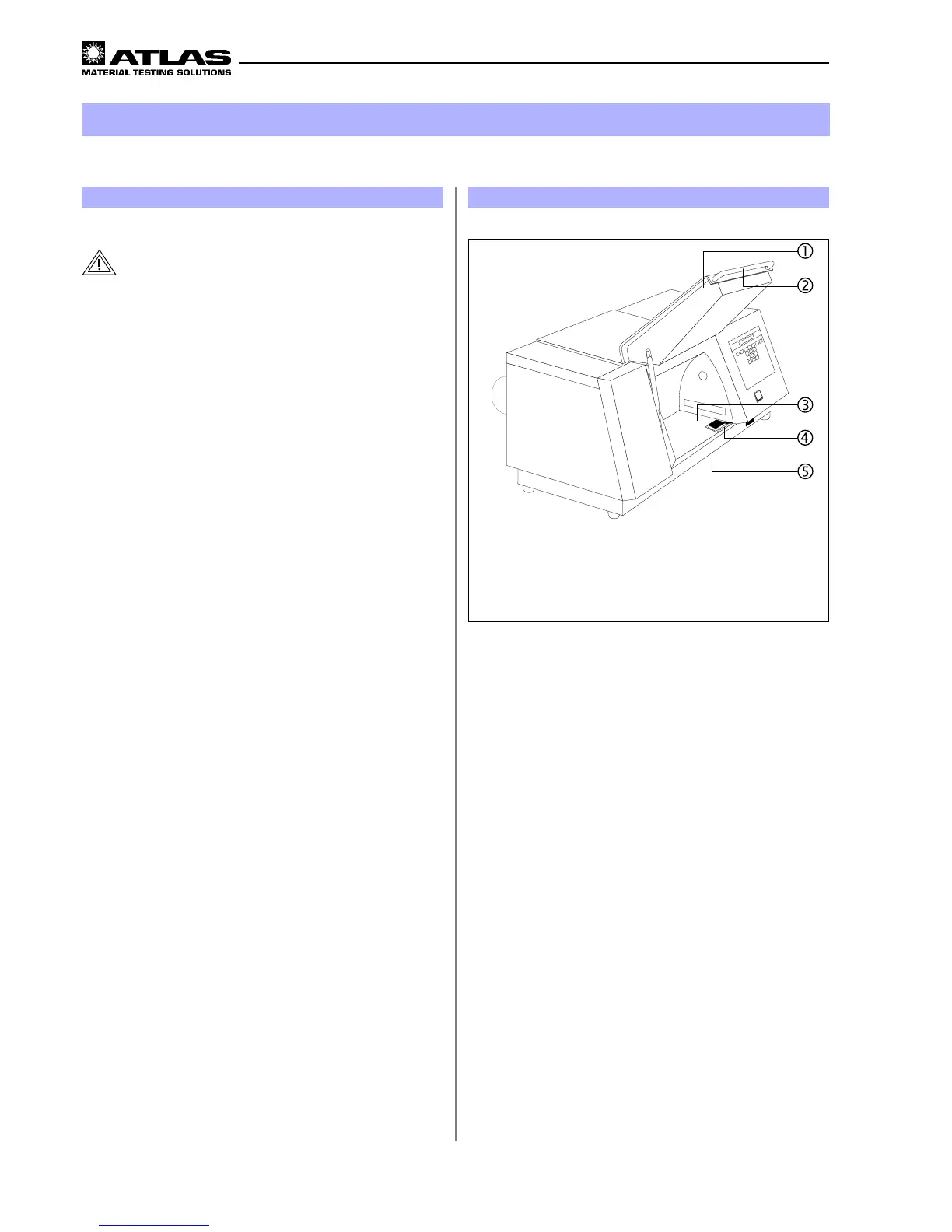

Figure 10
!
Test chamber door
"
Handle
#
Sample table
$
Sensor receptacle for the black standard sensor
%
Black standard sensor
