ATmega48A/PA/88A/PA/168A/PA/328/P

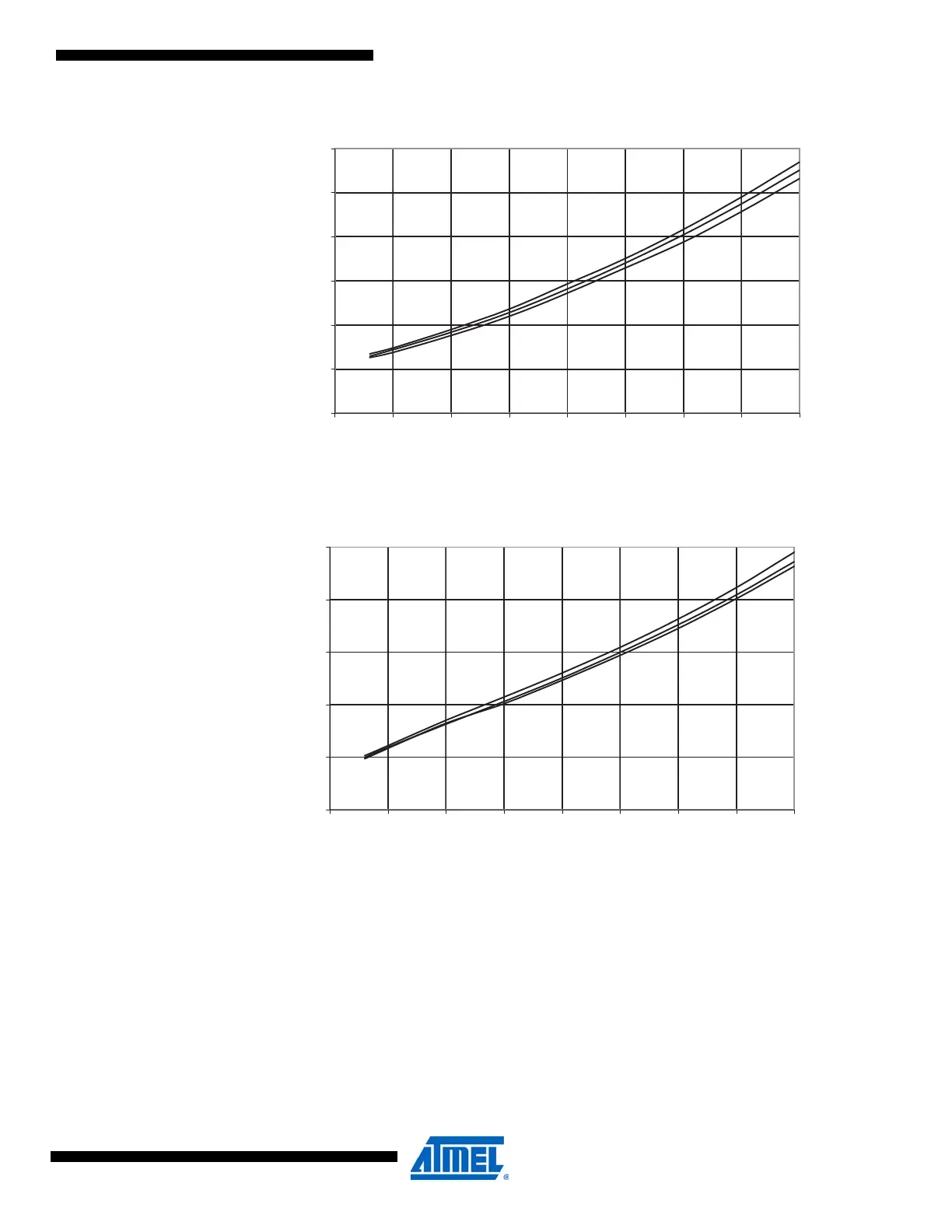

Figure 30-145.ATmega88PA: Active Supply Current vs. V
CC
(Internal RC Oscillator, 1MHz)
Figure 30-146.ATmega88PA: Active Supply Current vs. V
CC
(Internal RC Oscillator, 8MHz)
85 °C
25 °C
-40 °C
0
0.2
0.4
0.6
0.8
1
1.2
1.5 2 2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I
CC
(mA)
85 °C
25 °C
-40 °C
0
1
2
3
4
5
1.5 2 2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I
CC
(mA)
